SOLAR BROTHER KIT SOLAR PANELS + CONTROLLER & THERMOSTAT SUNAÉRO

Solar heating with aerothermal panel from SOLAR BROTHER

SOLAR BROTHER is a French manufacturer of innovative products using solar energy to operate.

Lighter, solar oven, solar charger and now the solar heating , SOLAR BROTHER continuously offers new solutions to make your daily life more ecological and economical!

The SunAéro is an innovative solution allowing to reduce your energy consumption (electricity, gas or fuel oil) by about 35% thanks to the blown air increasing the room temperature by 3 to 5°C.

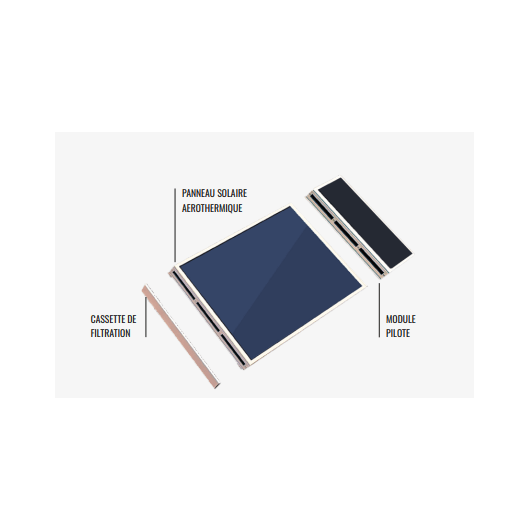

Both very economical and much more ecological than our traditional heating sources, the SunAéro consists of:

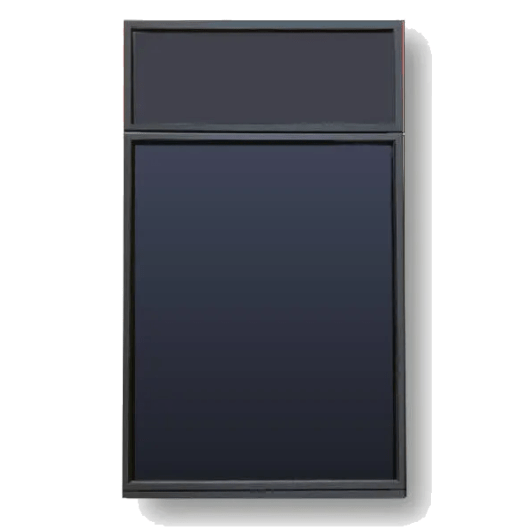

• an aerothermal solar panel of 600W creating a heating source
• a pilot module allowing to blow warm air into your interior and powered autonomously by a 32W photovoltaic panel (provided)
• a thermostat offering the possibility to control 2 modes: heating or drying (dehumidification) as well as to activate or deactivate the Wi-Fi mode

Double action, the solar heating from SOLAR BROTHER, besides heating your interior, is ideal for dehumidifying rooms and performing drying activities throughout the year such as dehydrating plants, fruits or vegetables for example, but also dehumidifying wood or drying your laundry.

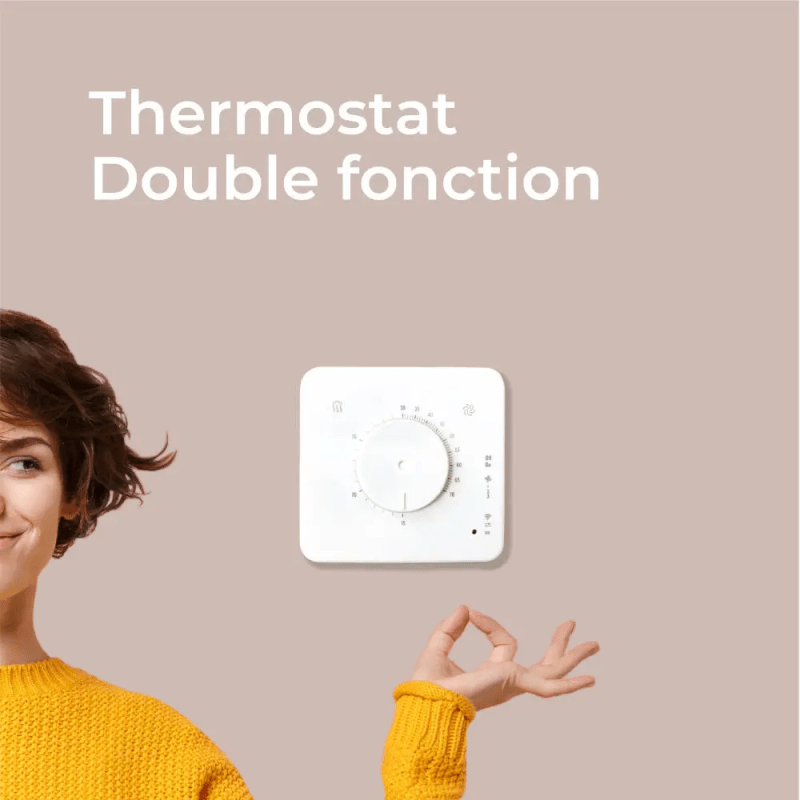

Its manual thermostat has hygrometric sensors and the possibility to control the ventilation at 3 speeds to precisely regulate the temperature and humidity level in the rooms.

A mobile application is available to monitor hygrometry and temperature data in real time and adjust settings remotely.

Is the air blown inside my mobile home or caravan healthy?

Yes!

Designed with an external air intake, a non-return valve and especially a filtration cassette, the SunAéro delivers healthy air inside your rooms.

How is the SunAéro from SOLAR BROTHER installed?

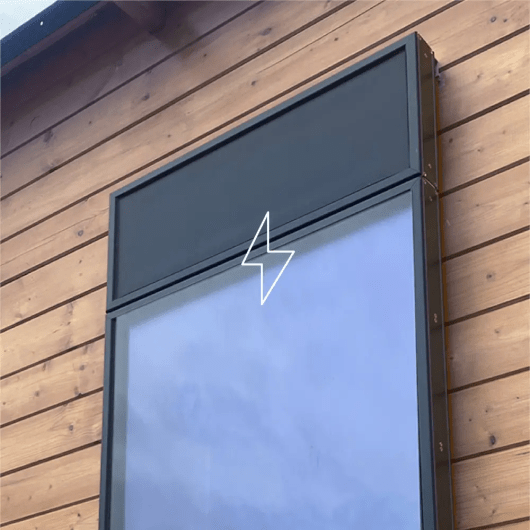

The SunAéro is installed on your facade of house, mobile home or on your caravan side wall thanks to a wall mount.

It can also be simply placed on the ground or on a flat roof thanks to an additional support (optional & coming soon).

The installation is then very simple!

After creating a 125 mm air inlet diameter in your facade, wall or side, just fix the mounting rail and slide the solar panel into the rail.

The pilot module and the photovoltaic panel are then added thanks to fixings linking the two solar panels.

Install your thermostat inside your home thanks to its cable connecting it to the pilot module.

The thermostat operates autonomously without connection thanks to the photovoltaic panel.

It can be plugged into a power outlet with a supplied adapter when you want to ventilate but there is no sun.

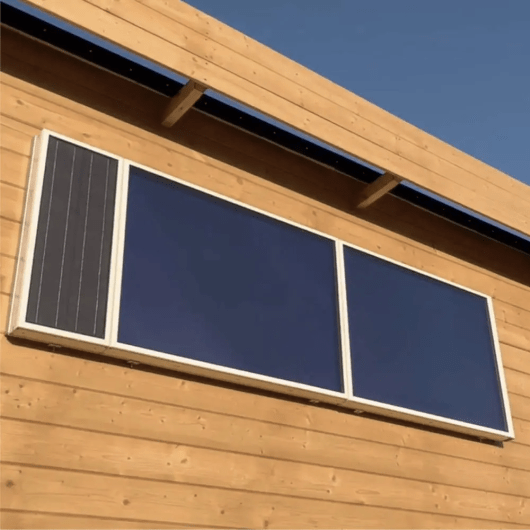

Modular, you have the possibility to add up to 3 aerothermal panels (optional, individually) to adapt the SunAéro to your home.

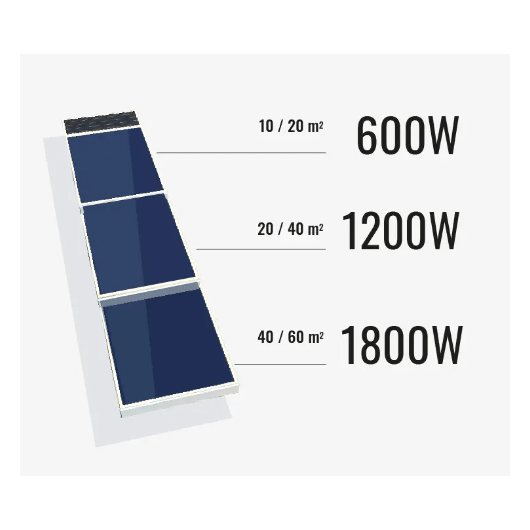

We recommend:

• 1 panel for 10 to 20m²
• 2 panels for 20 to 40 m²
• 3 panels for 40 to 60 m²

Technical characteristics of the SunAéro solar heating from SOLAR BROTHER

Aerothermal panel:

• Materials: Ultra Clear tempered glass, aluminum frame and plate, recyclable plastics
• Power: 600 W
• Production: 700 kWh/year
• Heating surface: 20m²
• Filtration cassette: 3D structure filter for optimal retention of dust, particles, pollen, etc.
• Dimensions: 103 x 76 x 7 cm
• Weight: 13 kg

Pilot module:

• Materials: aluminum and recyclable plastics
• Airflow: 120-200 m3/h
• Noise level: max 51 dB (at speed 3)
• Power supply: SunPower 32W IP65 solar panel (provided) and mains with a 12V/3A charger (provided)
• Photovoltaic panel efficiency: 80% of initial power
• Dimensions: 30 x 76 x 7 cm
• Weight: 7 kg

Thermostat:

• Control 2 modes: heating and drying with manual adjustment
• Control activation or deactivation of Wi-Fi mode (for mobile app)
• Power supply: SunPower 32W IP65 solar panel (provided) and mains with a 12V/3A charger (provided)
