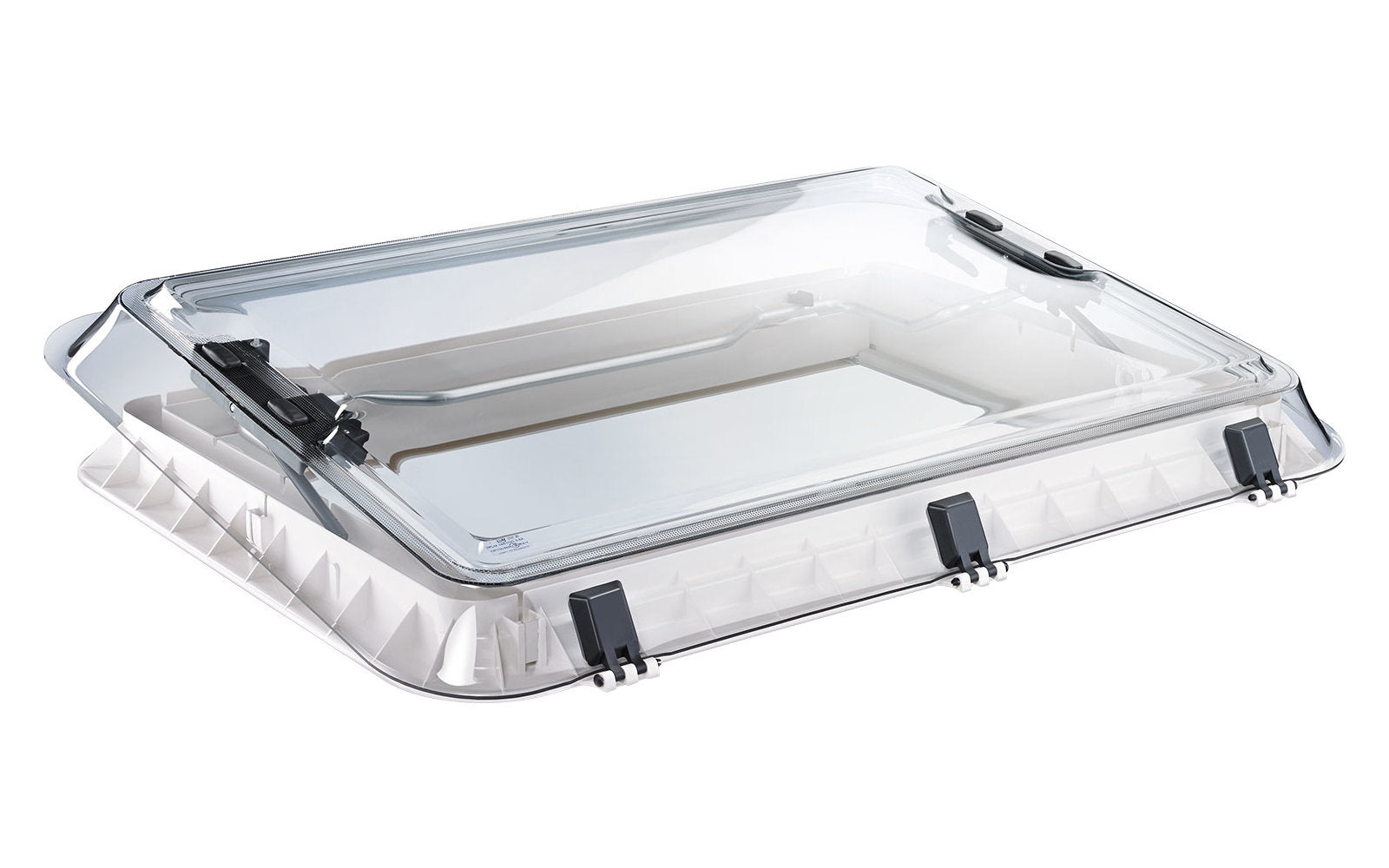

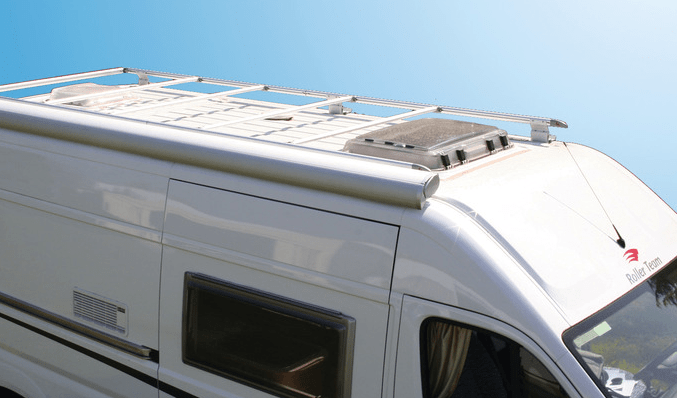

The Panorama LED Skylight 50 x 70 is a skylight that fits perfectly on motorhomes, caravans, as well as on the flat surface of panel vans.
Technical specifications:
- Double acrylic glazing 43-R (E-Mark - compatible with European approval)
- Installation on panel vans not requiring an adaptation frame (compatible with panelled walls)
- Model including permanent ventilation: permanent ventilation area 150 cm² (for VASP approval - certificate available)
- Cut-out dimensions: 50 x 70 cm
- Inner frame dimensions: 80 x 60 cm
- Suitable for most converted panel vans and roofs with a thickness of 25 to 75 mm

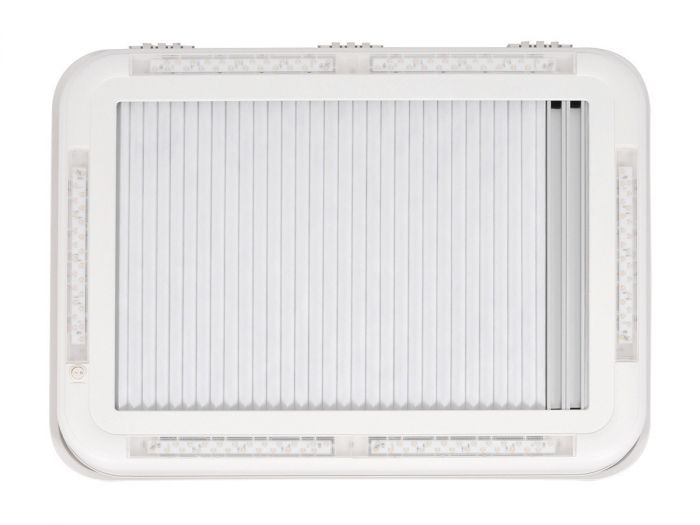

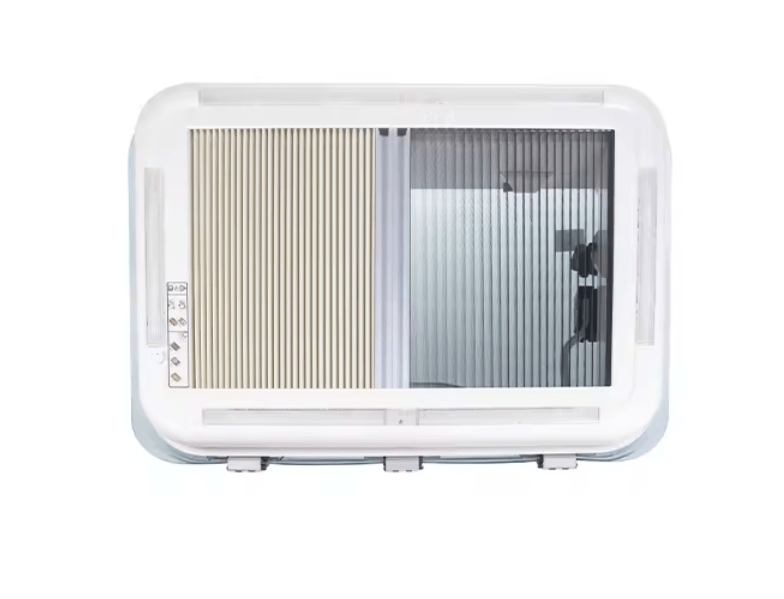

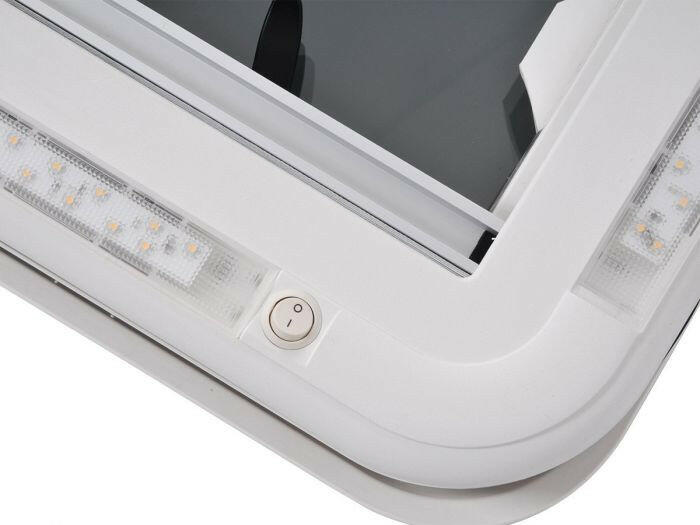

- Model including LED frame with blackout blind and mosquito net
-
Available glazing (all UV-resistant and ECE 43R approved):
- Clear
- Tinted grey
-
Delivered with an assembly manual and detailed step-by-step installation tutorial
- Average installation time: 45 minutes
-
Installation recommended with Sikaflex 552AT (alone or in the Sika Skylight pack for a watertight and durable installation)
-

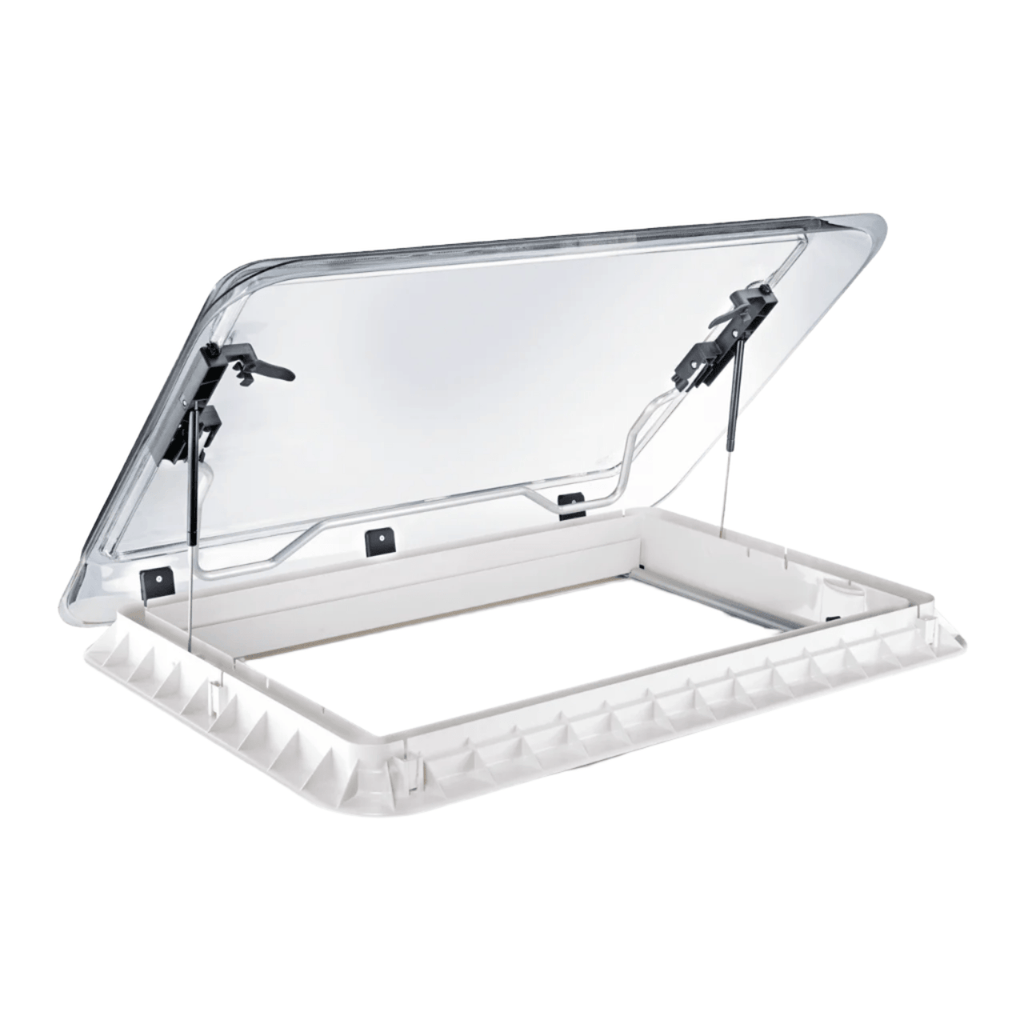

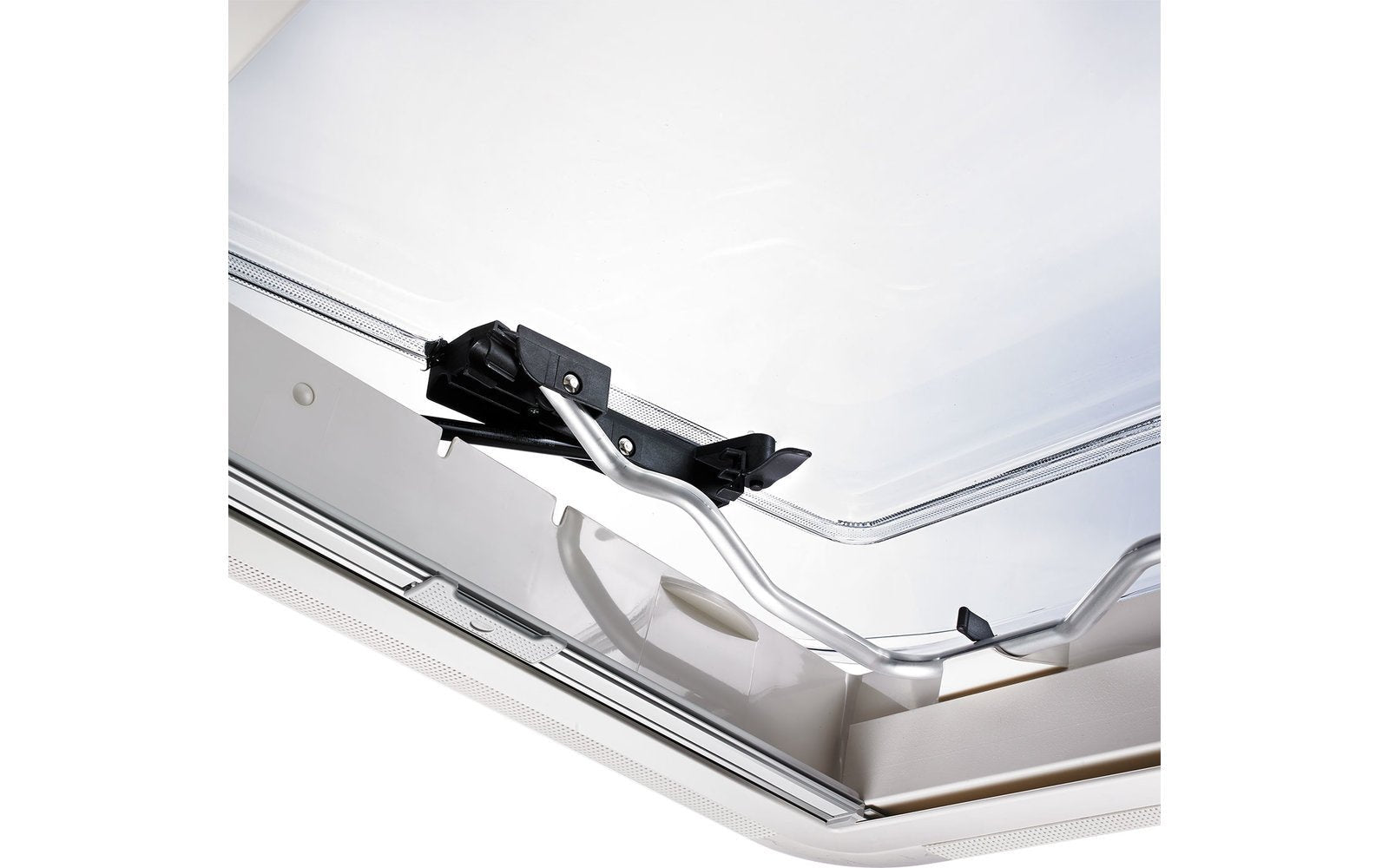

The skylight opens using an aluminium lifting arm. Two gas struts prevent any sudden closure to protect the glazing.
-

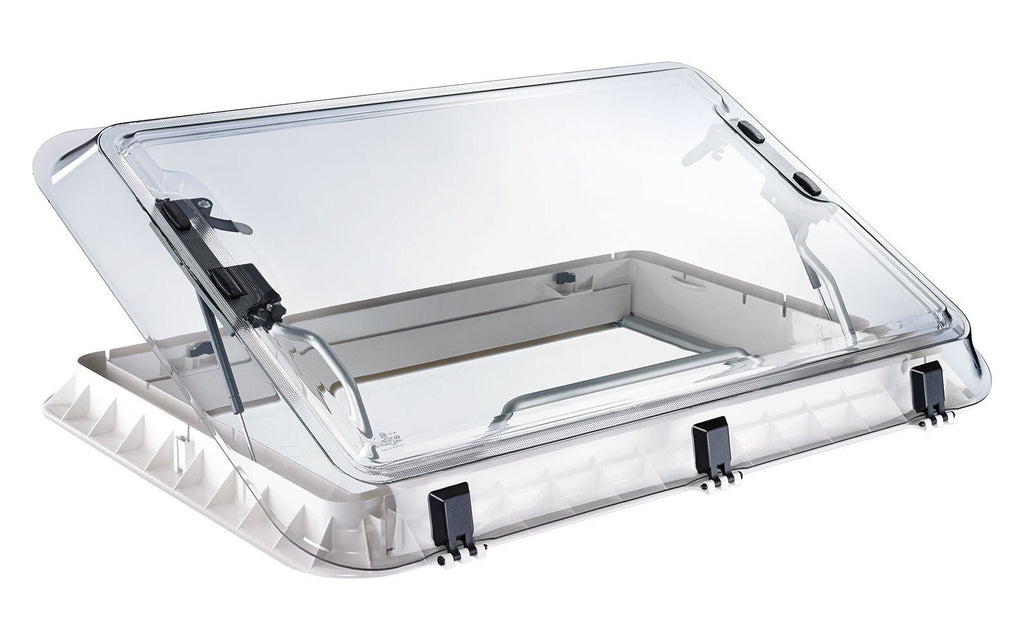

To ventilate your vehicle, you can lock the skylight in an intermediate ventilation position. Three possible opening levels:
-
Closed: Forced ventilation of 150 cm² (depending on the chosen model - recommended to maintain a slight continuous airflow and thus avoid mould problems in vehicles)
-
5°: Maximum speed: 130 km/h
-
55°: Maximum speed: 60 km/h
-
Packaging weight and dimensions: 11kg - 76*94*25 cm
Installation manual: Download
This product benefits from the Vanlife Store Successful Installation Guarantee: by following our installation instructions and the advice of our remote Technical Support, you are sure to successfully complete your installation.
Guarantee Covers:
- Vehicle Compatibility: As Vanlife Store specializes in all types of campervan conversions, our products are universal. Therefore, you benefit from the compatibility guarantee for this product for all types of vehicles (campervans, motorhomes, caravans).
- Successful Installation: By following our advice, you avoid the main risks associated with installing or replacing components on your campervan: risk of incompatibility, risk of water leaks, incorrect wiring sizing, etc.
- Certification: Products covered by the Successful Installation Guarantee are certified at a minimum in Europe, the United Kingdom, and Switzerland.
In addition to the successful installation guarantee, you benefit from a 2-year manufacturer's warranty on this product.
Delivery and returns
Delivery fees: Calculated at checkout. Delivery from €9.99 – and FREE for orders over €399.
-
Delivery 24–48h 🇪🇺 Europe: Shipping to France and Western Europe (Portugal, Spain, Italy, Greece, Germany, Netherlands, Belgium).
-
Delivery 🇬🇧 United Kingdom & 🇨🇭 Switzerland: Additional average delay of 24–48h due to customs procedures.
-
Returns: 30 days to exchange or return your products.
2-year product warranty
Are the windows compatible with camper vans?
Yes, the windows are compatible with all types of camper vans (with curved walls) and motorhomes (with flat walls). The vehicle’s curvature is compensated by the aluminium inner counter-frame, which adapts to the shape of the vehicle during installation (as shown in the supplied installation tutorial).
What does the frame refer to?
There is the structural fixing counter-frame, which is supplied with all windows.
There is also the finishing inner counter-frame (with blackout blind and mosquito net), which is available as an option on certain models.
What is the required cut-out size?
For all windows and roof vents, the stated dimensions correspond to the cut-out size in the vehicle wall.
For example, a 700x400 window requires a 700 mm x 400 mm opening.
The external window dimension is 3 cm larger (730x430 mm), and the external dimensions of the finishing inner frame (with blackout blind and mosquito net) are 8 cm larger (780x480 mm) compared to the cut-out size.
What is the difference between SHADE, SQUARE, LIGHT, SLIDE and SLIDE LIGHT windows?
The difference is mainly aesthetic.
The SHADE, SQUARE and LIGHT windows are all awning (top-hinged) windows.
SHADE and SQUARE feature tinted glazing (10% light transmission), while LIGHT features light grey glazing.
The frame shape also differs: SHADE and LIGHT have rounded corners, whereas SQUARE has rectangular edges.
All windows are compatible with vans.
Finally, the difference between SLIDE and SLIDE LIGHT is that SLIDE features tinted glazing (10% light transmission), while SLIDE LIGHT features light grey glazing.
Is it easier to install a window with rectangular edges?
The installation procedure for rectangular-edge windows (awning or sliding) is exactly the same as for rounded-edge windows.
