Technical Specifications

• Universal compatibility: Campervans (curved wall) and Motorhomes (flat wall)

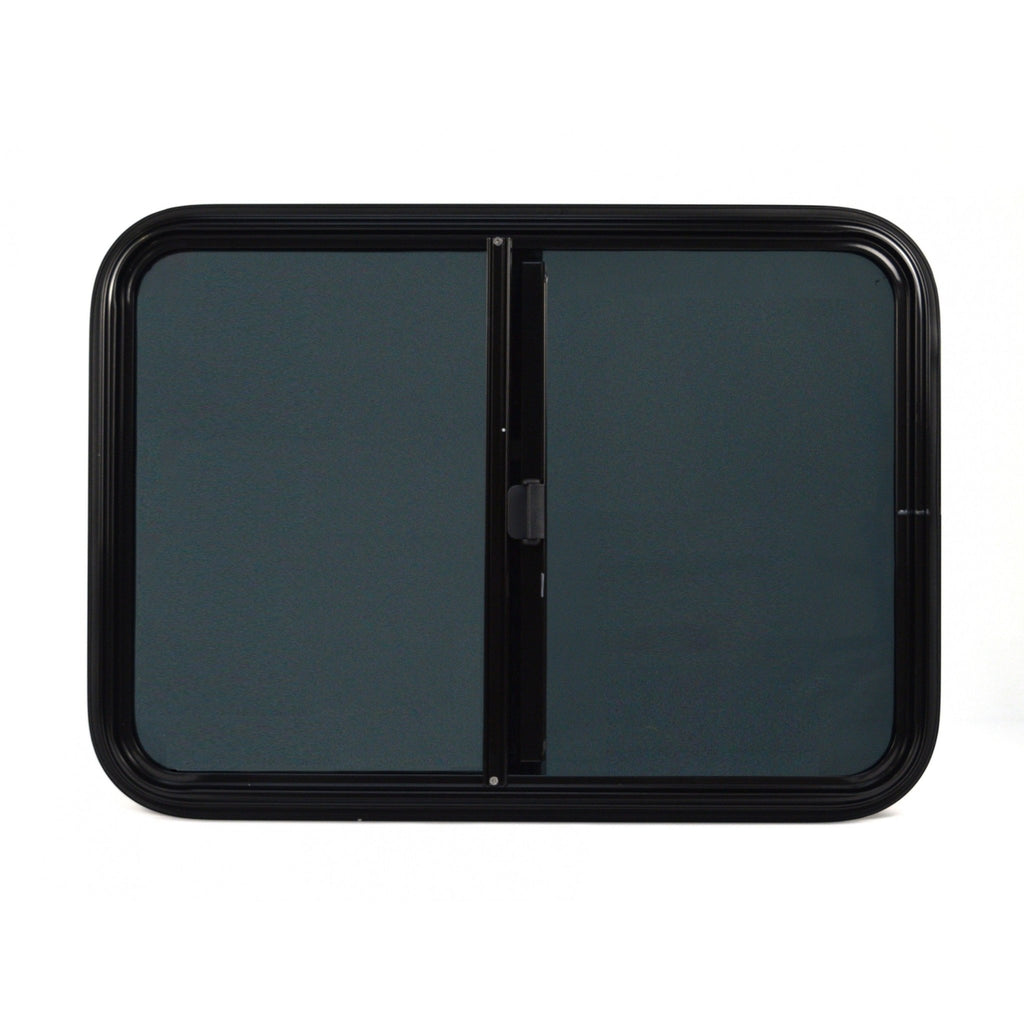

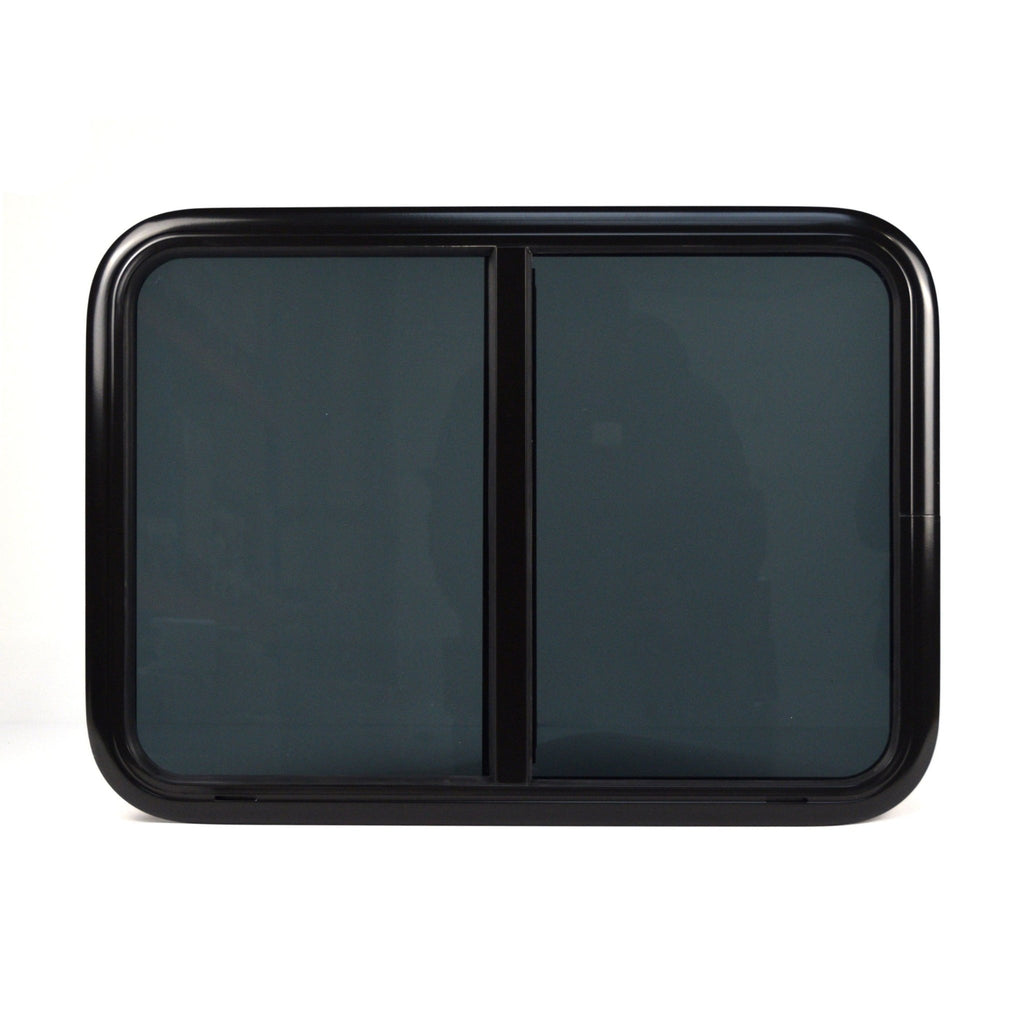

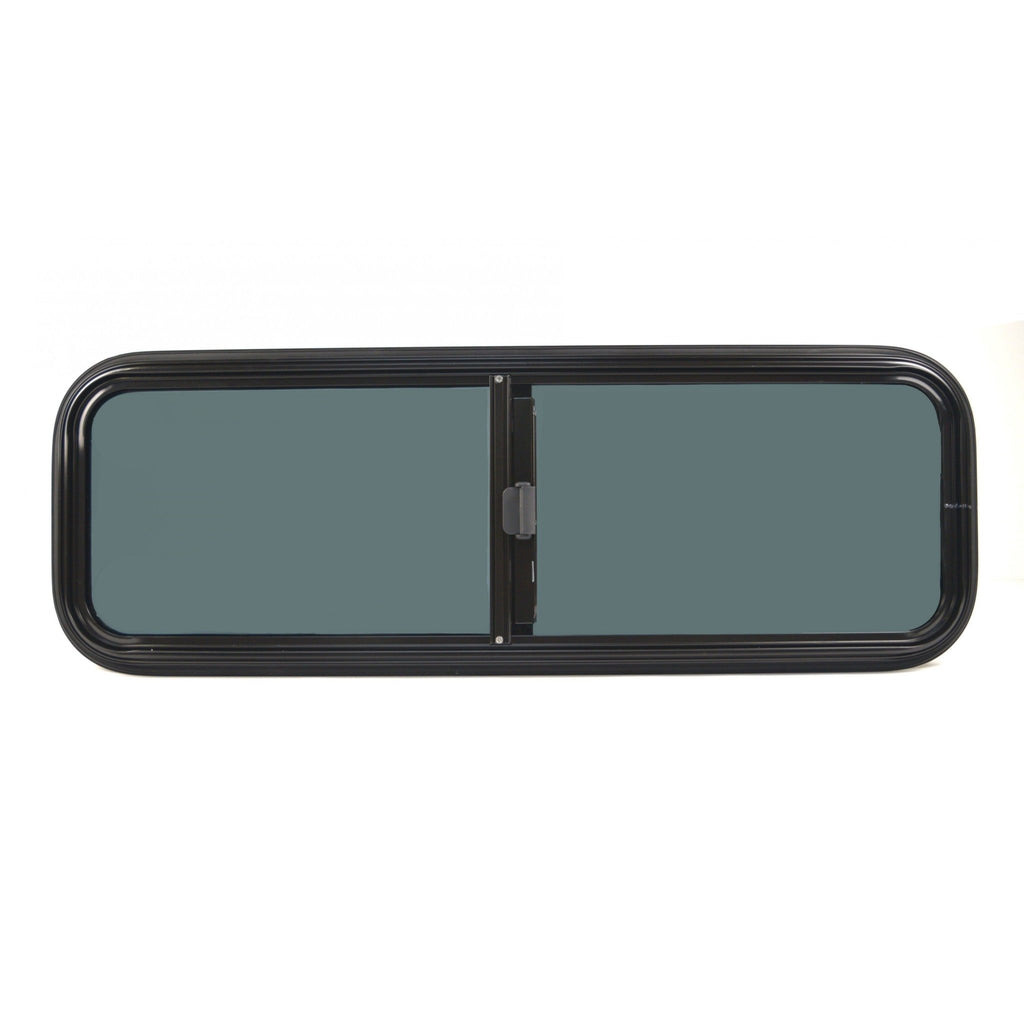

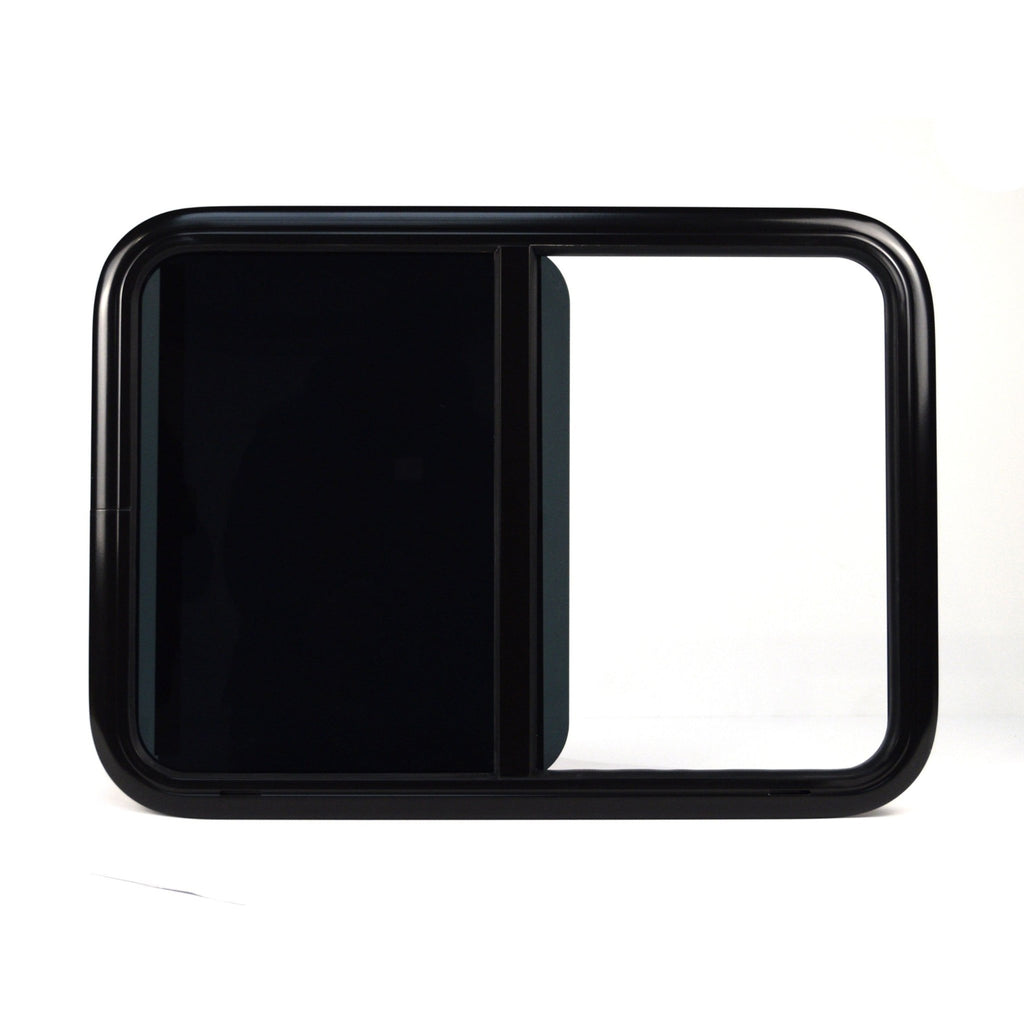

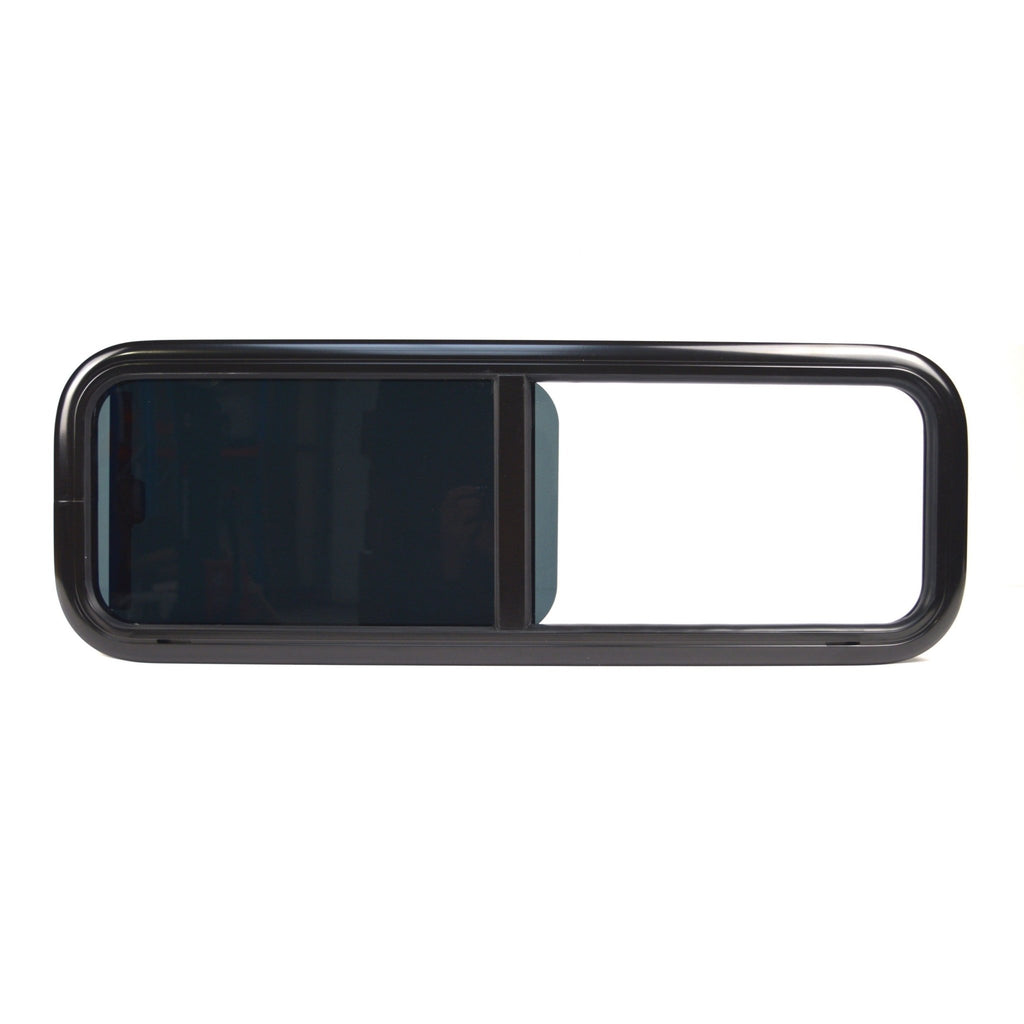

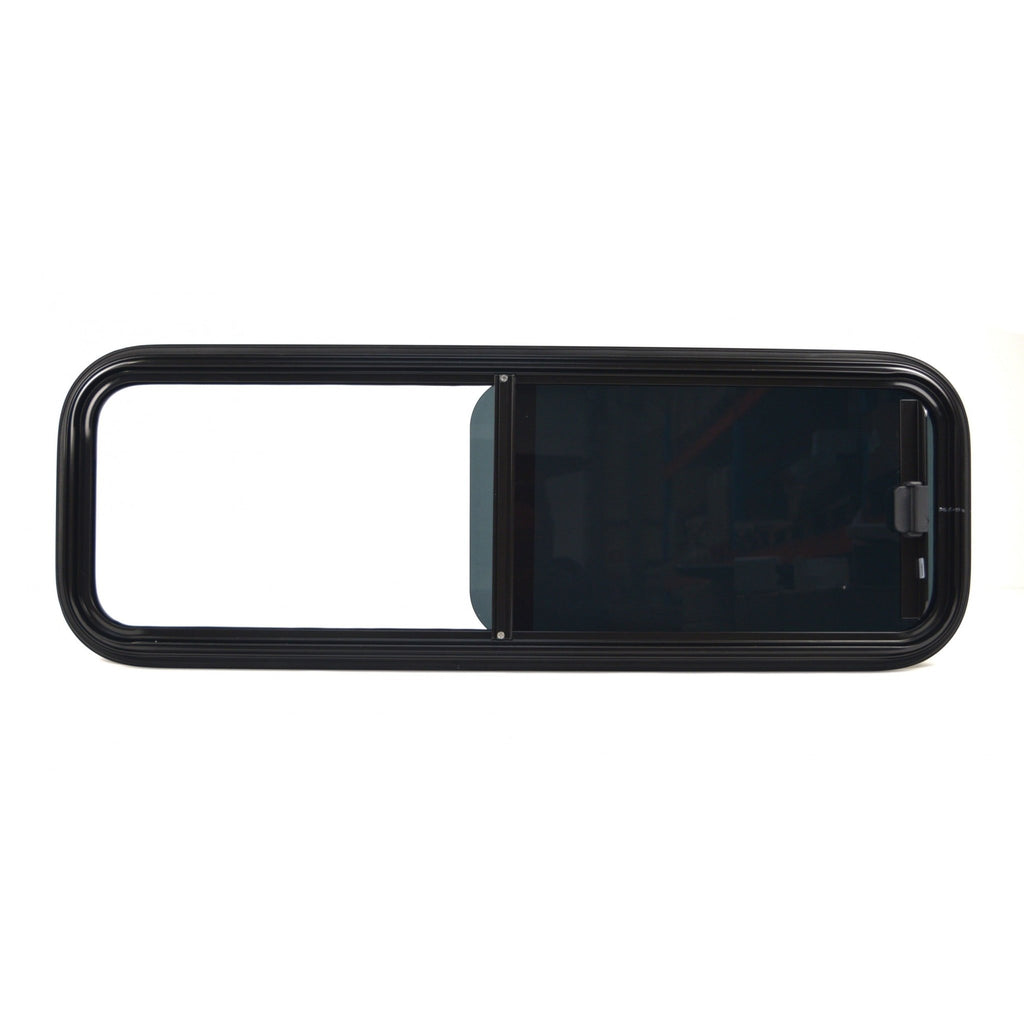

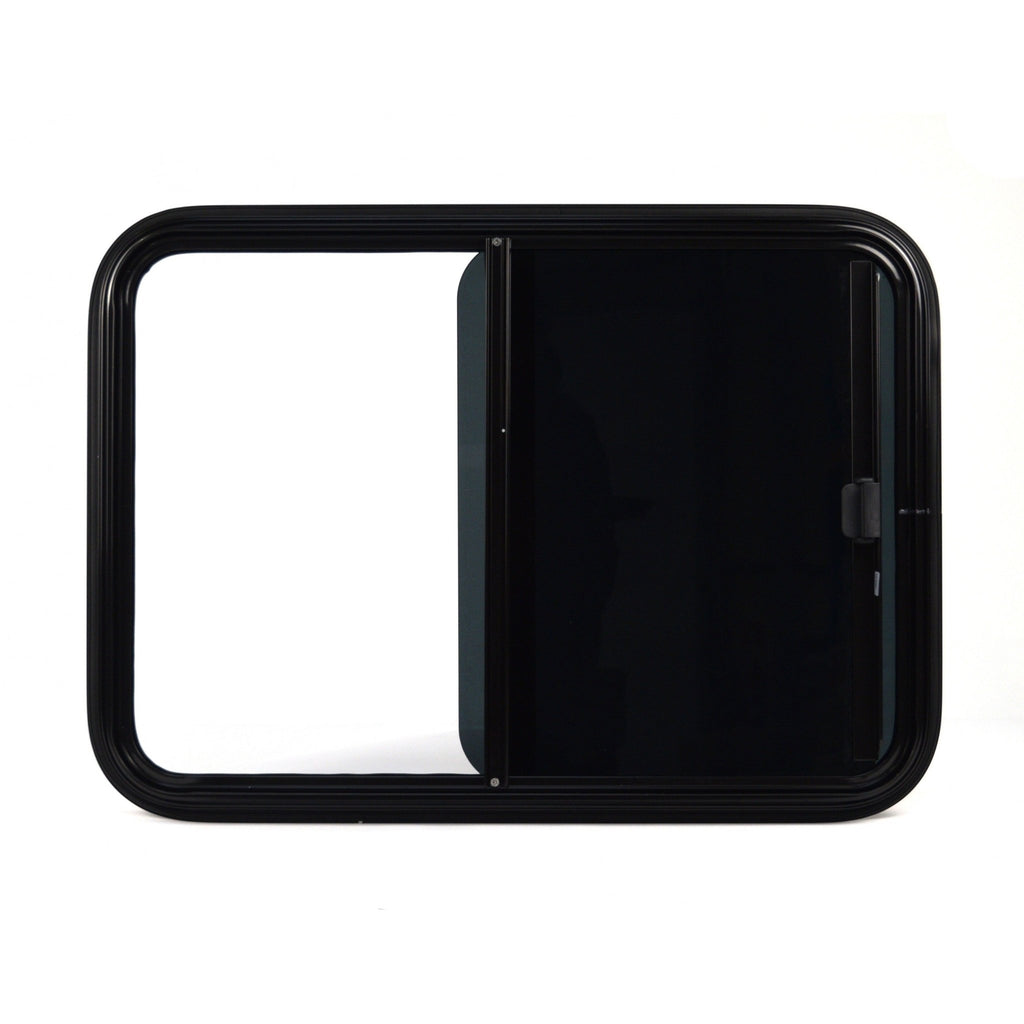

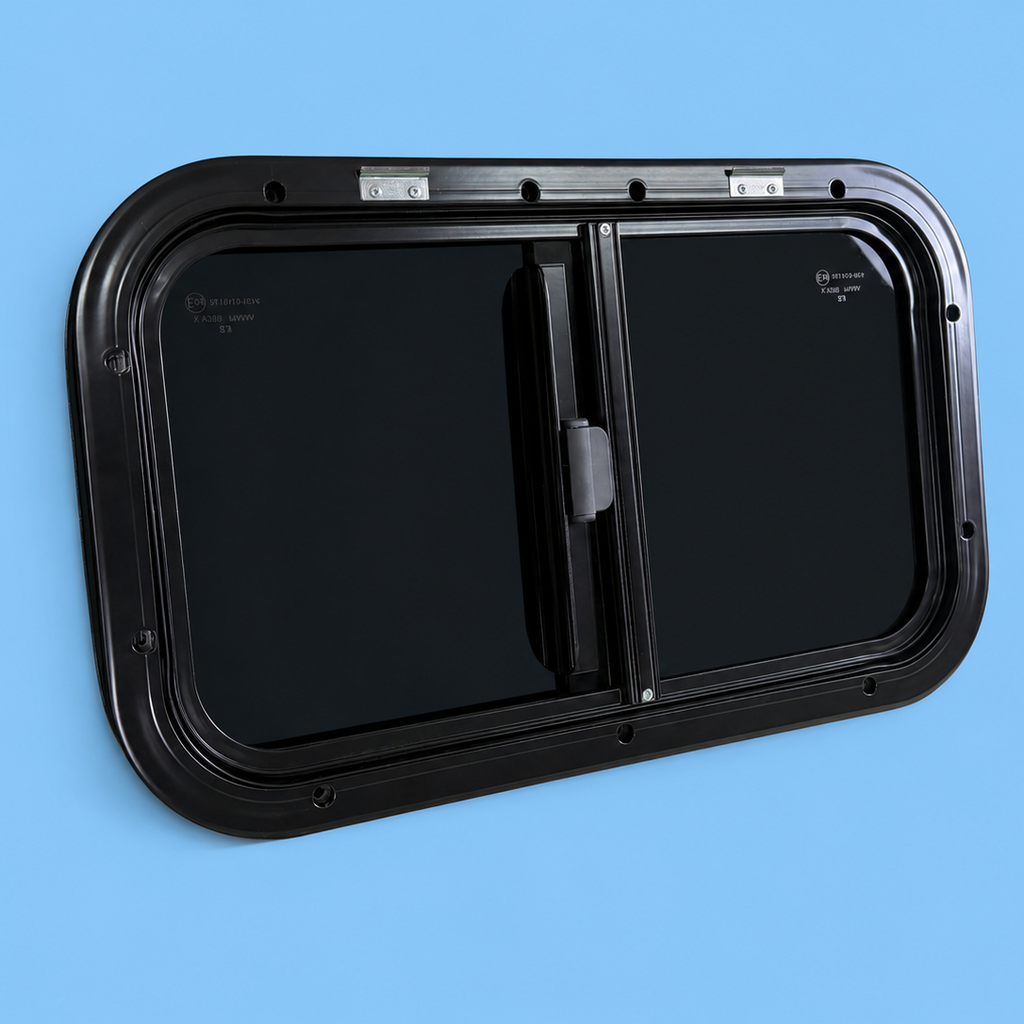

• Type: sliding window with central lock
• Glazing: single UV-resistant acrylic tinted dark (30% light transmission)

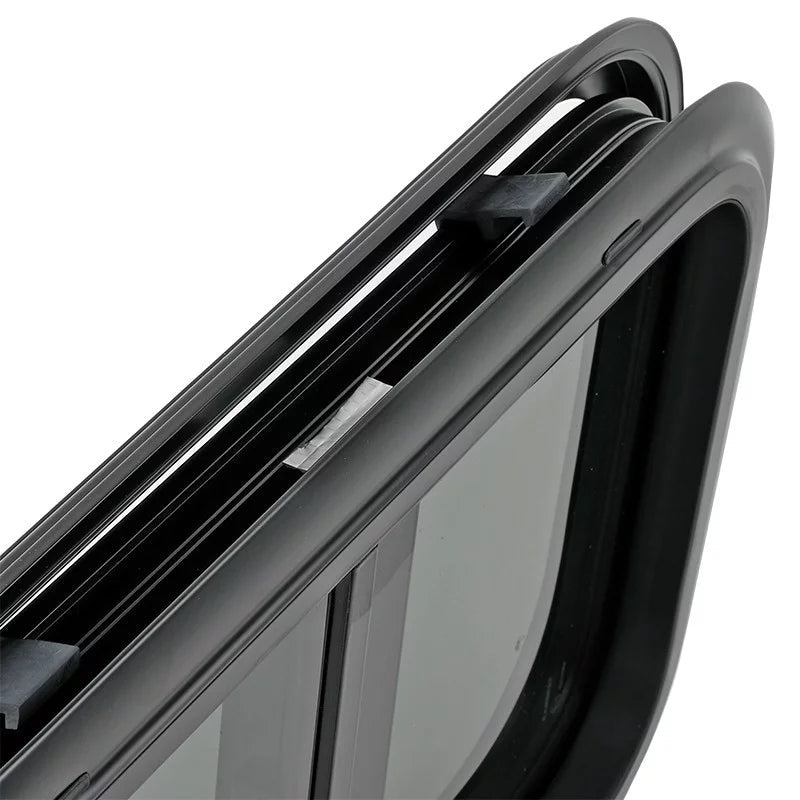

• Outer frame: black aluminium, flat glazing with rounded corners
• Compatible wall thickness: 25 to 75 mm (extendable with a longer fixing screw)
• Inner counter-frame: reinforced aluminium
• Certification: ECE 43-R (Europe, UK, Switzerland) — VASP / TÜV approved

• Warranty: 2 years
• Spare parts available: 5 years

Dimensions

• L × H product = cut-out dimensions
• Overall external dimensions: L+3cm × H+3cm
• Inner finishing frame dimensions: L+8cm × H+8cm

💡 Good to know: only the cut-out dimension matters to check compatibility with your vehicle. The inner finishing frame is surface-mounted (raised) on the wall — it aesthetically covers the edges of the hole without requiring extra space inside the wall.

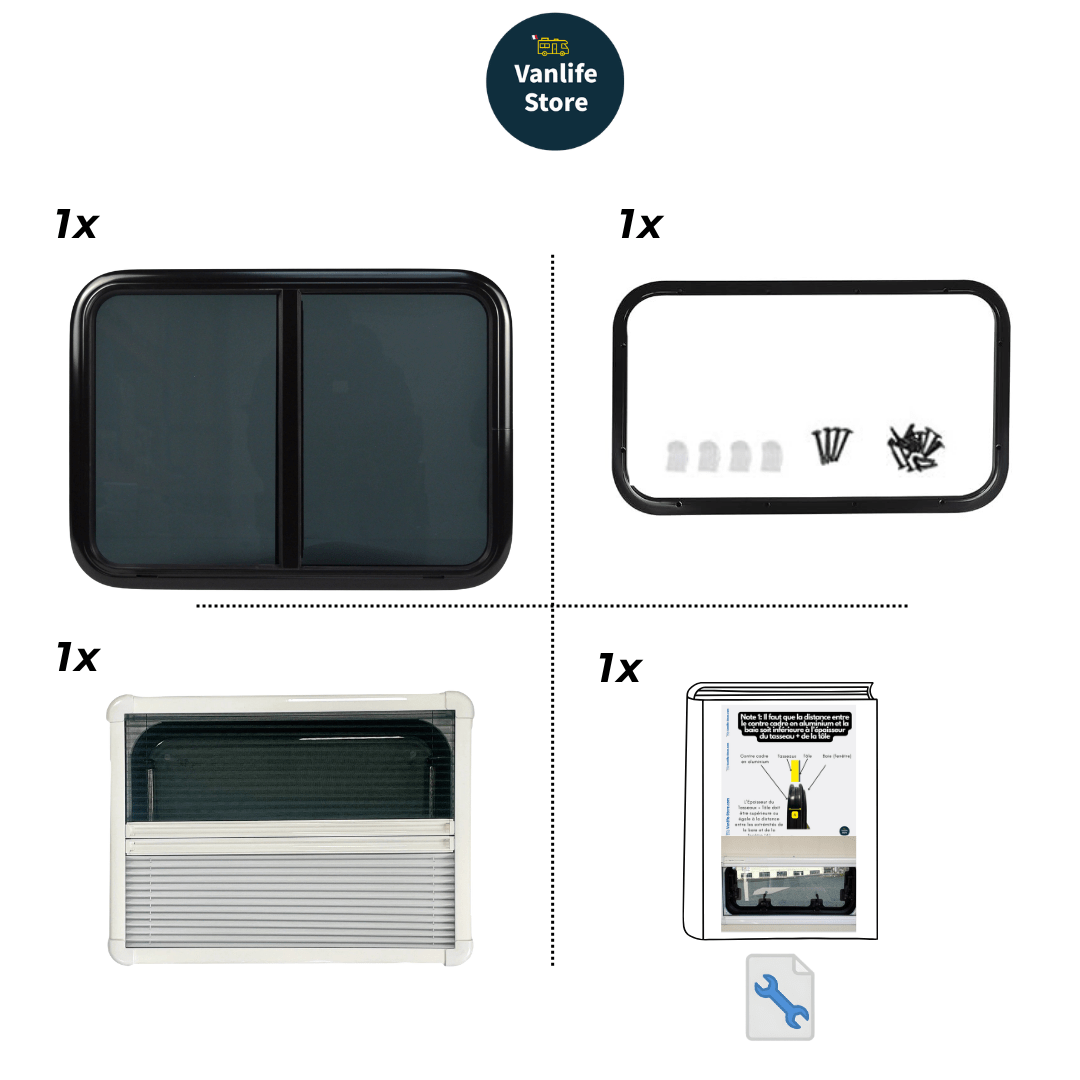

Package Contents

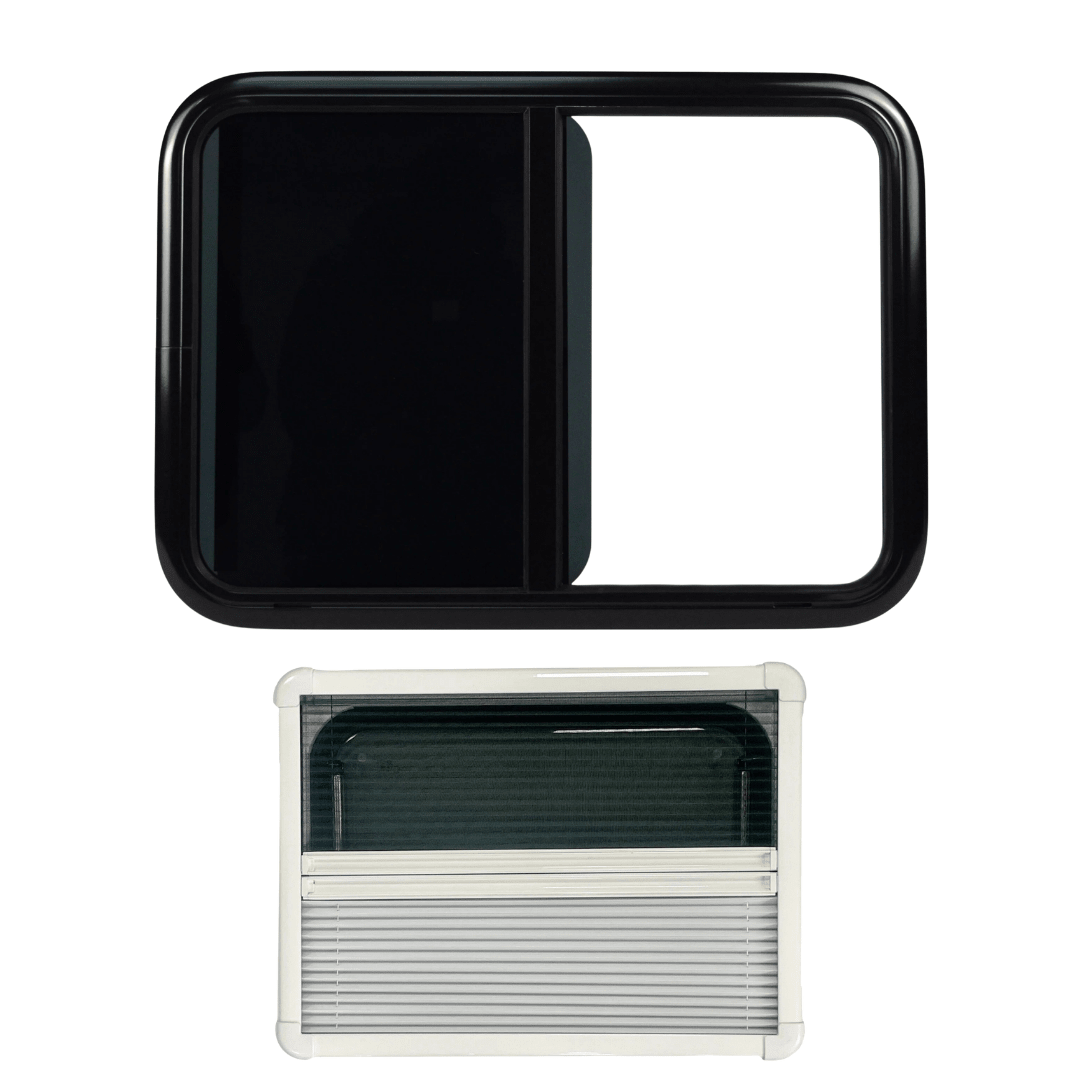

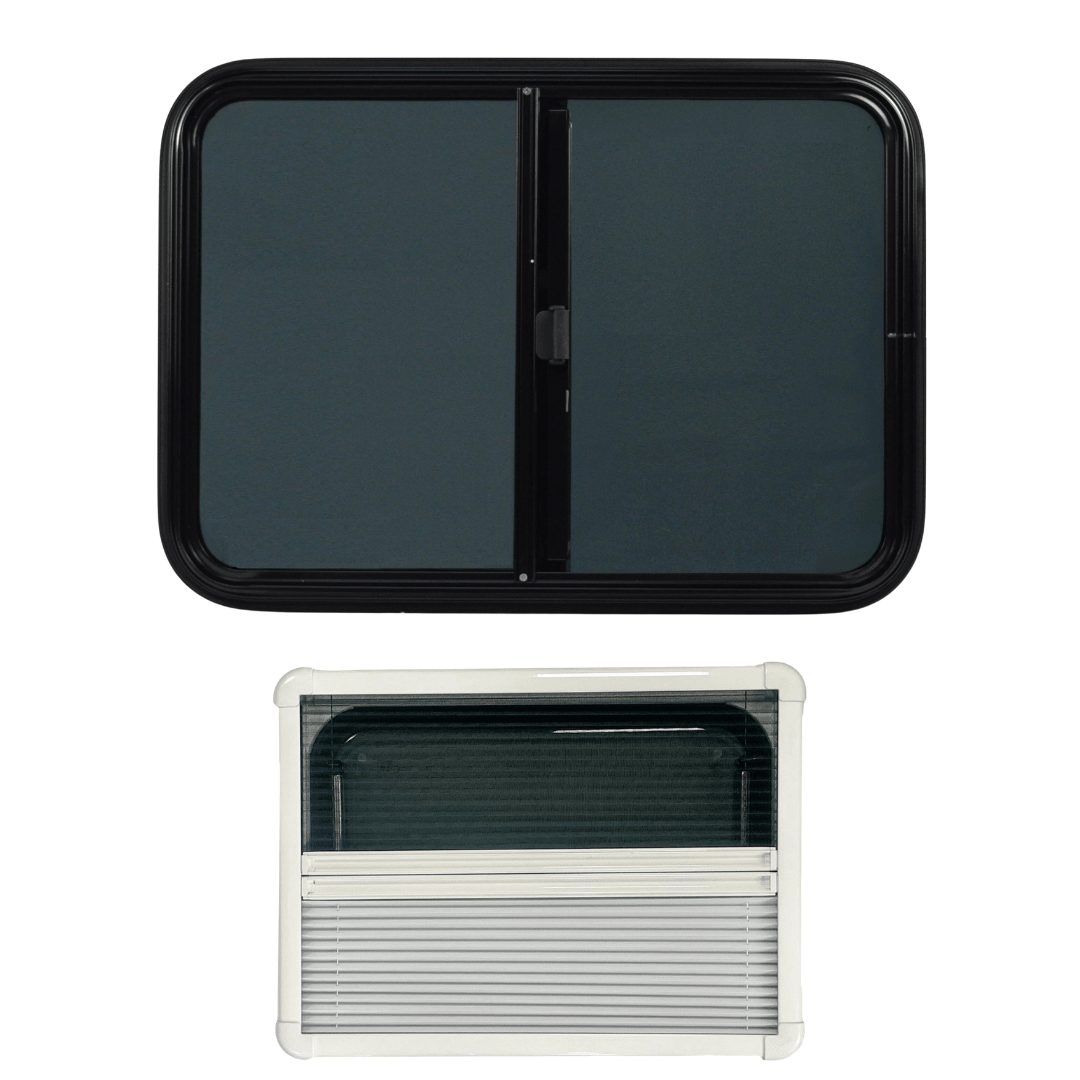

• 1 × SLIDE sliding window

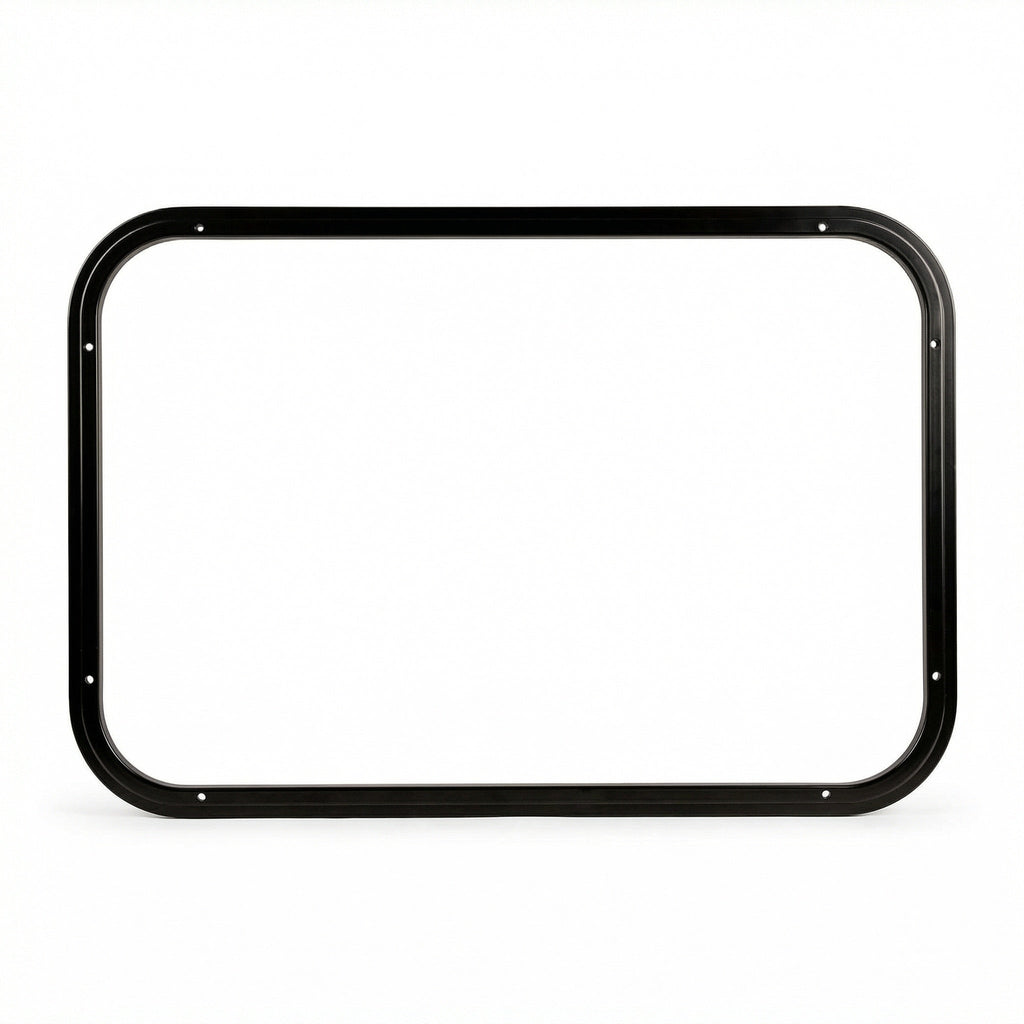

• 1 × Reinforced aluminium inner fixing counter-frame

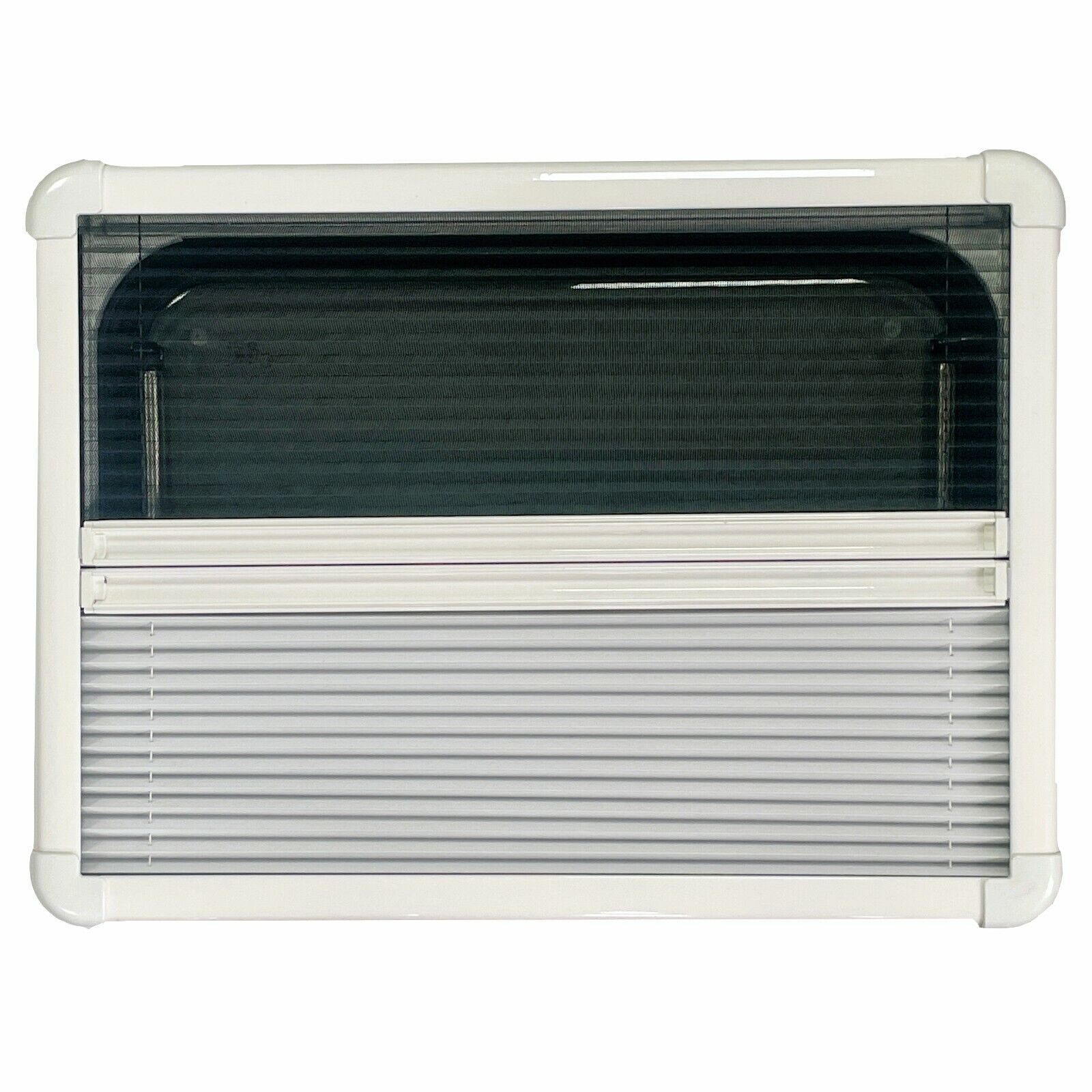

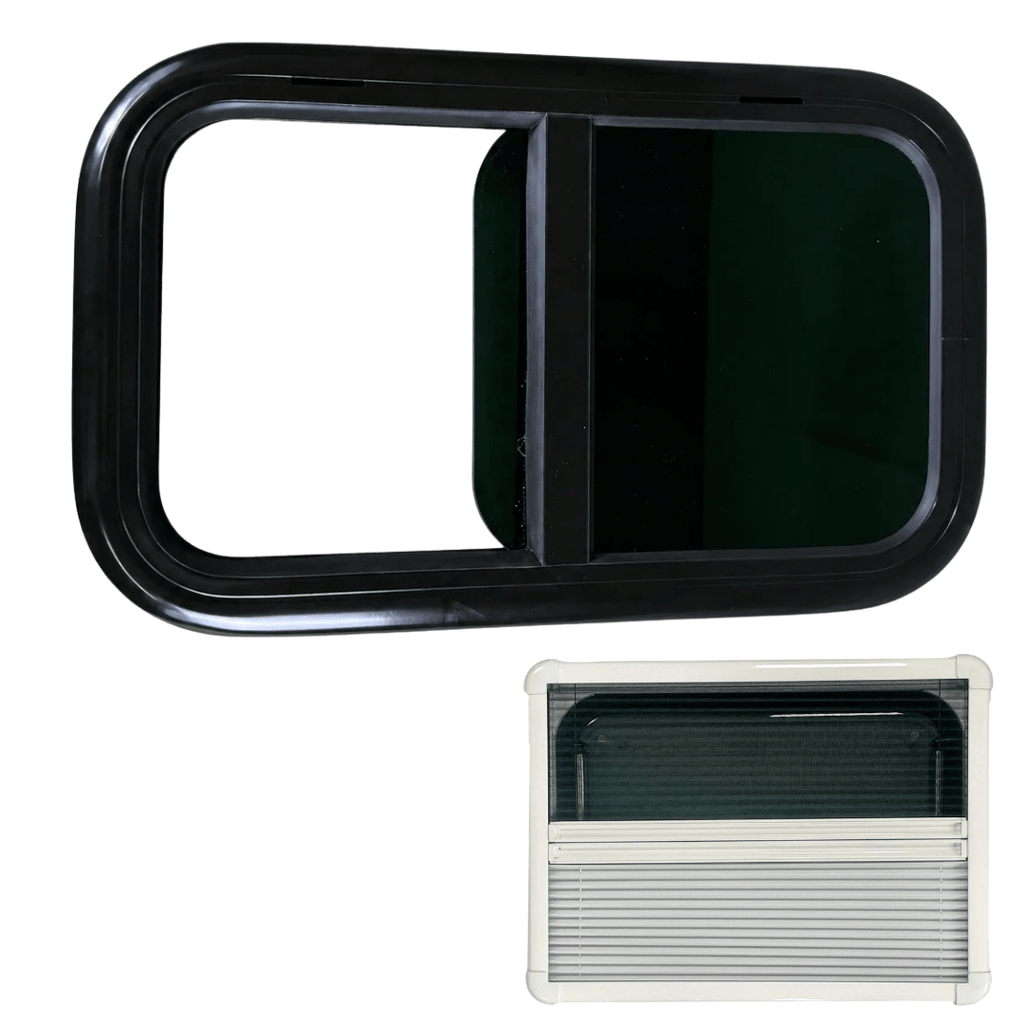

• 1 × Inner finishing frame (blackout blind + fly screen integrated)
• 1 × Screws
• 1 × Step-by-step installation tutorial
• 1 × CE 43-R certification

Required for installation:

• 1 tube of Sikaflex 265 (tube only or complete kit)
• 25mm thick wooden battens or frame
• Jigsaw + screwdriver

⁉️ Frequently Asked Questions

(For any questions not listed below, feel free to contact our technical team - we respond within 24 hours maximum)

Q: Compatible with curved walls?
A: Yes. The reinforced aluminium inner counter-frame fits curved walls (vans) as well as flat walls (Motorhomes, caravans). On curved walls, there is a 2mm gap compensated by Sikaflex

Q: Is it certified?
A: Yes, ECE 43-R — installation allowed without manufacturer approval throughout Europe, the UK, and Switzerland, compliant with technical inspection and VASP.

Q: What is the difference between the SLIDE, the SLIDE LIGHT, and the SQUARE SLIDE?
A: The difference is purely aesthetic. The SLIDE has dark tinted acrylic glazing, flat glass, rounded corners. The SLIDE LIGHT has clear acrylic glazing (70% brightness). The SQUARE SLIDE offers very dark double glazing (10%) and square corners. All our windows are compatible with curved and flat walls.

Q: I am replacing an old window, but no model matches the exact dimensions — what should I do?
A: This is very common. The simple solution: choose a SLIDE model whose width AND height are at least equal to your current window. You will enlarge the existing cut-out to fit the new model — the method is simple and explained step-by-step in the provided installation tutorial.
