Description

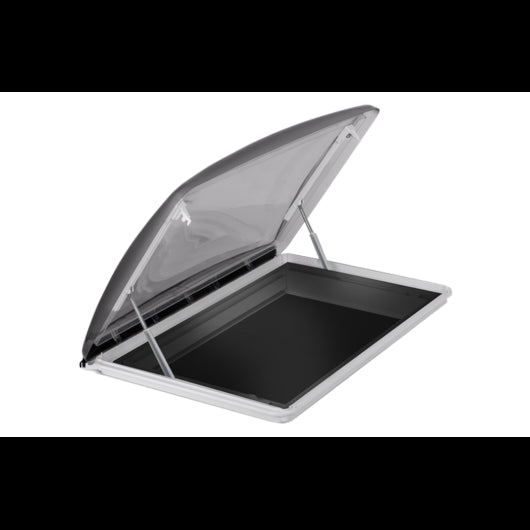

ROOFSTAR Roof vent roofStar-7
The ROOFSTAR 7 roof vent is an essential accessory for fitting out your van or renovating your motorhome.
The standard dimensions 70 x 50 cm will allow you to adapt to most existing locations. Its extra-flat design will ensure a discreet look and reduced wind resistance. There will therefore be less wind noise while driving.
The cover is made of acrylic glass and allows light to pass inside the layout. An inner counter frame is supplied as standard with blackout and mosquito net. For opening, it's very simple! A lifting bar allows you to operate the opening/closing of the cover.
As standard, the roof vent is supplied with 2 screw kits for roof thickness 25 to 32 mm. For a greater thickness, an optional screw kit must be purchased.
To ensure the watertightness of the installation, we recommend the use of sika 521
Technical characteristics of the ROOFSTAR Roofstar7 roof vent:
Cover material: PMMA
Inner frame material: ABS
Supplied with mosquito net and blackout
Supplied with screws for thickness 25 - 32 mm
Permanent ventilation: yes (certificate not available)
Certified R43
Cut-out dimensions: 810 x 620 mm
External dimensions (length x width x height): 810 x 620 x 72 mm
Internal dimensions (length x width x height): 814 x 617 x 26 mm
Weight: 7.8 kg
