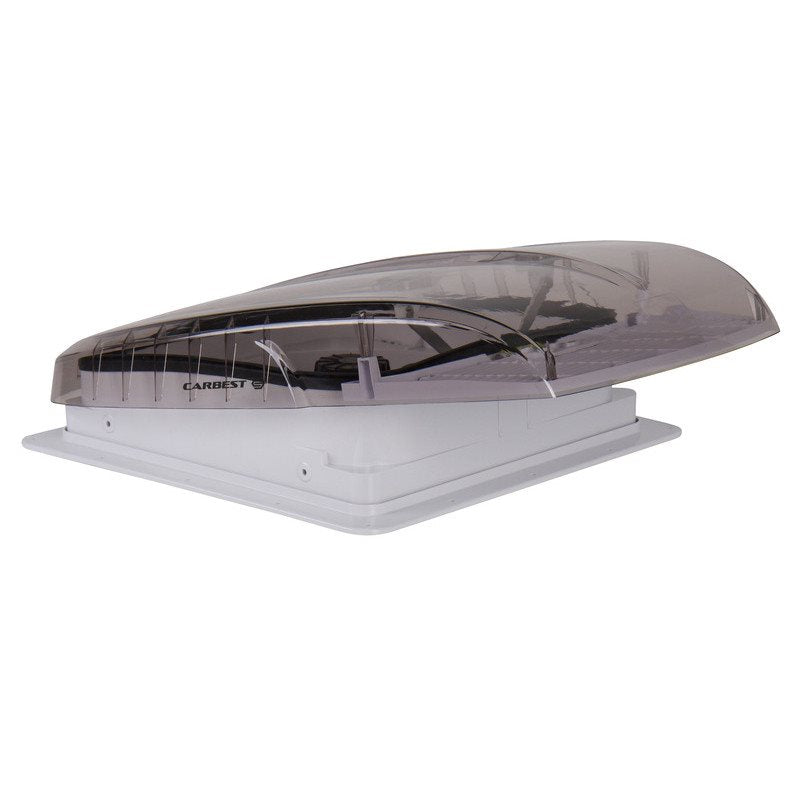

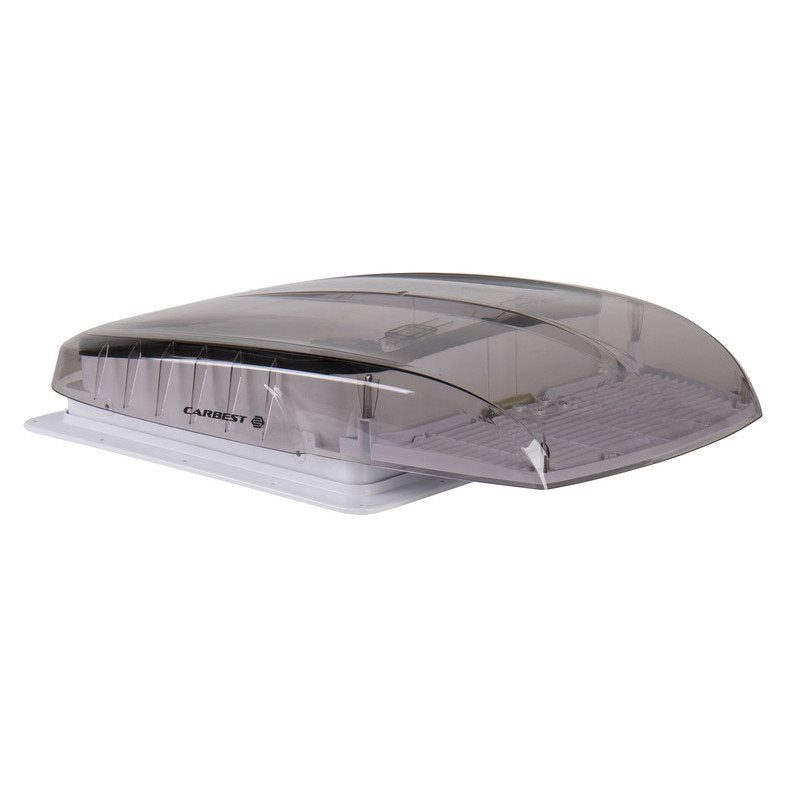

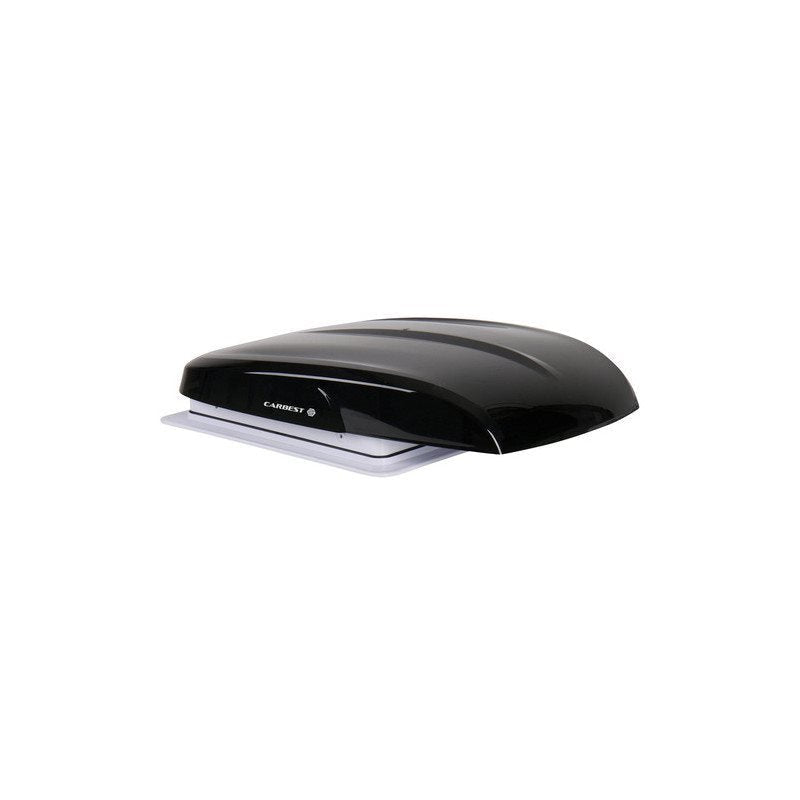

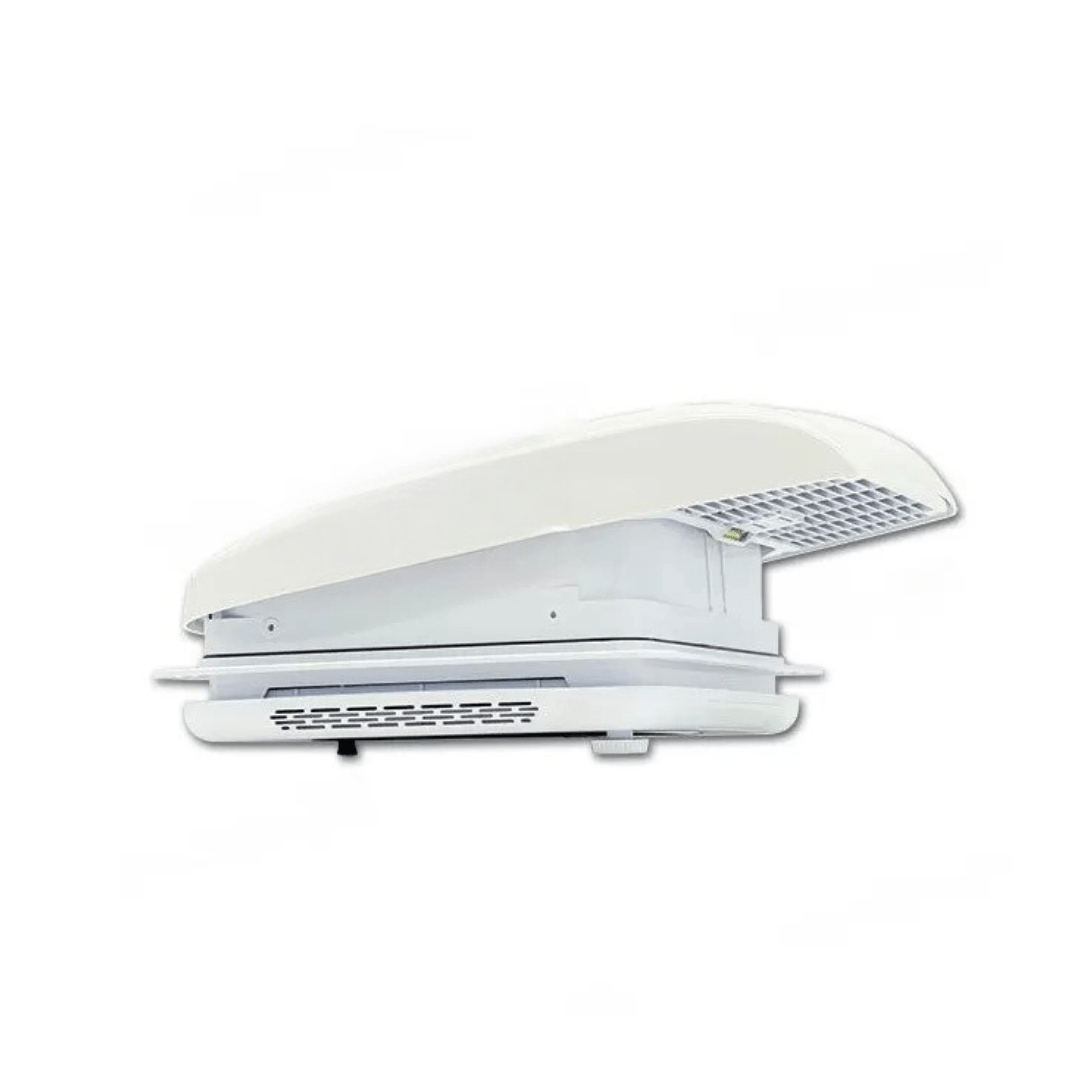

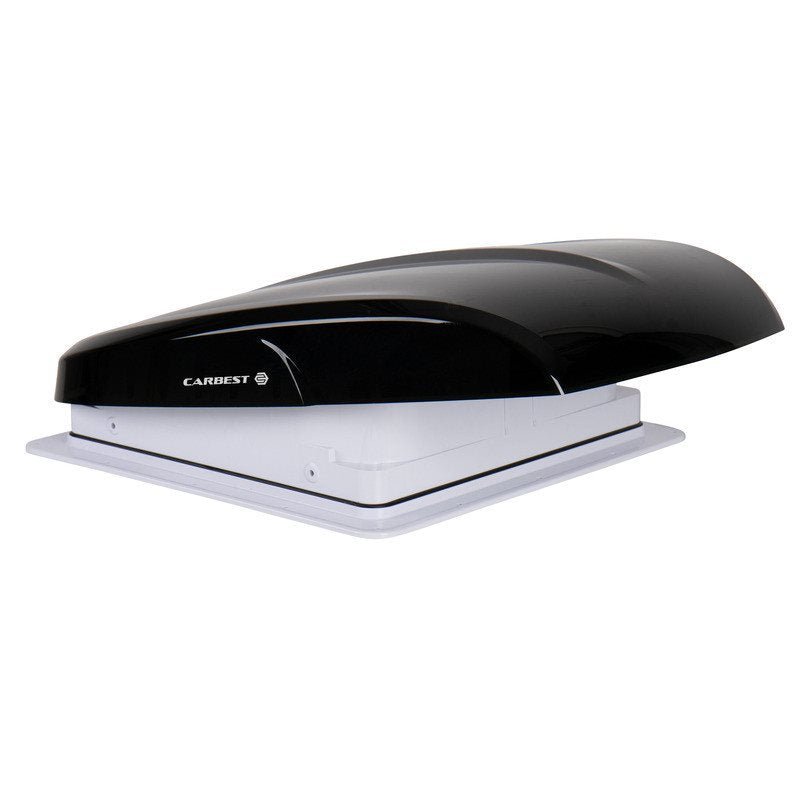

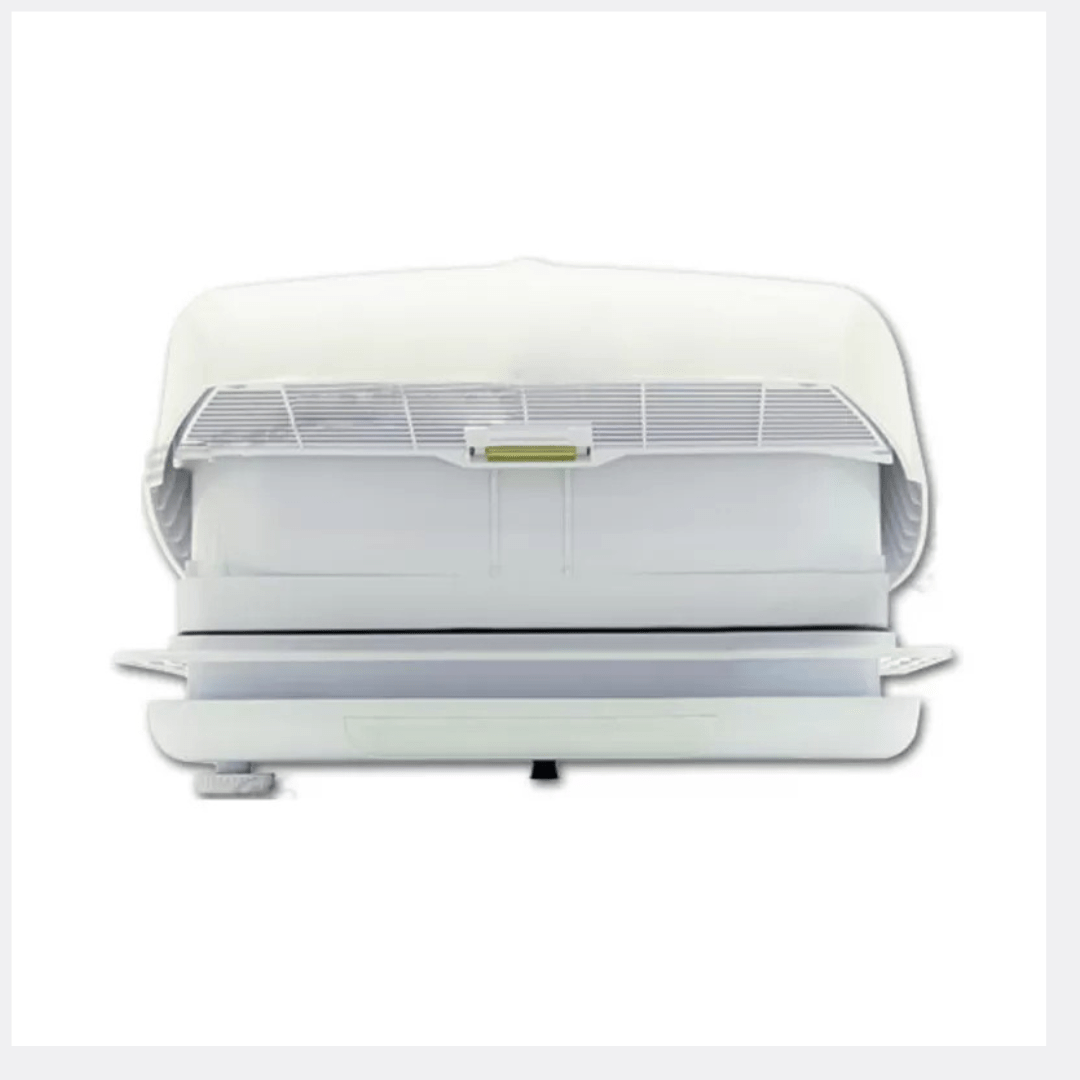

Skylight Fan VANVENT 400 x 40

Vanvent 12V Ventilator Roof Hatch with Fan

Perfect for replacing your current roof hatch or for creating an opening in the roof of your camper van or your motorhome, the Vanvent roof hatch is easy to install.

Its standard dimensions of 40 x 40 cm allow it to easily fit as a replacement for most existing Skylight.

In the open position, it allows you to ventilate the air inside your vehicle by replacing the interior air with outside air.

Built-in fan, remote control

Thanks to its built-in fan, it allows you to circulate the interior air when closed. Equipped with interior lighting, it creates a pleasant light at nightfall in your motorhome or camper van.

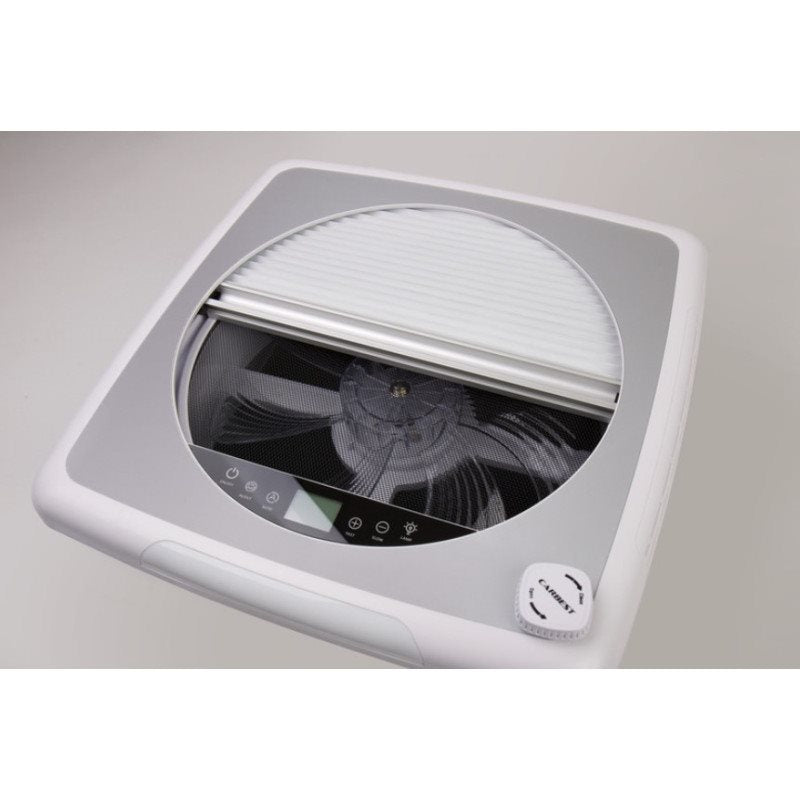

The specific design of this roof hatch prevents rainwater from entering inside, even while driving. Well equipped, this roof hatch includes a interior frame with LED lighting, blackout curtain and mosquito net.

Is this roof dome VASP approved?

Thanks to its ECE R43 marking, this roof hatch complies with European and French standards for installation on vehicles and is therefore suitable for VASP.

Technical specifications of the Vanvent roof hatch with fan

• Power supply: 12 V DC
• Power: 20 W + 4 W (fan max speed + lighting)
• Recommended fuse size: 5 A

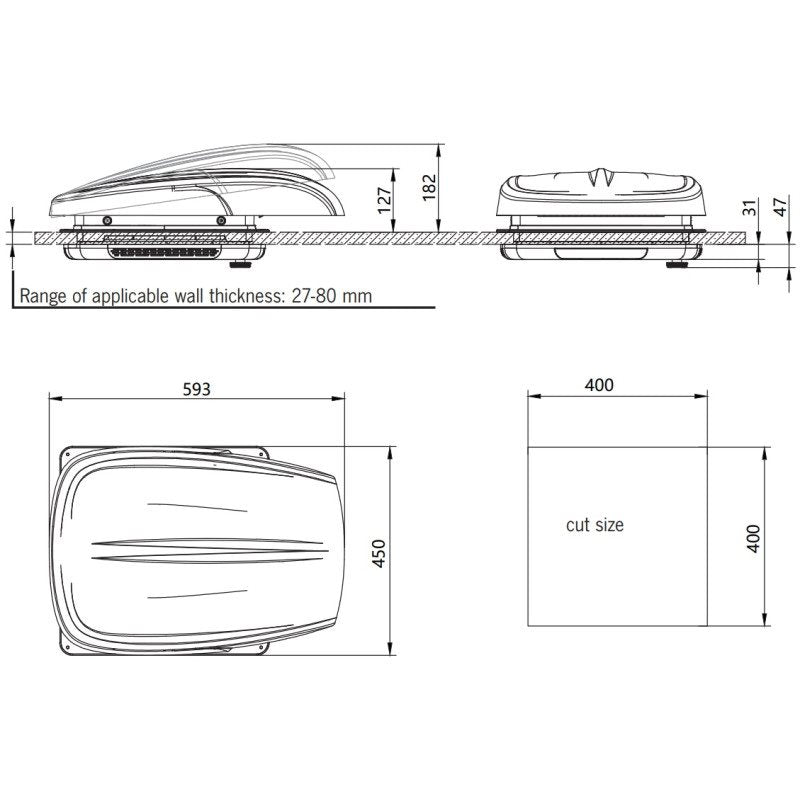

• Wall thickness: from 27 mm to 80 mm
• Cut-out dimensions: 40 x 40 cm
• External dimensions: 45 x 59.3 cm
• Interior frame color: white
• Airflow: 3000 m³/h
• Exterior color: black or smoked gray
• Marking: ECE R43

• Weight: 4.5 kg

  Comparison with similar products*: MaxxAir Maxxfan Deluxe vs Vanvent Roof Hatch (33 reasons why you should choose the Belluna SuperFan):

  	Maxxfan Deluxe	Vanvent Roof Hatch
  Price	€409 (Reimo 05.02.2025 )	€299 - Promotional price
  Warranty period	24 months	36 months
  Parts availability warranty	N/A	5 years
  Remote control	Infrared (line of sight only, about 3 meters)	Radio (through walls, about 30 meters)
  Voltage	10.7 V – 12.6 V	9V – 16V or max 32V (for 24V operation)
  Light	Optional	Included
  Insect protection	Optional	Included
  Printed circuit board	€129	€59
  Replacement hood	€169 (Reimo)	€89
  Replacement motor	€152	€69
  Replacement remote control	€73	€37
  Replacement mosquito net	€45	€19
  Total height (closed/open)	132/236 mm	127/182 mm
  24 V operation	No	Yes, with converter
  Opening mechanism	2 parallel metal bars	2 transverse steel bars (4 times the load)
  Brushless motor	No	Yes
  Lift mechanism in line of sight	No	Yes
  Airflow	2500 m³/h	3000 m³/h
  Energy consumption	29 W	23 W
  Corrosion protection of printed circuit board	No	Yes
  Blackout blind guide rail	plastic	stainless steel
  Lift moment	25 N	100 N
  Operating noise (each 10 dB = doubling of volume)	Air outlet: < 36 dB (Level 4) < 54 dB (Level 10) Air inlet: < 39 dB (Level 4) < 55 dB (Level 10)	Air outlet: < 32 dB (Level 4) < 47 dB (Level 10) Air inlet: < 33 dB (Level 4) < 53 dB (Level 10)
  Weight	6.4 kg	4.9 kg
  Sealing kit for permanent ventilation included	No	Yes
  Type of remote control transmission	Infrared	Radio
  LCD display also in the fan	No	Yes
  Blackout blind locking	Only open or only closed	Intermediate position possible
  Sealing kit for forced ventilation included	No	Yes
  Locking frame	plastic	aluminum
  Blade shape	Symmetrical	Asymmetrical (see FAQ below)
  The superior performance of the Vanvent compared to the Maxxfan is due to technical advances and improved design. Additionally, the total blade surface of the Vanvent is larger because more usable space has been utilized. The aerodynamic shape of the blades has also been optimized. The blade height on the rotor is 24 mm for the Vanvent, while it is 20% lower for the Maxxfan, at 20 mm. These factors overall lead to better performance at the same speed or reduced energy consumption and lower noise at the same performance.
