Adjustable Thermostatic Mixer - Safety and Comfort for Water Heating
REF: AT0062
The adjustable thermostatic mixer is the perfect solution to ensure the safety of domestic water heating systems. It maintains the hot water temperature below 48°C, thus avoiding any risk of burns. This mixer guarantees optimal comfort while offering maximum safety for users. An ideal choice for safe and efficient domestic installations.
Technical Specifications:
-
Body Material: Chrome-plated brass
-
Compatible Fluid: Domestic/drinking water
-
Temperature Adjustment: 30-48°C
-
Maximum Static Pressure: 10 bar
-
Maximum Dynamic Pressure: 5 bar
-
Maximum Hot Water Inlet Temperature: 90°C
-

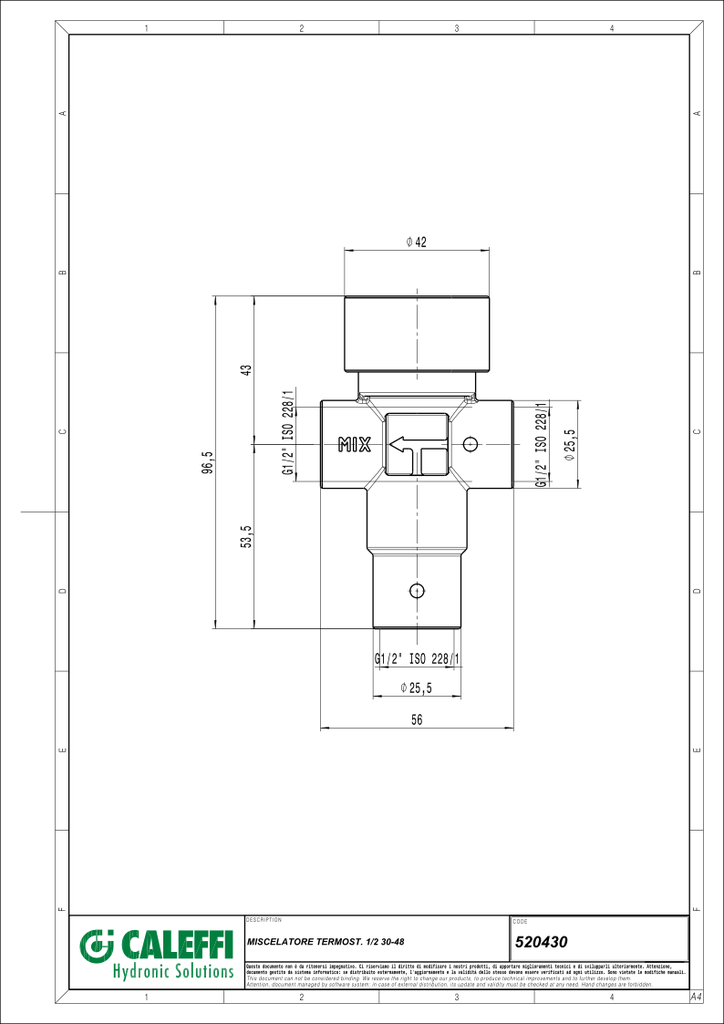

Connectors: 3 threads 1/2"
-
Maximum Flow Rate: 21 l/min
Installation Tips:
To connect this mixer, do not forget to order 3 brass hose fittings (10 mm, 1/2 inch).
The thermostatic mixer ensures precise temperature control while offering increased safety to avoid risks related to hot water.
