COMPLETE ELECTRICAL KIT FOR CONVERTED VAN (With diagram)
Easily equip your converted van with a reliable and efficient 12V electrical system thanks to this complete kit. Designed to simplify installation and ensure optimal autonomy, it includes all essential components to manage energy on board. Delivered with detailed instructions and a clear diagram, it allows for a safe and accessible installation, even without being an electrical expert.
⚠️ Important note : Wire and cable sizes will depend on your installation.
- To obtain a complete ready-to-install pack (including Electrical components + circuit breakers + fuses + terminals and wiring) do not hesitate to contact our teams to get a pack including wires and cables specially adapted to your installation.
Kit Description
Complete 12V electrical kit for converted van

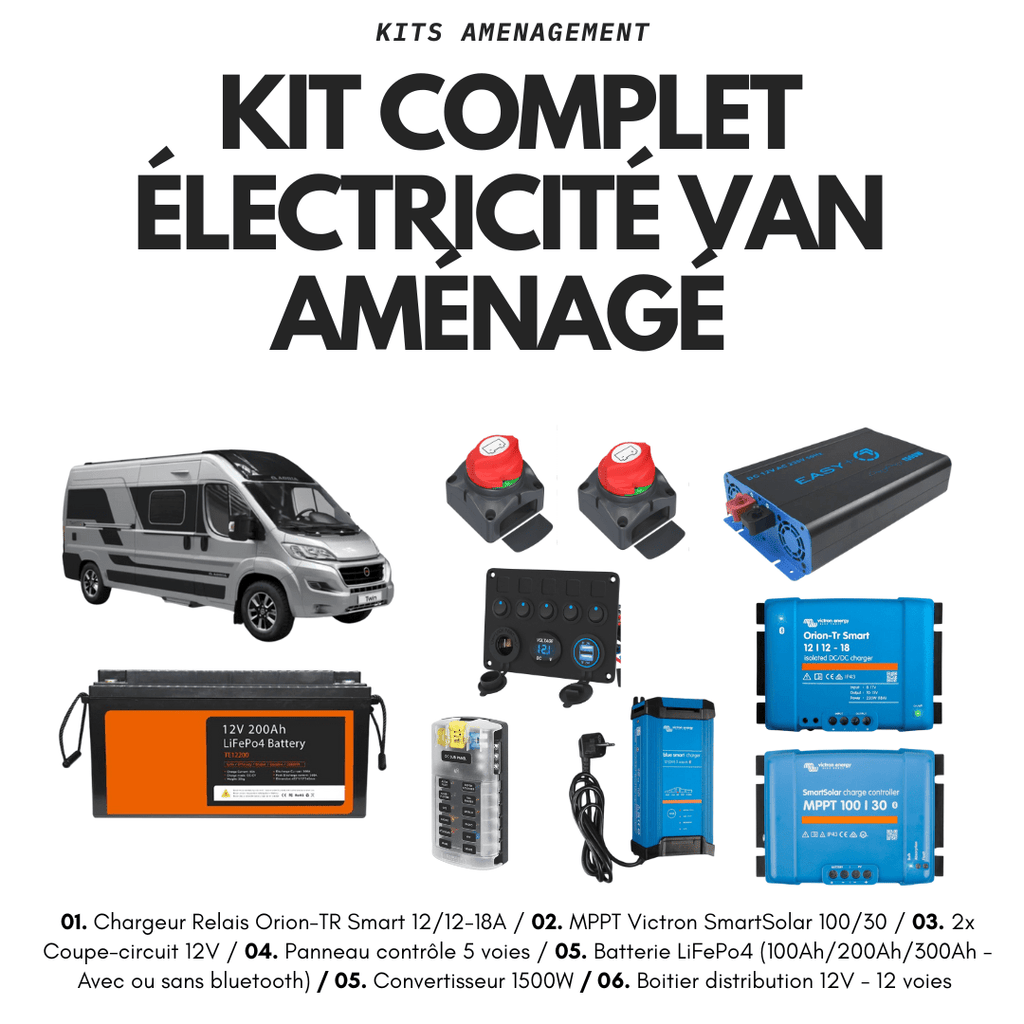

This kit includes:
-
1 x Lithium LiFePo4 Battery
-

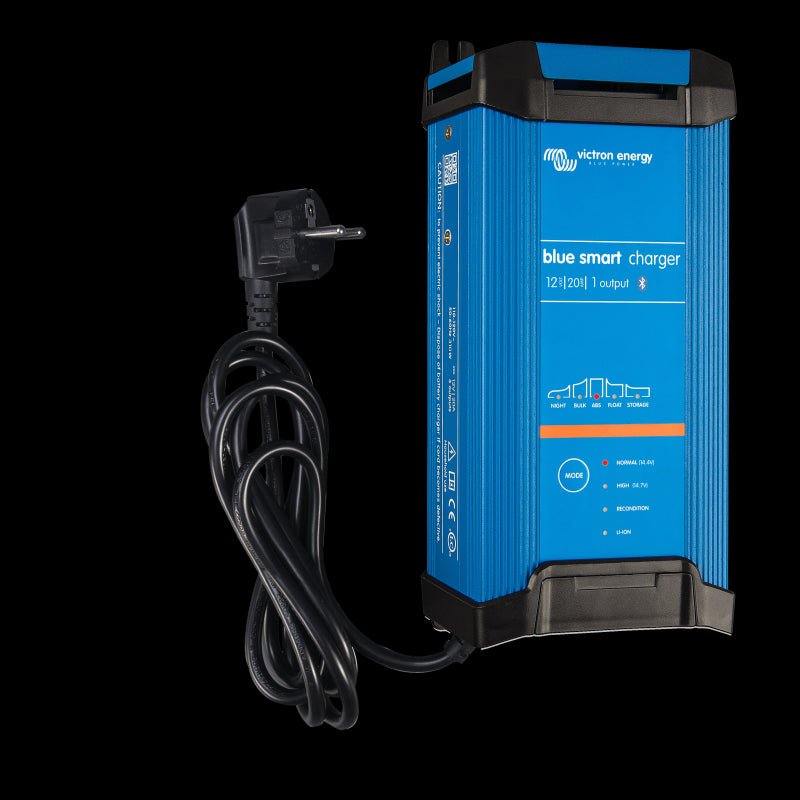

1 x 220V Battery Charger Victron BlueSmart Charger 15A – 1 output
-
1 x DC/DC Charger Relay Victron Orion-TR Smart 12-12 / 18A
-
1 x MPPT Solar Regulator Victron Smart Solar 100/30
-
2 x 12V Battery Cut-off Switches
-
1 x 12V DC Distribution Box – 12 ways
-
1 x Switch Panel with battery voltage and integrated USB sockets

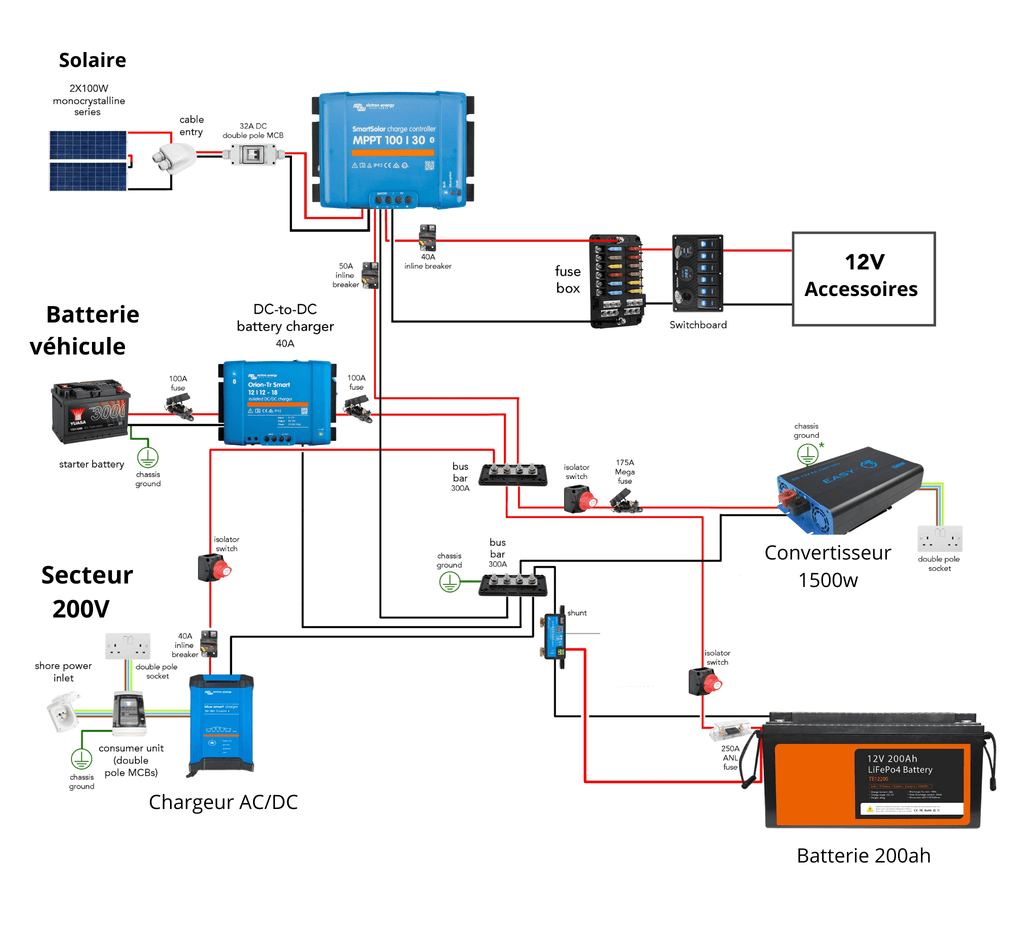

👉 Delivered with detailed installation instructions and complete diagram for a simple and safe assembly.
What you will need:
- Fuses and circuit breakers (available in pack)
- Electrical wires and terminals (available on request - depending on your installation)
- 1 x Crimping tool for electrical terminals
Lot Description
Complete 12V electrical pack for converted van
Enjoy an all-in-one solution to equip your van. This pack combines a Lithium LiFePo4 battery (with optional Bluetooth connectivity), Victron chargers (220V and DC/DC), a solar regulator, as well as the main electrical distribution accessories (cut-off switches, distribution box, switch panel with USB).
Everything is provided with a clear diagram and step-by-step instructions to guarantee a quick, safe, and economical installation.
#1 - LiFePo4 Battery (with optional Bluetooth)
High-quality lithium LiFePo4 battery - special for Converted Vehicles (motorhomes, vanlife)
Perfect for boats, solar systems, motorhomes, and converted vans.
Compatible with Victron, Ecoflow, Renogy, Carbest installations.
Features:
Available voltage: 12V
Capacity: 200Ah (also available in 100Ah and 300Ah)
BMS: Integrated
Connectivity: Bluetooth (optional)
Technology: Lithium-ion (LiFePO4)
Long lifespan: Up to 6000 charge/discharge cycles
Lightweight and compact: Space-saving compared to traditional gel or lead batteries
Enhanced safety: Protection against short circuits, overcharge, and deep discharge
Advantages:
Excellent lithium technology performance adapted for motorhome use
Low self-discharge rate
Almost no maintenance
Perfect for energy autonomy projects
| Electrical Specs |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
200Ah |
| Capacity @20A |
600min |
| Energy |
2560Wh |
| Resistance |
≤30mΩ @ 50% SOC |
| Efficiency |
99% |
| Self-discharge |
≤3.5% per month |
| Max modules in parallel |
4 |
| Technical Specs (with Bluetooth) - 200Ah |
| Dimensions[L*W*H] |
483*170*240mm |
| Weight |
20KG |
| Connections |
M8/M6 |
| Case Material |
ABS |
| Protection |
IP55 |
|
|
| Cells |
LiFePo4 |
|
|
| Charging Parameters |
| Recommended charge current |
5A-50A |
| Maximum charge current |
100A |
| Recommended charge voltage |
14.2 to 14.6 V |
| BMS charge voltage cut-off |
15.0 V [3.75±0.1 V] |
| Reconnect voltage |
14.6 V [3.65±0.1 V] |
| Balancing voltage |
14.0 V[3.5±0.025 VPC] |
| Balancing current |
35±5mA |
Package weight and dimensions (With Bluetooth): 20 Kg / 49 x 17 x 24 cm
Package weight and dimensions (Without Bluetooth): 19.5 Kg / 45 x 35 x 32 cm
#2 - 1500W Easy+ Inverter
- Reference: CP1511
- Dimensions: 38 x 22 x 8 cm
- Weight: 3.9 kg
EASY+ 1500 W Inverter
• PURE SINE WAVE Inverter
• Continuous output power 1500W
• Integrated 230 V switching priority
• Delivered with remote control
• Peak power (1 s) 2900W
• Provided connectors 25mm²
Downloads
#3 - MPPT SmartSolar Victron 100/30
-
Description:
The VICTRON SmartSolar MPPT 100/30 is a high-performance solar regulator designed to optimize the energy production of your photovoltaic panels in vans, motorhomes, or boats. Thanks to its MPPT technology and integrated Bluetooth connectivity, it ensures fast and efficient battery charging while allowing real-time monitoring from your smartphone via the VictronConnect app.
Highlights:
-
MPPT Technology : up to 30% more efficiency compared to a conventional regulator.
-
Integrated Bluetooth Connectivity : monitoring and configuration from smartphone or tablet.
-
Battery Compatibility : Lead, AGM, GEL, and Lithium.
-
Versatility : ideal for 12V systems (up to 440 W) and 24V (up to 880 W).
-
Built-in Safety : protections against short circuits, reverse polarity, and overheating.
Technical Specifications:
-
System voltage: 12 / 24 V (automatic selection)
-
Nominal charge current: 30 A
-
Max solar power: 440 W (12V) / 880 W (24V)
-
Self-consumption: 30 mA
-
Operating temperature: -30 °C to +60 °C
-
Dimensions: 130 x 186 x 70 mm
-
Weight: 1.3 kg
A robust, reliable, and easy-to-install regulator, ideal to increase your energy autonomy during your travels.
#4 - DC/DC VICTRON Orion-Tr Smart 12/12 - 18A Isolated | With Bluetooth
The VICTRON Orion-Tr Smart 12/12 - 18A Isolated is a robust and intelligent DC/DC charger, ideal for recharging your auxiliary 12 V batteries from the starter battery and alternator of your vehicle or boat.
Thanks to its Smart technology with integrated Bluetooth, you can monitor and configure the charge in real time via the VictronConnect app. Compatible with AGM, GEL, and Lithium batteries, it ensures fast, reliable, and technology-adapted charging.
Designed for modern vehicles (Euro 5 & 6) equipped with smart alternators, it includes an engine detection function that starts charging only when the engine is running. Galvanic isolation protects your equipment against corrosion, especially on steel or aluminum boats.
⚡ Highlights:
-
Isolated 12 V DC/DC charger – 18 A
-
3-stage algorithm: Bulk, Absorption, Floating
-
Compatible with AGM, GEL, Lithium
-
Integrated Bluetooth for settings and monitoring
-
Power Supply function for continuous power
-
Built-in protection: overheating, reverse polarity, short circuit
📐 Technical Specifications:
-
Input voltage: 8 – 17 V
-
Output voltage: adjustable 10 – 15 V (nominal 12.2 V)
-
Output current: 18 A (max 25 A peak)
-
Power: 280 W (25°C) / 220 W (40°C)
-
Efficiency: 87 %
-
Galvanic isolation: 200 VDC
-
Protection rating: IP43 (case) / IP22 (connections)
-
Dimensions: 130 x 186 x 70 mm – Weight: 1.3 kg
