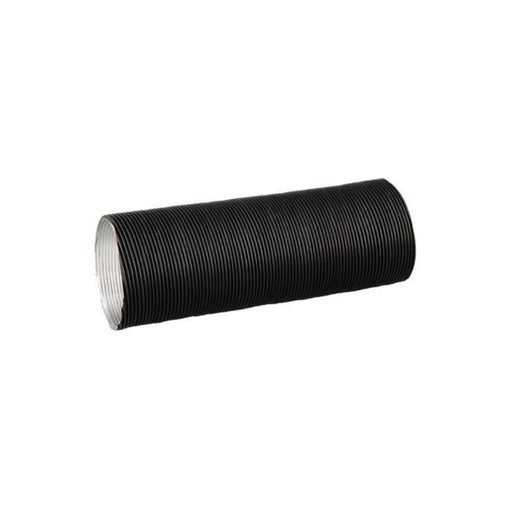

Heating duct Ø 75 mmCreate your forced air circuit in your converted van or motorhome with this heating duct. Made of flexible aluminum and plastic sheet, it efficiently distributes warm air in your cabin.Sold by half-meter or meter in a single piece, depending on the desired quantity.*Maximum length of 10 m in a single piece. Example: if you need 0.50 m of duct, order 0.50 m x 1Example 2: if you need 3 m of duct, order 1 m x 3, you will get 1 single pieceExample 3: if you need 25 m of duct, order 1 m x 25, you will get 3 pieces (2 pieces of 10 m and 1 piece of 5 m) Material: flexible aluminum, paper, plastic sheet.Ideal hose for Autoterm Air 4D, Autoterm Air 9D heaters. For air distribution in rooms, we recommend:– 75 mm T-piece (DE027)– Y-piece 90-75-75 (DE029)– Y-piece 75-60-60 (ATR2-RY75603D-BK)– 75 mm Y-piece (P9120)– 75 mm connector sleeve (P9118)– 75-60 mm adapter (ATR2-R75603D-BK)– 75 mm grille air vent (2534)- 75 mm closable deflector (DE020) + Clamp (DE005)– 75 mm stainless steel clamps Warning: do not reduce the 4D or 9D outlet directly from 100 mm to 75 mm, use at least a 90-90-90 T or Y (reduce to 75 mm in only one direction), or ideally a 90-75-75 Y.
Questions / Answers
How to attach the duct to the heater?
You can remove the air intake/output grilles installed on the heater by slightly turning the grille and pulling it. Then the duct fits into the heater's warm air outlet. You can secure the duct with a fixing clamp. Be careful not to tighten the clamps too much to avoid deforming the air intake/output.
