Description :

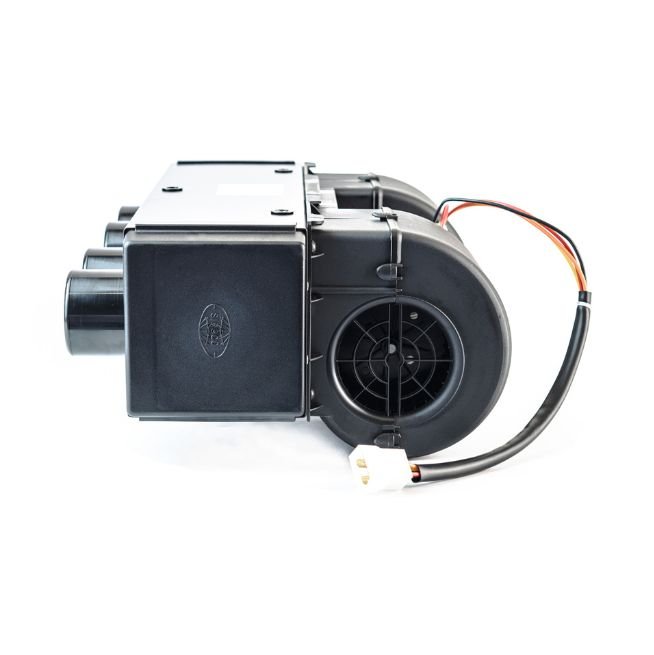

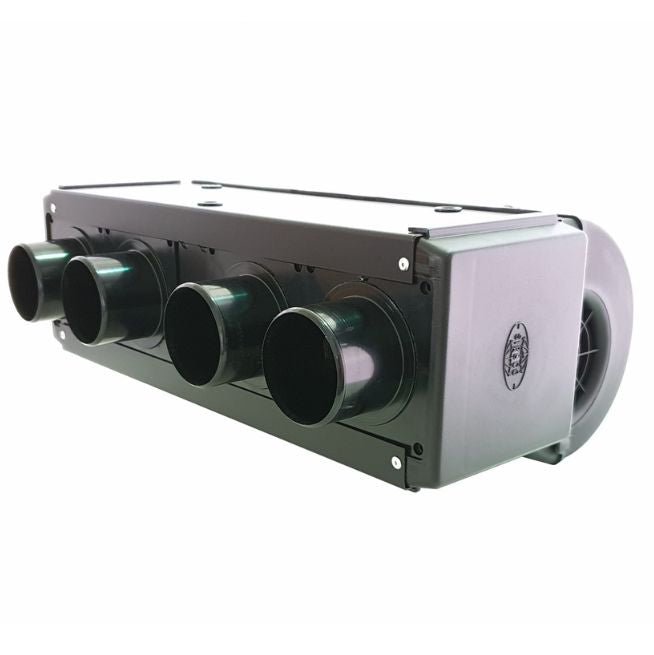

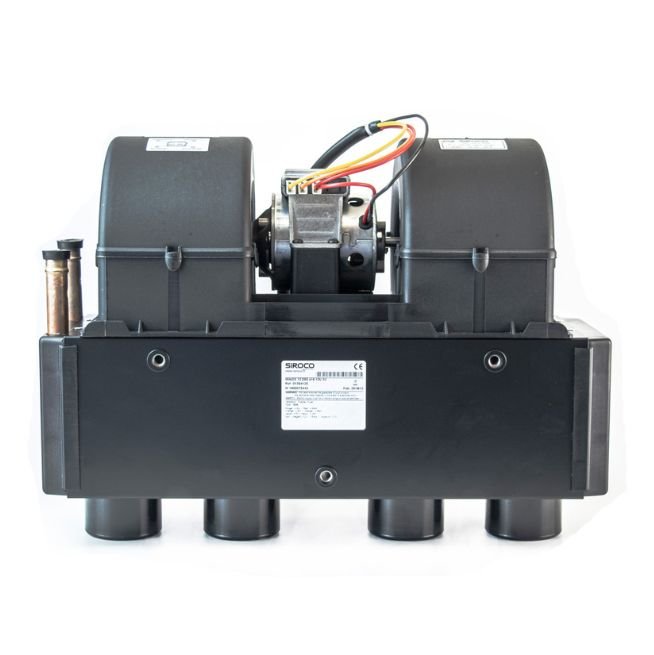

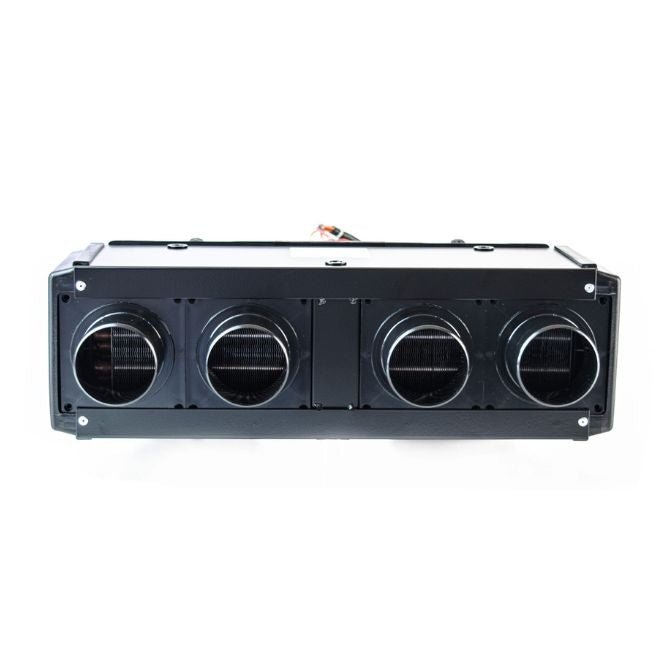

This is a heat exchanger that works as a heater with an active fan and 4 air sleeves of ø 60 mm for uniform distribution of warm air that you can connect up to 4 rooms. It is possible to use air flow adapters to distribute the warm air flow to more rooms (depending on the size and insulation of the room).

Since this liquid heat exchanger can operate independently without the AUTOTERM Flow series heater being turned on, it can be used to circulate air in the room.

The heat exchanger can be connected directly to the engine coolant system or to the AUTOTERM Flow series heaters: Autoterm Flow 5D/5B and AUTOTERM Flow 14D.

This heat exchanger is equipped with a 3-speed fan and 4 air sleeves ø 60 mm for uniform distribution of warm air

For fan speed control, an optional 4-position rotary switch FR018 is required.

4-pin connector kit FR051 available separately - not included in the kit

Technical data:

• Airflow : 700 m3/h
• Compatible duct diameter : ø 60 mm
• Voltage: 12V
• Heat output, ethylene glycol : 11.9 kW
• Electric power : 250 W
• Weight : 4.6 kg
• Ethylene glycol inlet and outlet : ø 16 mm
• Maximum allowable internal temperature : 100°C
• Maximum internal temperature achievable with AUTOTERM Flow series heater : 88°C

Link: installation manual

Manufacturer: SIROCO
