Push window DOMETIC special for motorhomes, vans and caravans
Product description:

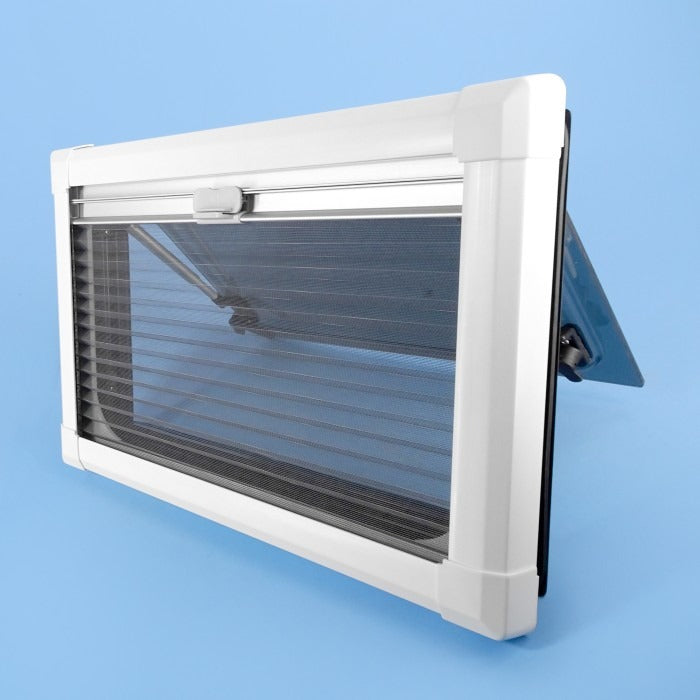

This Push window double glazing is the ideal solution to equip your motorhome, converted van, van or caravan. Designed to offer maximum comfort and safety, it comes with an inner frame integrating a mosquito net and a blackout blind, to ensure both optimal ventilation and complete darkness when you want it.
Thanks to its easy opening system and its acrylic double glazing, the Window provides excellent thermal and sound insulation. Its robust design and simple installation make it a preferred choice for many leisure vehicle converters.
Advantages of the Push window Dometic:
-

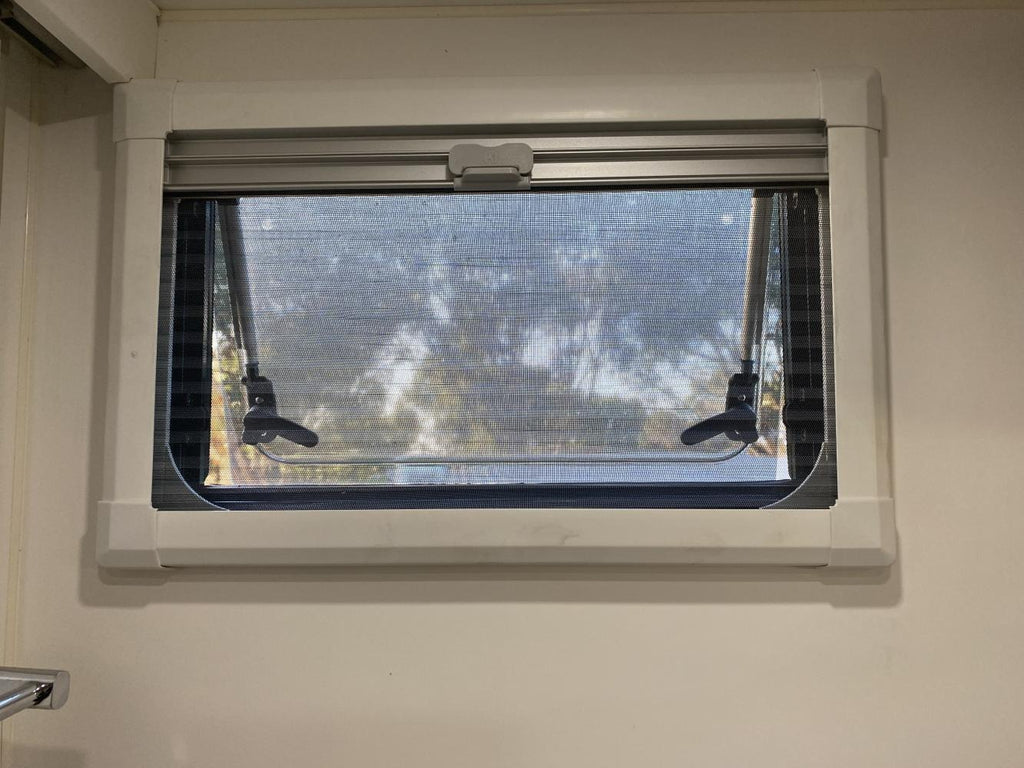

Optimal ventilation thanks to its projectable opening.
-

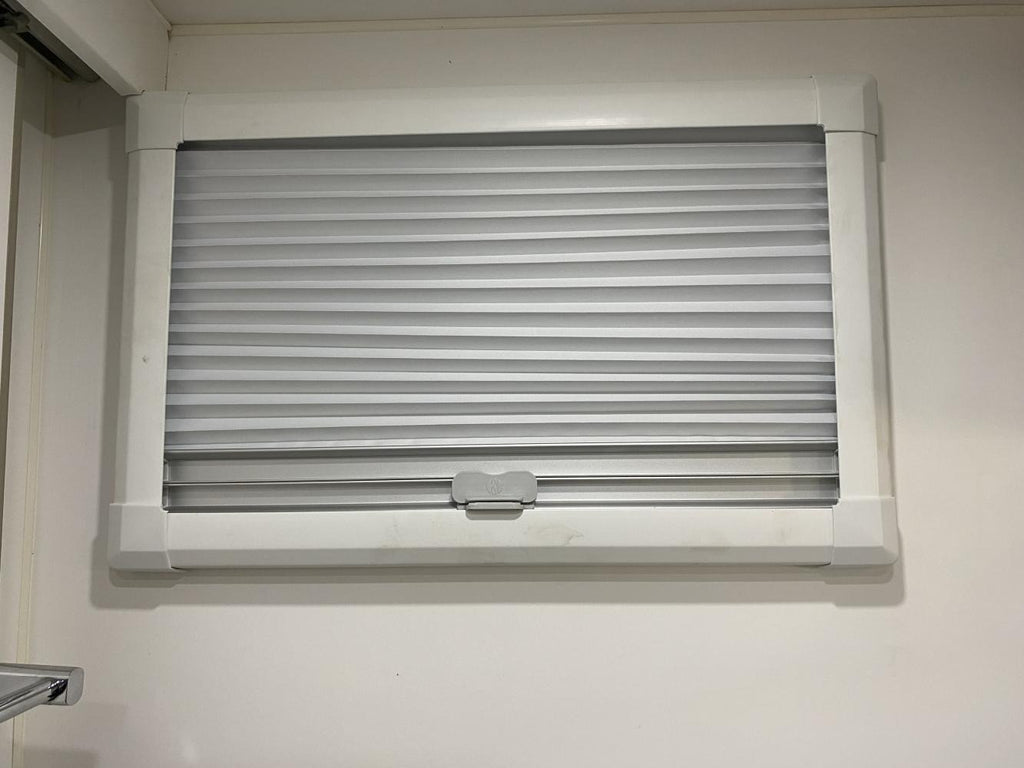

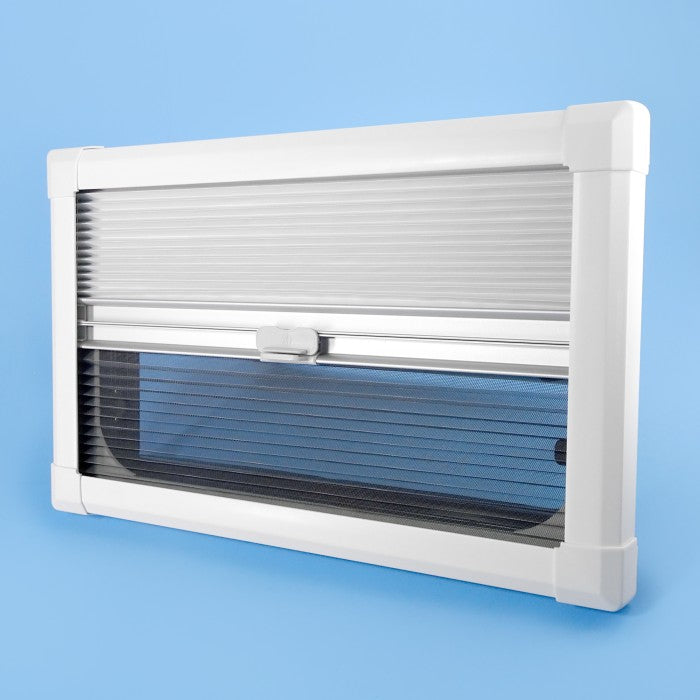

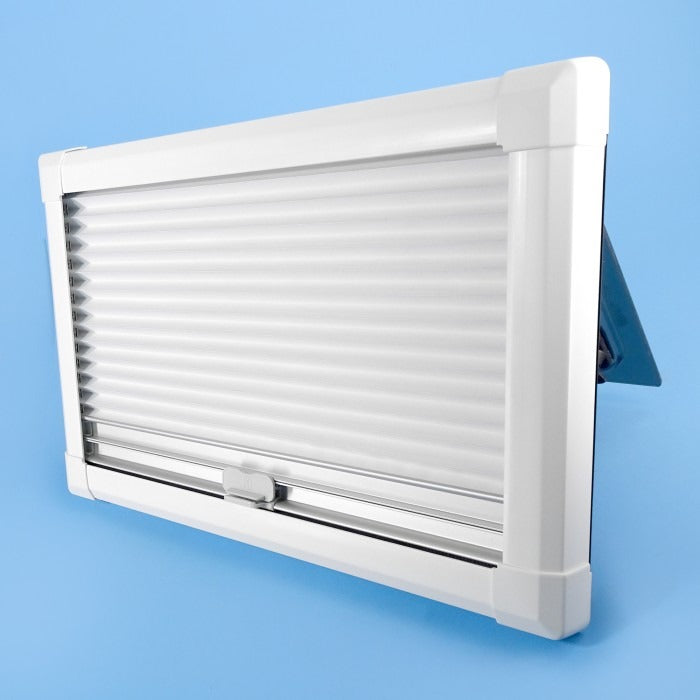

Maximum comfort: blackout blind + mosquito net integrated into the frame.
-
Effective insulation thanks to the double glazing.
-
Enhanced security: impossible to remove the Window from the outside.
-
Easy and quick installation for walls from 26 to 41 mm.
-
Durable quality with robust and resistant materials.
Technical specifications:
-

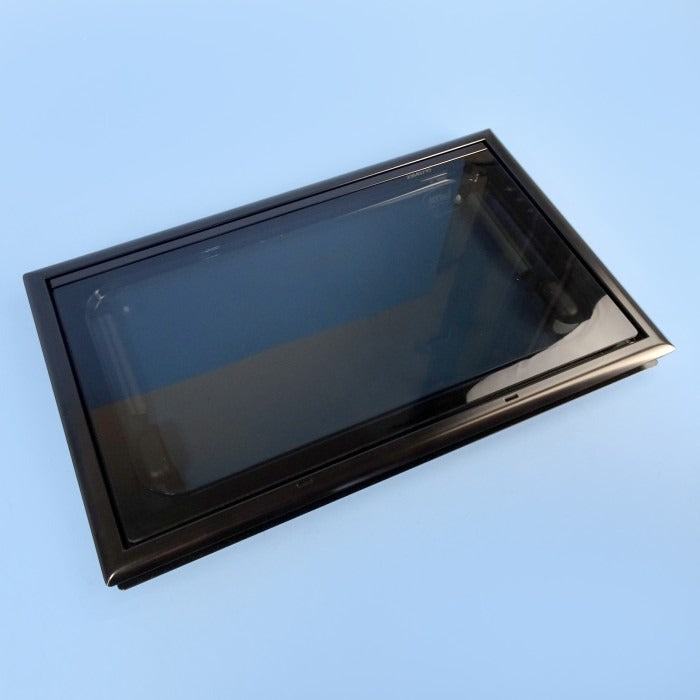

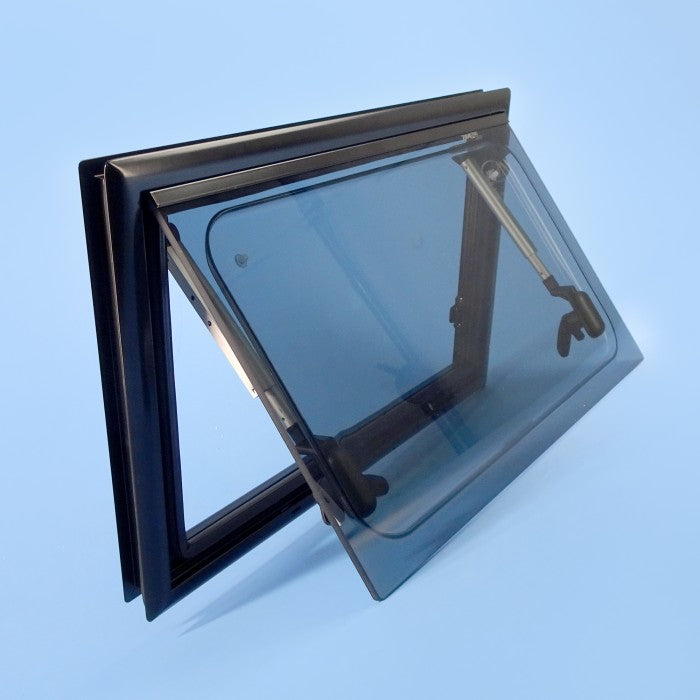

Window acrylic double glazing.
-

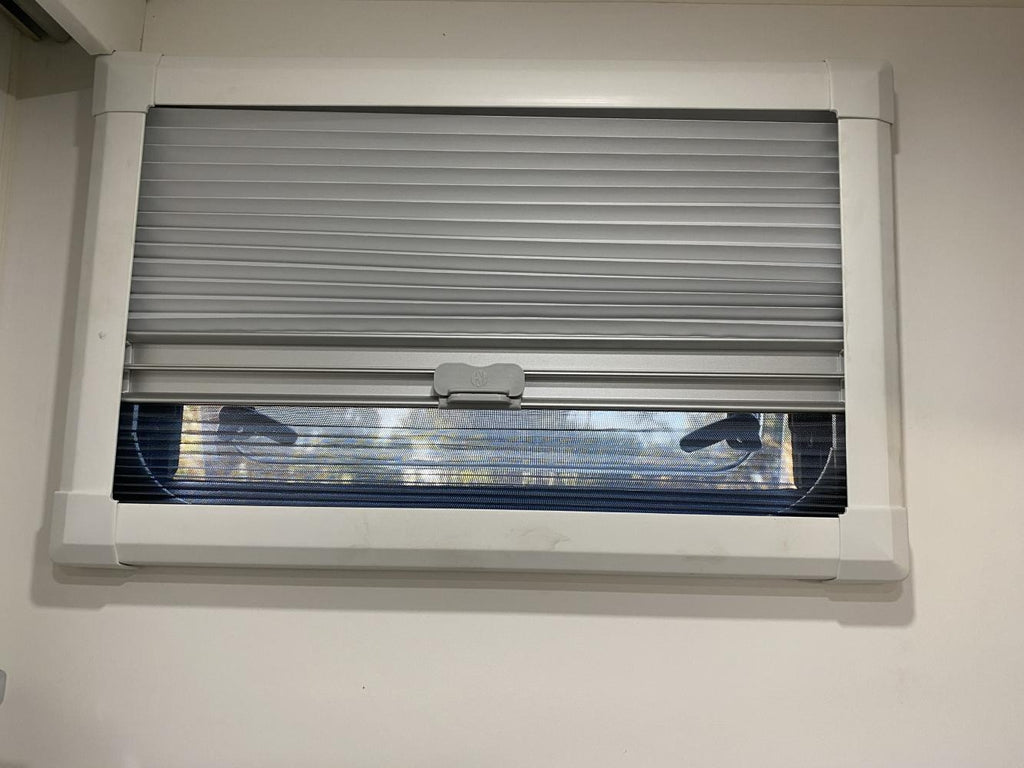

Cream white inner frame with mosquito net and blackout blind.
-
Black outer frame.
-
Available in several sizes according to your needs.
Why choose this Window?
Versatile and reliable, this Push window represents the essential reference for motorhome, van, camper van and caravan fittings. It combines design, comfort, robustness and safety, all with an installation accessible to everyone.
How to choose the right size of Window for my van?
To choose the right size of Window, simply transfer the cut-out & overall dimensions to the desired location on your bodywork. If the recess (= cut-out) & the outside of the Window (= overall dimensions) are not obstructed, then you can install the Window.
Highlights of the Windows for vans & motorhomes DOMETIC SEITZ S4 series projectable

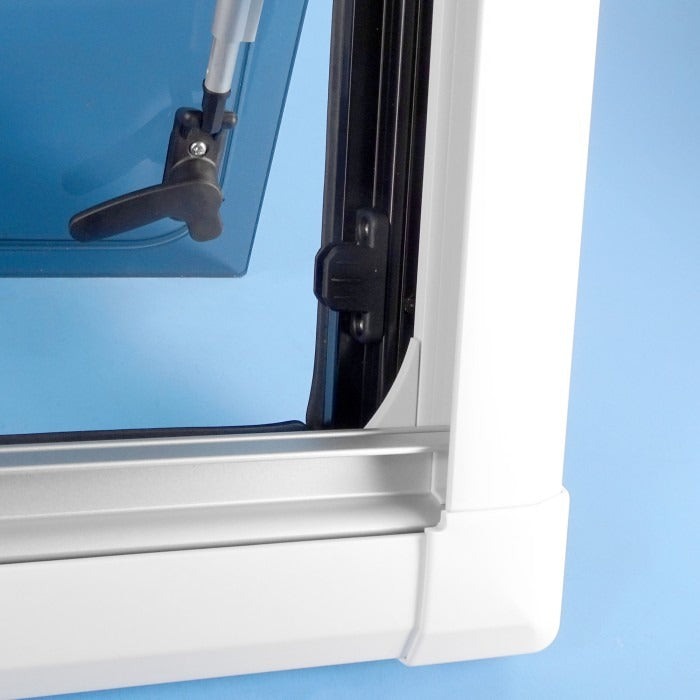

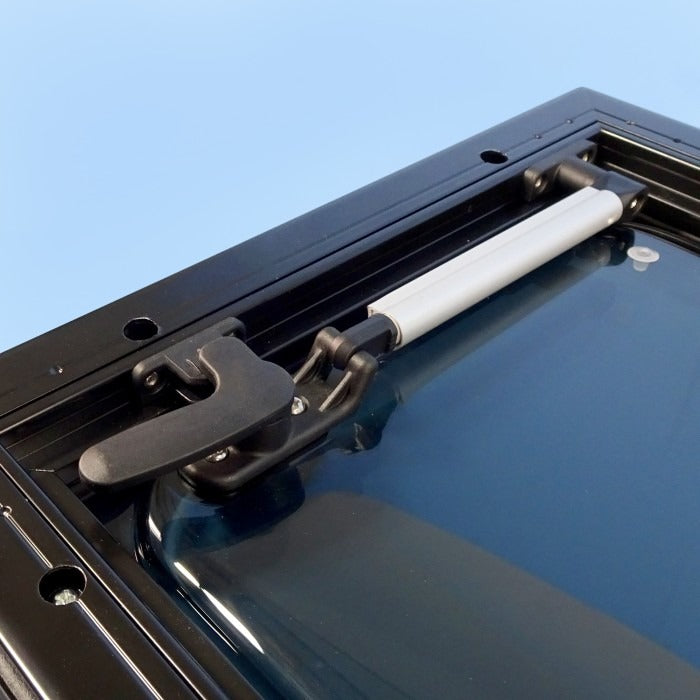

- Total comfort: one-hand operable system, also integrating a mosquito net and a blackout blind
- Easy handling
- Maximum ventilation
- Good thermal insulation: sunshade roller with aluminum coating
- Simple and quick installation
- Robust quality with acrylic glass and double glazing
- Very secure: double glazing and impossible to remove the Window from the outside
- Great flexibility: suitable for wall thickness from 26 to 41 mm
Technical specifications of the Window S4 from DOMETIC
- Blind and mosquito net included in the inner frame
- Cream white inner frame
- Black outer frame
|
Model
W x H (mm)
|
Overall dimensions
W x H (mm)
|
Recess dimensions
W x H (mm)
|
Weight
(kg)
|
|
300 x 500
|
343 x 531
|
293 x 498
|
4.3
|
|
500 x 300
|
544 x 330
|
499 x 298
|
4
|
|
350 x 500
|
393 x 531
|
343 x 498
|
4.1
|
|
500 x 450
|
544 x 480
|
500 x 448
|
5
|
|
550 x 580
|
594 x 611
|
548 x 578
|
6.3
|
|
600 x 600
|
644 x 631
|
599 x 599
|
7
|
|
700 x 300
|
745 x 330
|
700 x 298
|
5.3
|
|
|
|
|
|
700 x 400
|
745 x 430
|
702 x 398
|
6.1
|
|
700 x 450
|
741 x 481
|
701 x 448
|
6.5
|
|
700 x 600
|
745 x 631
|
702 x 599
|
7.7
|
|
|
|
|
|
800 x 450
|
846 x 481
|
801 x 450
|
7.1
|
|
900 x 400
|
948 x 430
|
902 x 398
|
7.5
|
|
900 x 450
|
948 x 481
|
902 x 448
|
8
|
|
900 x 500
|
948 x 531
|
902 x 499
|
8.4
|
|
900 x 550
|
948 x 581
|
902 x 549
|
8.6
|
|
900 x 600
|
948 x 631
|
902 x 599
|
9.2
|
|
1000 x 500
|
1048 x 531
|
1002 x 499
|
9.3
|
|
1000 x 450
|
1048 x 481
|
1002 x 448
|
9.9
|
|
1200 x 350
|
1249 x 380
|
1168 x 282
|
8.8
|
|
1200 x 600
|
1249 x 631
|
1201 x 599
|
12.5
|
|
1300 x 550
|
1343 x 581
|
1298 x 549
|
13.8
|
|
1300 x 600
|
1343 x 631
|
1297 x 599
|
14.2
|
