Description:

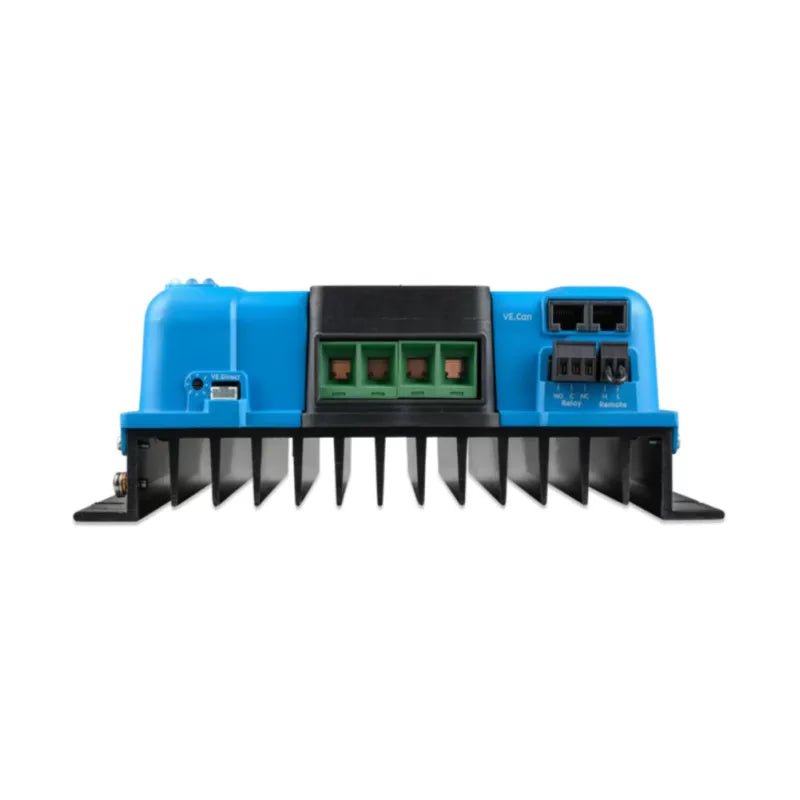

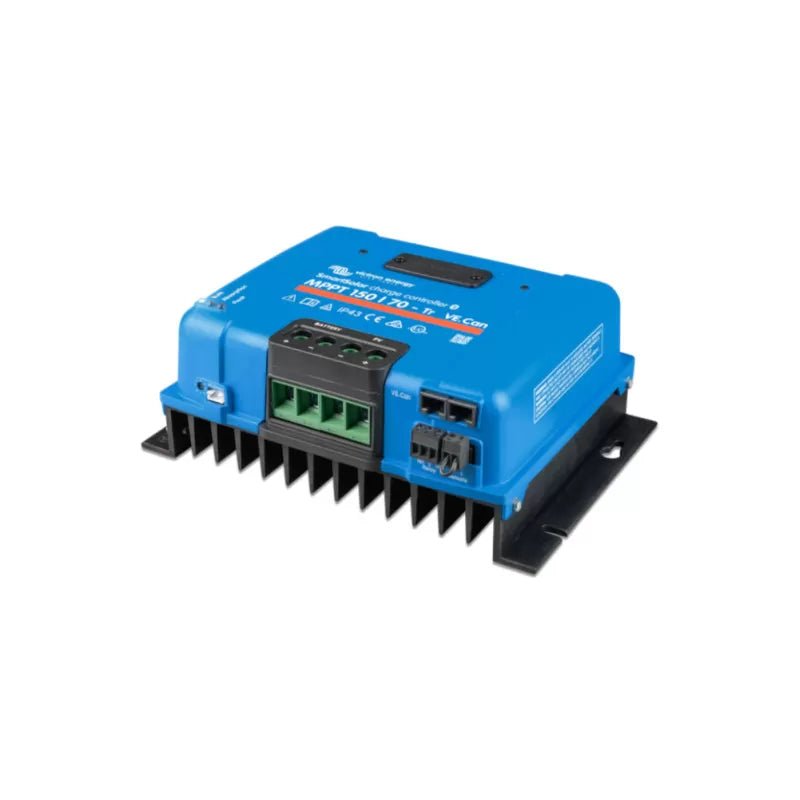

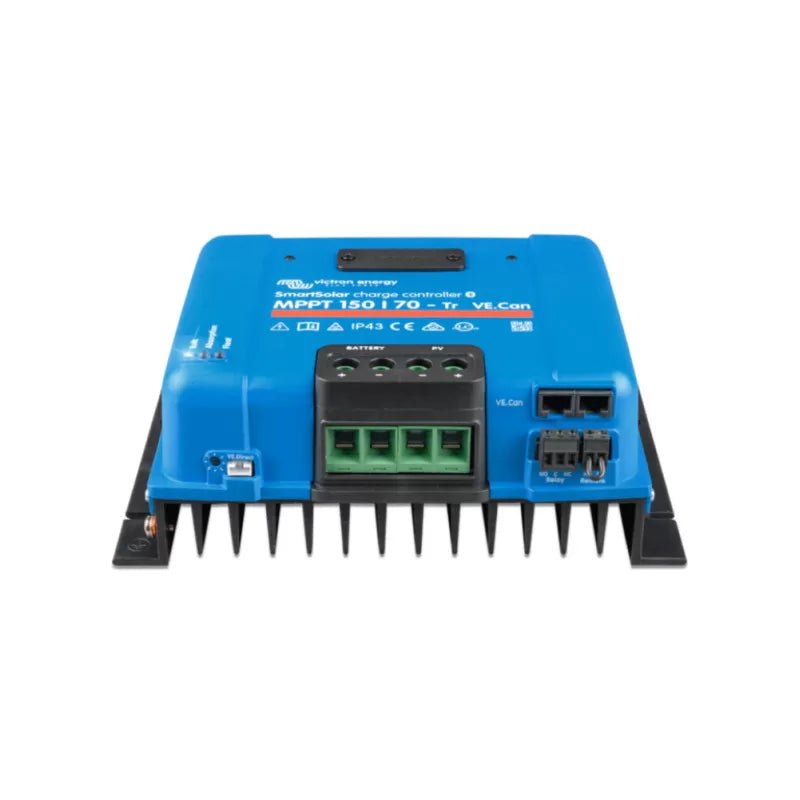

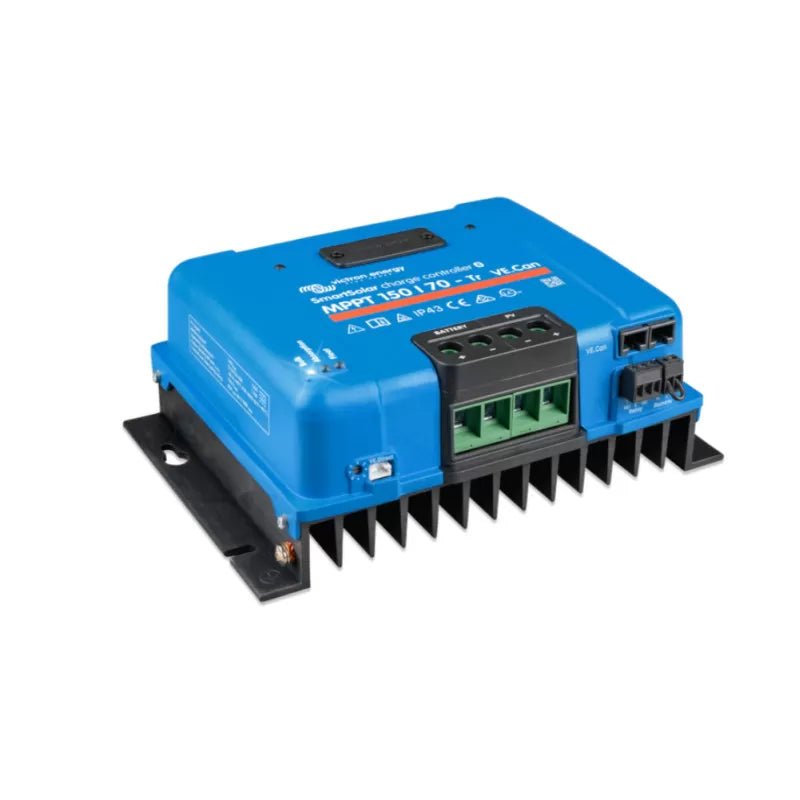

The VICTRON SmartSolar MPPT 150/70-TR is a powerful and compact solar charge controller designed to optimize the charging of your 12V, 24V, 36V, or 48V batteries from a photovoltaic array.

Thanks to MPPT (Maximum Power Point Tracking) technology, it continuously adjusts voltage and current to extract maximum energy from solar panels, even under variable sunlight. Ideal for boats, campervans, Motorhomes, or off-grid installations, it ensures smart and efficient energy management.

With a maximum input voltage of 150V and an output current up to 70A, this model supports up to:

• 1000 W of panels at 12V

• 2000 W at 24V

• 3000 W at 36V

• 4000 W at 48V

Reliability and connectivity
The SmartSolar 150/70-TR is equipped with protections against overloads, short circuits, overheating, and polarity reversals, ensuring safe use. Its screw terminal connection facilitates installation in tight spaces.

With the VictronConnect app (via optional Bluetooth dongle), you can monitor solar production in real time, view 30-day history, and adjust settings. It can also be connected to a computer or integrated into a VE.Can network for centralized control.

Main features:

• Max PV input voltage: 150V

• Max charge current: 70A

• System voltages: 12 / 24 / 36 / 48V (auto-detection)

• Max PV power: 1000W (12V) / 2000W (24V) / 3000W (36V) / 4000W (48V)

• Consumption: 35 mA (12V) / <20 mA (48V)

• Protection rating: IP22

• Dimensions: 185 x 250 x 95 mm – Weight: 3 kg

A reliable, efficient, and smart solar regulator, ideal for ensuring the energy autonomy of your onboard or fixed solar installations.
