Description:

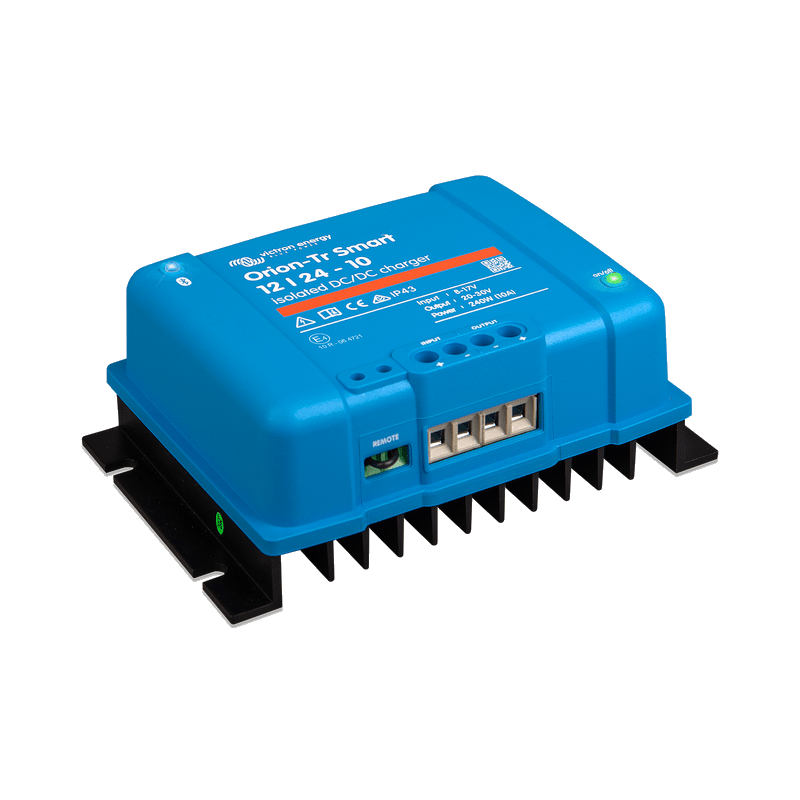

The VICTRON Orion-Tr Smart 12/24-10A Isolated is a DC/DC booster charger designed to recharge your 24V auxiliary batteries from a 12V system. Robust, smart, and reliable, it is ideal for Motorhomes, campervans, and boats, including vehicles equipped with smart alternators (Euro 5 & 6).

Compatible with AGM, GEL, and Lithium batteries, it applies a 3-stage charging cycle (Bulk, Absorption, Floating) to ensure fast and efficient recharging. Its galvanic isolation protects your installations against electrolytic corrosion, making it particularly suitable for steel or aluminum boats.

Built-in Bluetooth allows configuration and monitoring of the charge via the VictronConnect app. Multiple units can be installed in parallel to increase charging power. Additionally, the Power Supply mode allows the Orion to be used as a continuous power source for your electrical equipment.

Main features:

• Input: 8 – 17 V

• Nominal output: 24.2 V (adjustable 20 – 30 V)

• Output current: 10 A (15 A max peak)

• Power: 280 W at 25 °C / 240 W at 40 °C

• Efficiency: 88%

• Galvanic isolation: 200 VDC

• 3-stage charging algorithm

• Protections: short circuit, overheating, low voltage

• Protection rating: IP43 (electronics) / IP22 (connections)

• Dimensions: 130 x 186 x 70 mm – Weight: 1.3 kg

A smart and robust booster charger, ideal for extending the life of your batteries and ensuring reliable power supply in any situation.
