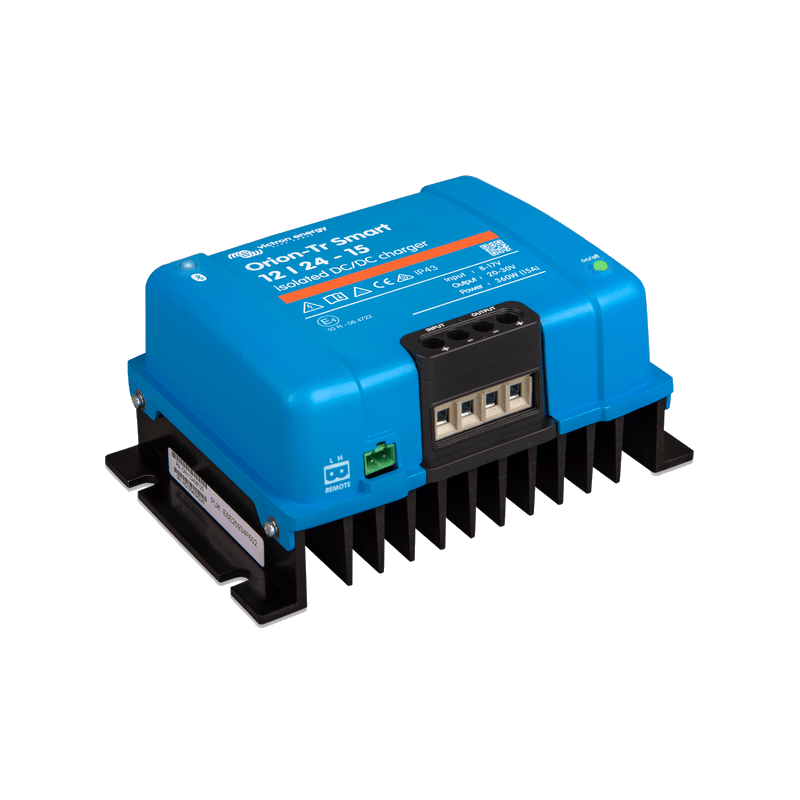

VICTRON Orion-Tr Smart 12/24-15A Isolated – DC/DC Booster Charger with Bluetooth

Description:
The VICTRON Orion-Tr Smart 12/24-15A Isolated is a DC/DC booster charger specially designed to recharge your 24V auxiliary batteries from a 12V system. Robust and intelligent, it is perfectly suited for motorhomes, converted vans, and boats, including vehicles equipped with Euro 5 & 6 smart alternators.

Thanks to its 3-stage charging algorithm (Bulk, Absorption, Float), it ensures fast, efficient, and safe recharging for AGM, GEL, and Lithium batteries. Its galvanic isolation protects your installations against electrolytic corrosion, a major advantage for steel or aluminum boats.

The built-in Bluetooth allows monitoring and configuring the charger directly via the VictronConnect app. It is also possible to use the Orion in parallel with multiple units to increase power, or in Power Supply mode to directly power your electrical equipment.

Main features:

• Input: 8 – 17 V

• Nominal output: 24.2 V (adjustable 20 – 30 V)

• Output current: 15 A (25 A max peak)

• Power: 430 W at 25 °C / 360 W at 40 °C

• Efficiency: 88 %

• Galvanic isolation: 200 VDC

• Built-in Bluetooth (VictronConnect)

• Protections: short circuit, reverse polarity, overheating, low voltage

• Protection rating: IP43 (electronics) / IP22 (connections)

• Dimensions: 130 x 186 x 70 mm – Weight: 1.8 kg

A reliable, connected, and secure booster charger, ideal to ensure the energy autonomy of your onboard installations.
