Description :

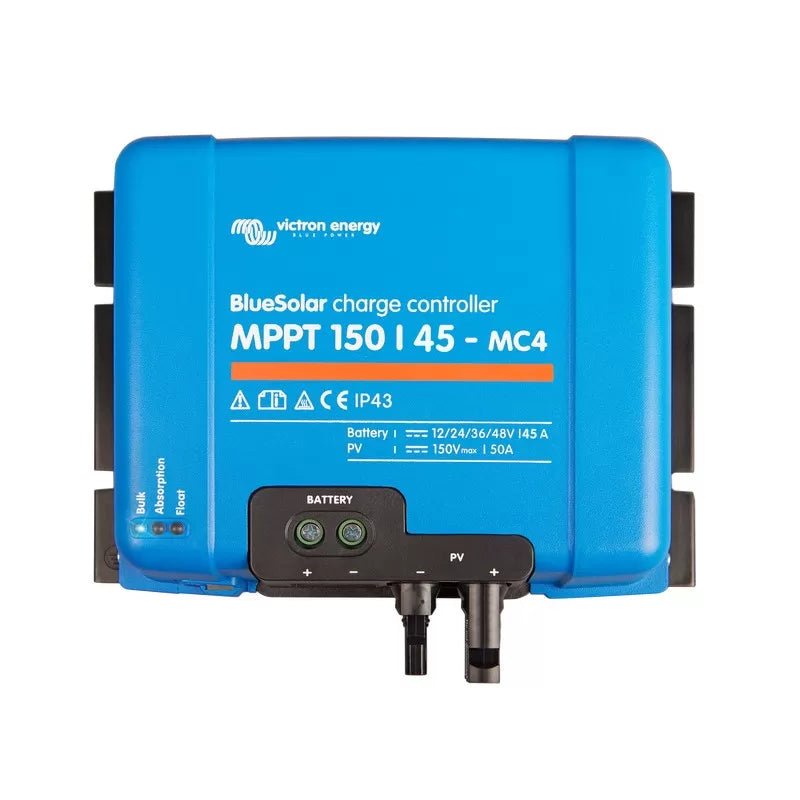

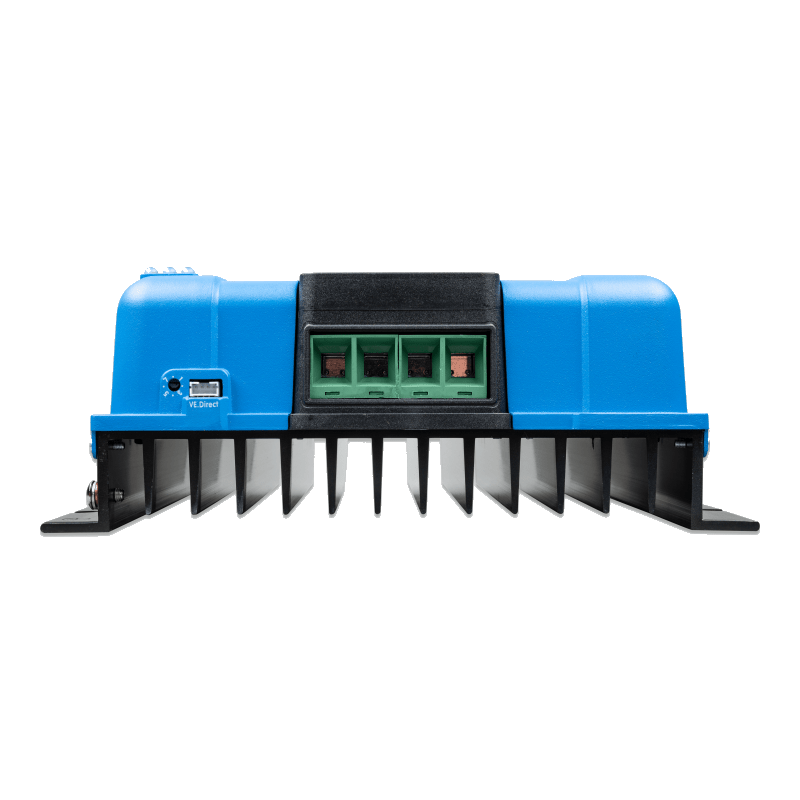

The VICTRON BlueSolar MPPT 150/45 solar charge controller is a powerful and reliable device, capable of delivering up to 45A of charging current. With a maximum input voltage of 150V, it is perfectly suited for large solar panel installations, whether in a motorhome, a camper van, a boat, or a heavy vehicle.
Optimal performance and efficiency
Thanks to MPPT (Maximum Power Point Tracking) technology, the BlueSolar continuously optimizes voltage and current to ensure the highest possible efficiency, even under variable weather conditions or rapid changes in sunlight.
This controller accepts up to 150V input, allowing multiple solar panels to be connected in series without difficulty. With an output power of 45A, it can manage up to 650W of solar panels on a 12V battery, and up to 2600W on a 48V battery.
Reliability and ease of use
Easy to install, compact and robust, the BlueSolar MPPT 150/45 increases your energy autonomy by ensuring optimal charging of your auxiliary batteries. Its reliability makes it an ideal choice for onboard electrical systems.
Technical specifications :
-
Battery voltage (automatic selection): 12V, 24V, 36V, and 48V
-
Maximum charging current: 45A
-
Maximum solar panel power:
-
650 W (12V)
-
1300 W (24V)
-
2600 W (48V)
-
Maximum input voltage: 150V
-
No-load consumption: 10 mA
-
Absorption and float charge voltage: adjustable
-
Built-in protections: short circuit, reverse polarity, overload, low battery, overheating
-
Protection rating: IP43 (electronics) / IP22 (connection terminals)
-
Dimensions: 130 x 186 x 70 mm
-
Weight: 1.25 kg
The VICTRON BlueSolar MPPT 150/45 solar charge controller is the ideal solution to optimize solar energy production and ensure reliable management of your batteries, whether traveling, at sea, or on the road.
