Victron MultiPlus 12/800/35 – 12V Battery Charger & 230V Inverter, 35A, 800VA

Description:
Discover the Victron MultiPlus 12/800/35, a high-quality all-in-one battery charger and inverter designed for camper vans, motorhomes, and boats. Offering up to 35A of charging current and 800VA of inverter power with automatic transfer switching, this compact unit ensures reliable off-grid energy management wherever you travel.

Smart and Reliable Power Management
The Victron MultiPlus combines a 12V 35A battery charger with a pure sine wave inverter delivering 800VA (700W continuous). Once installed, the system automatically switches between external power sources (shore power, generator, or grid) and the inverter. The battery charger activates instantly when an external source is available, while the inverter ensures seamless power supply to your onboard 230V network. With a transfer time of less than 20 milliseconds, even sensitive electronics remain protected.

Efficient and Safe Operation
The MultiPlus offers peak power of 1600W, and its programmable relay provides additional protection by shutting down the inverter in case of low battery voltage. The “Search Mode” further reduces idle consumption by activating the inverter only when a load is detected.

Key Advantages:

• Pure sine wave inverter: 800VA / 700W continuous

• Battery charger: 35A charging current

• Ultra-fast automatic transfer (<20ms)

• Search Mode for reduced idle consumption

• Peak power: 1600W

• Built-in temperature sensor

• Fan-cooled with robust metal housing

• Protection rating: IP21

Installation Made Easy

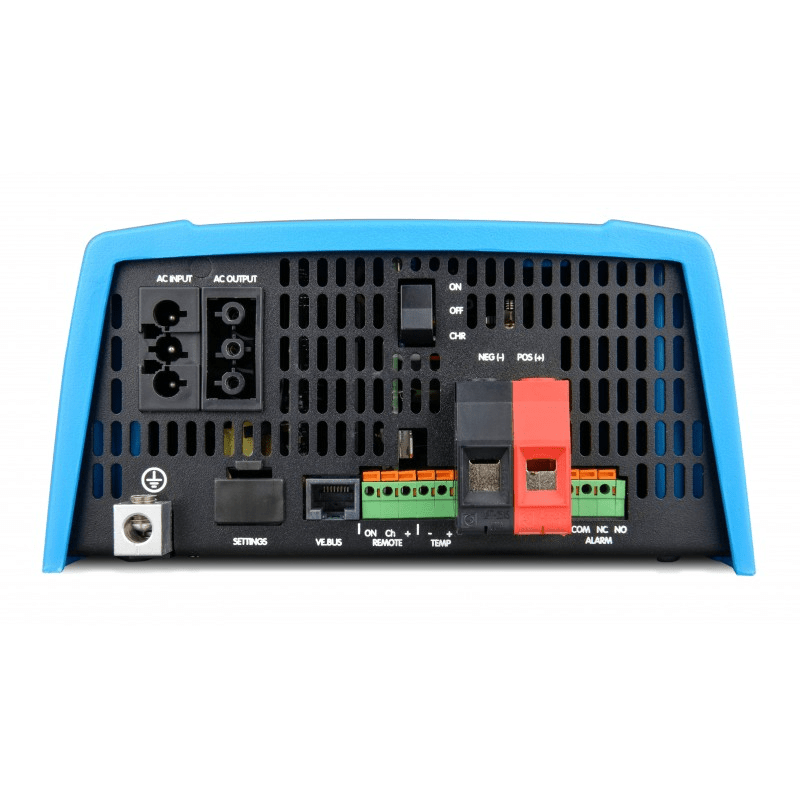

Compact and easy to install in a technical compartment, the MultiPlus connects directly to your 12V battery, external 230V input (shore power, generator, etc.), and your onboard 230V system. The VE.Bus communication port allows seamless integration with other Victron devices for advanced energy management.

Compatibility:

• Camper vans & motorhomes

• Converted vans

• Boats & yachts

• AGM, GEL, and Lithium batteries

Technical Specifications:

• Output power: 800VA / 700W continuous

• Peak power: 1600W

• Output voltage & frequency: 230V / 50–60Hz

• Input voltage: 9.5–17V

• Charger current: 35A

• No-load consumption: 6W

• Search Mode consumption: 2W

• Operating temperature: –40 °C to +65 °C

• Max humidity: 95%

• Protection class: IP21

• Dimensions (H x W x D): 360 x 240 x 100 mm

• Weight: 6.4 kg

• Remote control ON/OFF: optional
