Y ⌀ 90 x 60 x 60 mm (120°C angle)

🎁CADEAU DE BIENVENUE : 5% supplémentaires à partir de 599€ d'achats

Détails de l'offre
  • Valable sur l'ensemble du catalogue
  • Cumulable avec la livraison gratuite
  • Appliquée automatiquement au moment de passer commande
  • Voir la description complète
€20,90
€29,90
€
  • Retours et échanges 30 jours
  • Livraison offerte à partir de 399€
  • Produit compatible vans aménagés et camping-cars
  • Conseils et assistance technique gratuits
  • Conseils et assistance technique gratuits
  • Paiements sécurisés et disponibles en 4x
Product description

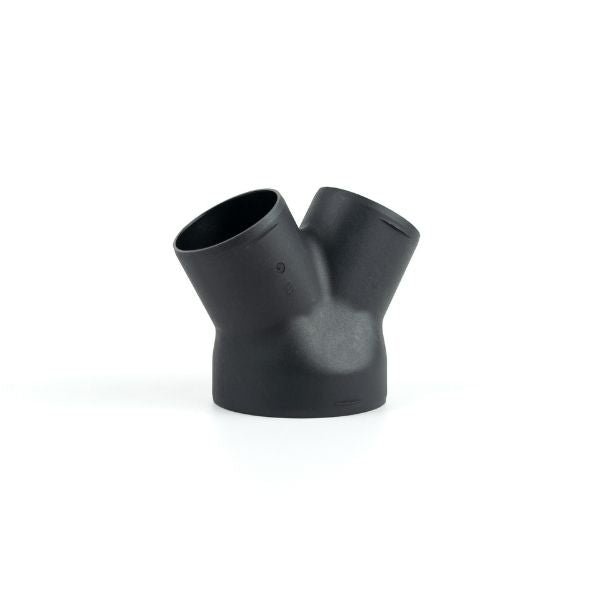

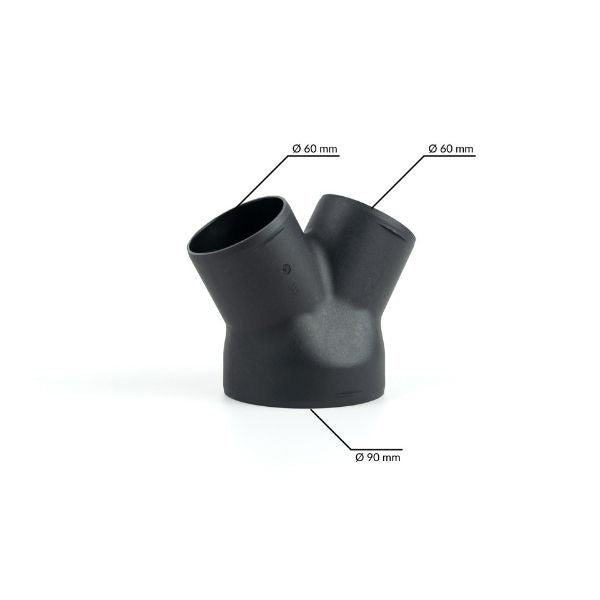

Y Adapter Ø 90 x 60 x 60 mm

REF: DE041

Y-shaped adapter with a 120° angle for heating duct Ø 90 mm (DE015) and heating duct Ø 60 mm (DE013).

Suitable for the following heaters:

  • Autoterm Air 4D

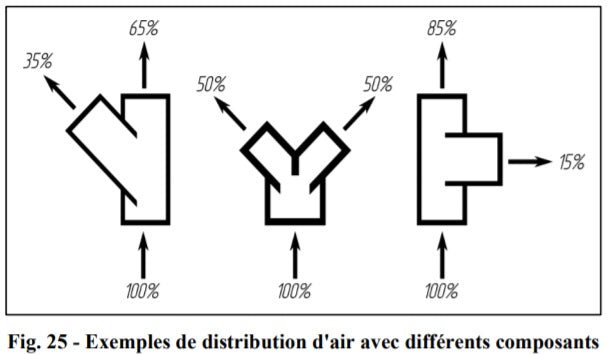

Information : T or Y adapters can be added to the heater’s air duct to distribute the warm air (Fig. 26). The adapters reduce the total warm air flow (Fig. 25). To ensure that the option you have selected for the air duct installation is acceptable and will not cause a significant reduction in warm air flow or overheating of the heater, you must consider the air distribution with the different components.

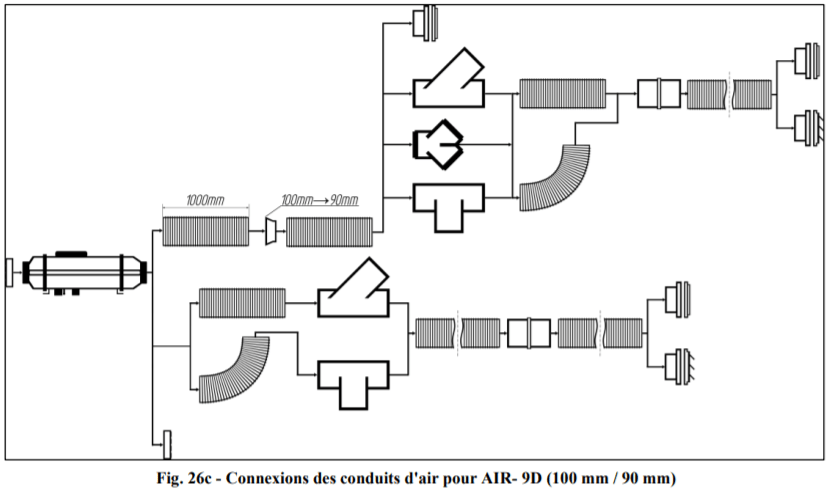

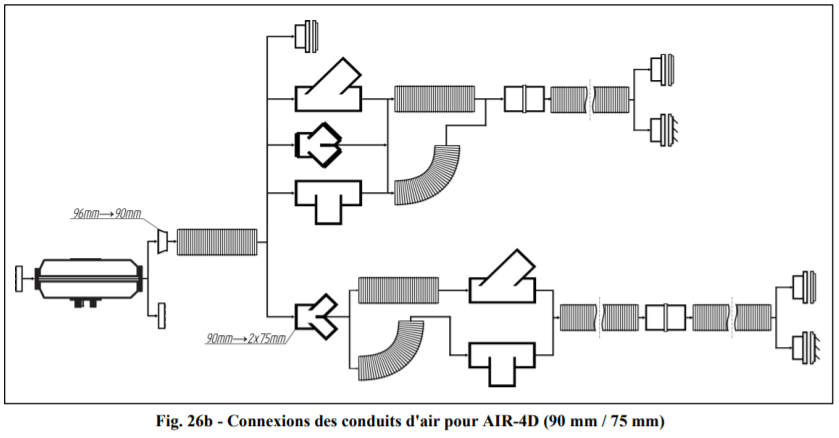

The air duct system must always start with the designated diameter for the heater type (2D: 60 mm, 4D: 90 mm, 9D: 100 mm), after which this diameter can be reduced using different adapters (see Fig. 6b/c). Using smaller diameters than those designated at the start of the system, at the warm air outlet of the unit, causes overheating of the heater. The first meter of the air duct should be as straight as possible and match the heater’s diameter.

The air duct system should be as simple as possible. Complex systems cause heat loss.

When using dual-channel air ducts, one channel must always end with a non-closable air outlet.

Please read the installation manual instructions, p. 28 air duct.

Y 90 x 60 x 60 mm
