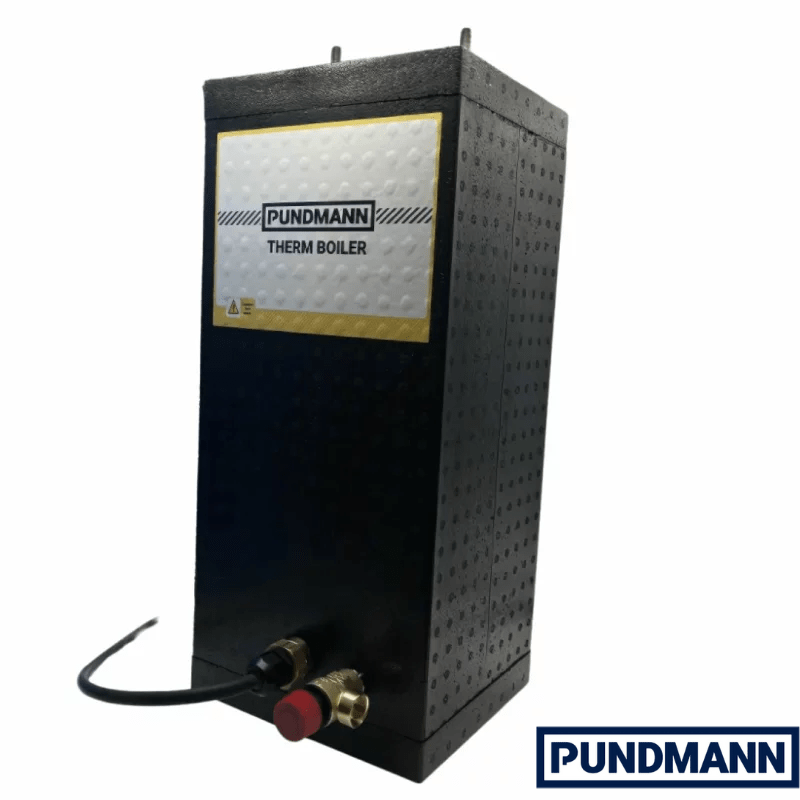

Vertical boiler Pundmann Therm 9L, compact TOWER design.
Available in 12V/200W or 230V/500W.
Ideal for motorhomes, boats, food trucks, and caravans.
Vertical boiler Pundmann Therm 9L TOWER 12V/200W:
Description:
The Pundmann Therm 9L TOWER boiler is available in two versions (12V/200W and 230V/500W) to meet various electrical needs. Its vertical format (228 x 200 x 500 mm) allows it to fit into tight spaces, such as a cabinet or service column, without encroaching on the living area. With a capacity of 9 liters, it provides a sufficient supply of hot water for daily uses (quick shower, dishwashing, etc.) in a motorhome, boat, or food truck.
Compared technical specifications:
|
9L TOWER 12V/200W
|
9L TOWER 230V/500W |
| Capacity |
9 liters |
9 liters |
| Voltage / Power |
12V / 200W |
230V / 500W |
| Heating time |
~180 min (depending on conditions) |
~100 min (depending on conditions) |
| Dimensions (mm) |
228 (W) x 200 (H) x 500 (D) |
228 (W) x 200 (H) x 500 (D) |
| Weight |
8.40 kg |
8.40 kg |
| Installation |
Autonomous systems (battery) |
230V mains power |
| References |
No. 77895 (GTIN 4262354882848) |
No. 77894 (GTIN 4262354882831) |
Advantages:
-
Vertical “TOWER” format: reduced width, ideal for a closet, technical corner, or niche.
-
Robust and modern design: tank designed to withstand vibrations in vehicles and marine conditions (boats, yachts).
-
Multiple applications: motorhomes, caravans, mobile service stations, boats, yachts, food trucks.
-
Safe temperature rise: simple resistance for easy maintenance.
-
Controlled weight: 8.40 kg, limiting the impact on your vehicle's payload.
Installation:
-
Mandatory vertical position: the TOWER format improves water circulation and ensures even heating.
-
Solid fixings: provide rigid supports and straps to limit movement during travel (source: Pundmann installation documentation).
-

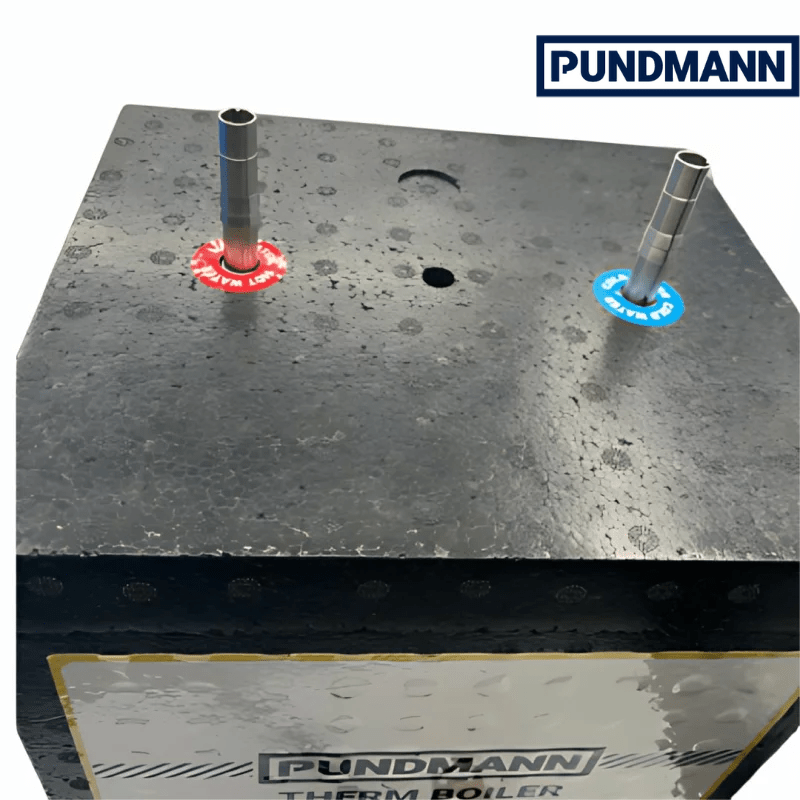

Water connection: two connections (cold water inlet / hot water outlet) to be sealed carefully to avoid leaks.
-

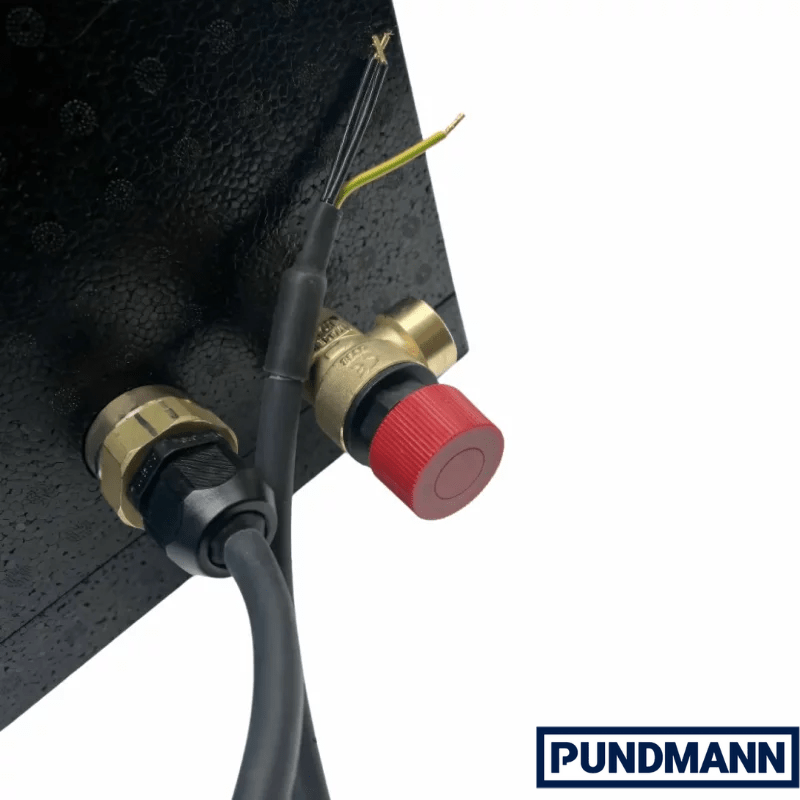

Electrical connection:
- 12V version: ensure the appropriate cable section (200W) and fuse protection.
- 230V version: install a circuit breaker or differential for user safety.
Typical applications:
-
Motorhome or caravan: benefit from a supply of hot water for a quick shower or dishwashing, even in total autonomy (12V) or at a campsite (230V).
-
Boat or yacht: design adapted to often tight spaces on board, stable operation even in humid environments.
-
Food truck: compliance with hygiene standards and ease of installation, especially if 230V connection is available.
-
Service vehicle: ambulances, mobile workshops, itinerant laboratories in need of hot water on site.
