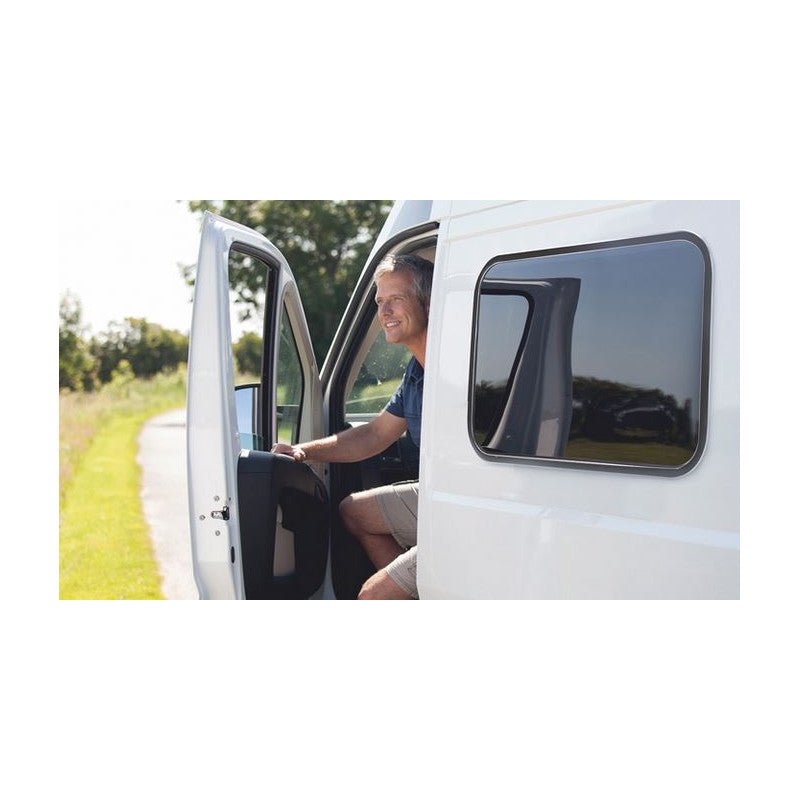

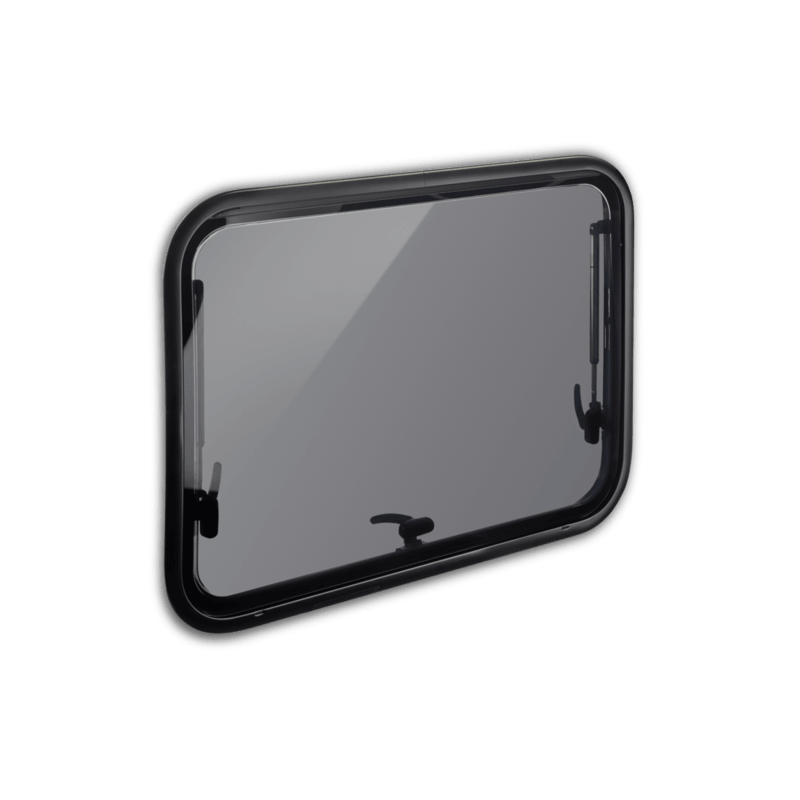

Push window CURVE for vans with curved walls

Technical specifications

• Type: curved push window with acrylic double glazing
• Glazing: dark tinted UV-resistant acrylic double glazing (30% light transmission) with an aluminum outer frame
• Shape: curved glazing, curvature radius 5000 mm — compatible with all panelled vans
• Frame corners: rounded

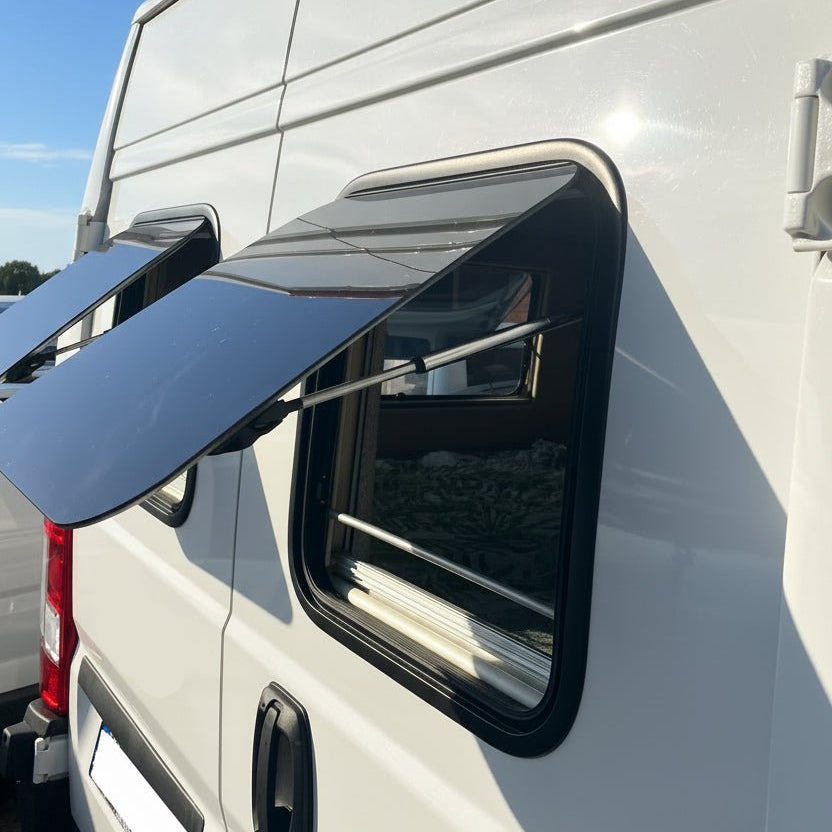

• Opening system: push with safety latch
• Compatible wall thickness: 26 to 75 mm (extendable with a longer fixing screw)
• Inner fixing frame: reinforced aluminum
• Certification: CE 43-R (Europe, UK, Switzerland)
• Average installation time: 1h
• Warranty: 2 years
• Spare parts availability: 5 years

Dimensions

• L × H product = cut-out dimensions
• Overall external dimensions: L+3cm × H+3cm
• Inner finishing frame dimensions: L+8cm × H+8cm

💡 Good to know: only the cut-out dimension matters to check compatibility with your vehicle. The inner finishing frame is mounted raised on the wall — it aesthetically covers the edges of the hole without requiring extra space inside the wall.

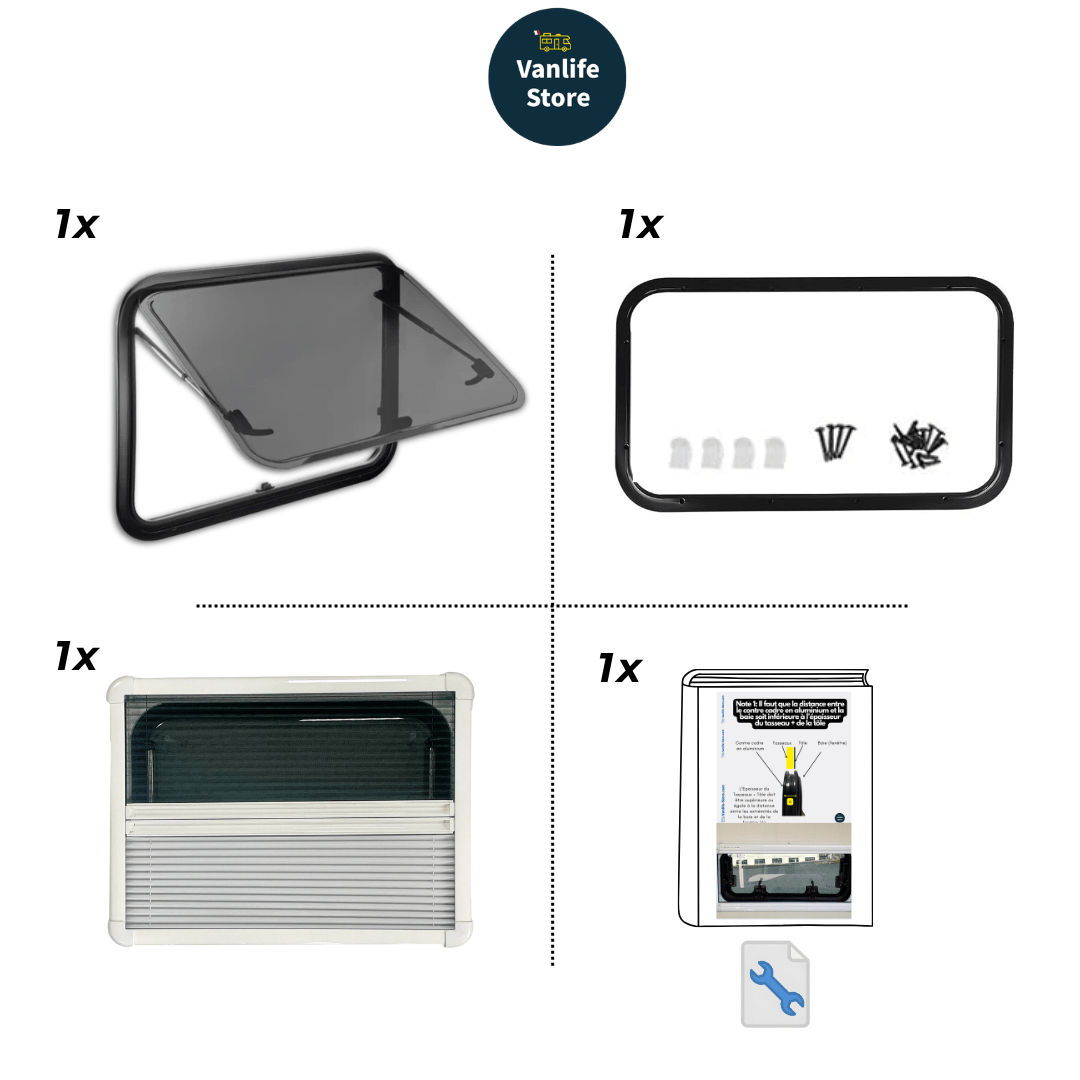

Package contents

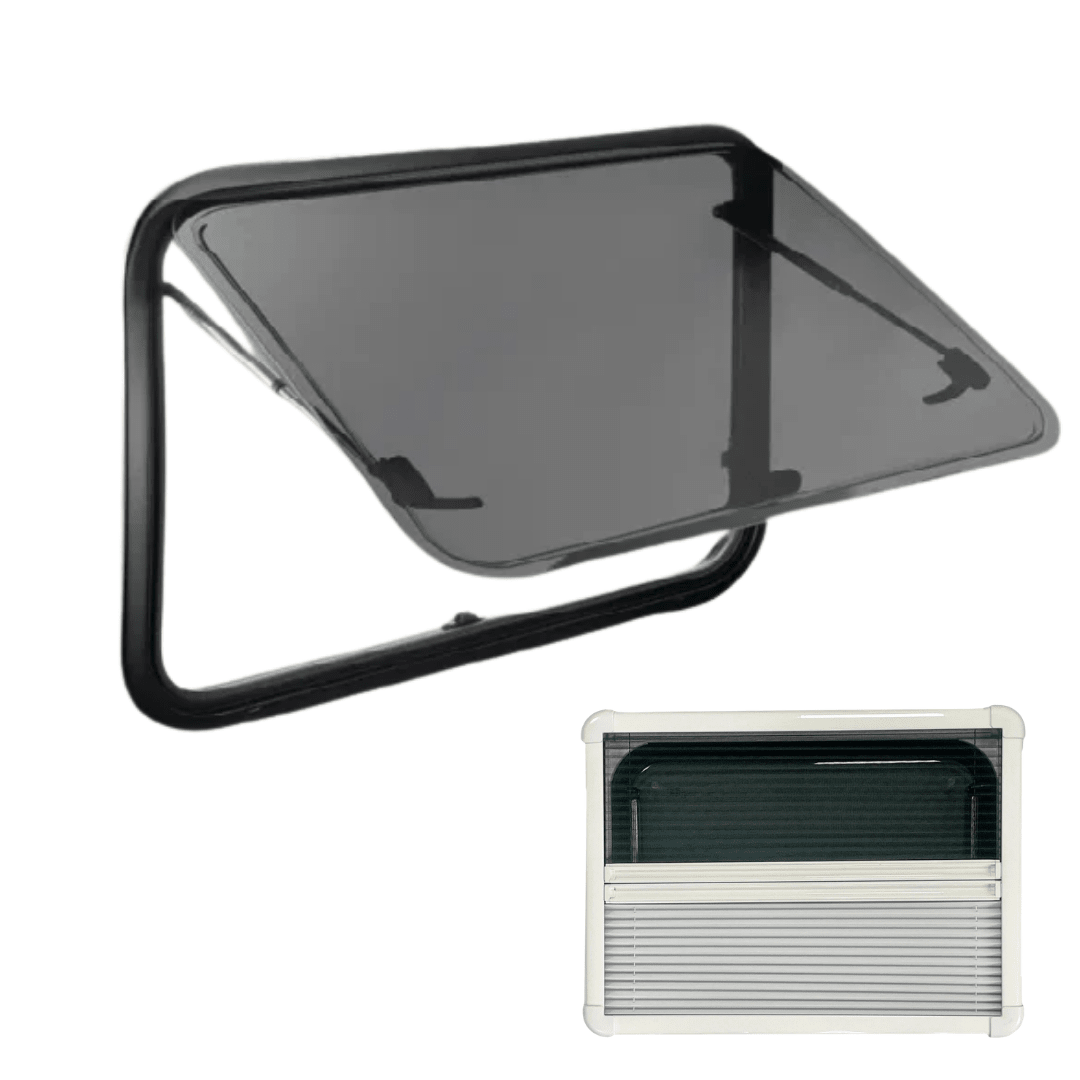

• 1 × Push window CURVE
• 1 × Reinforced aluminum inner fixing frame

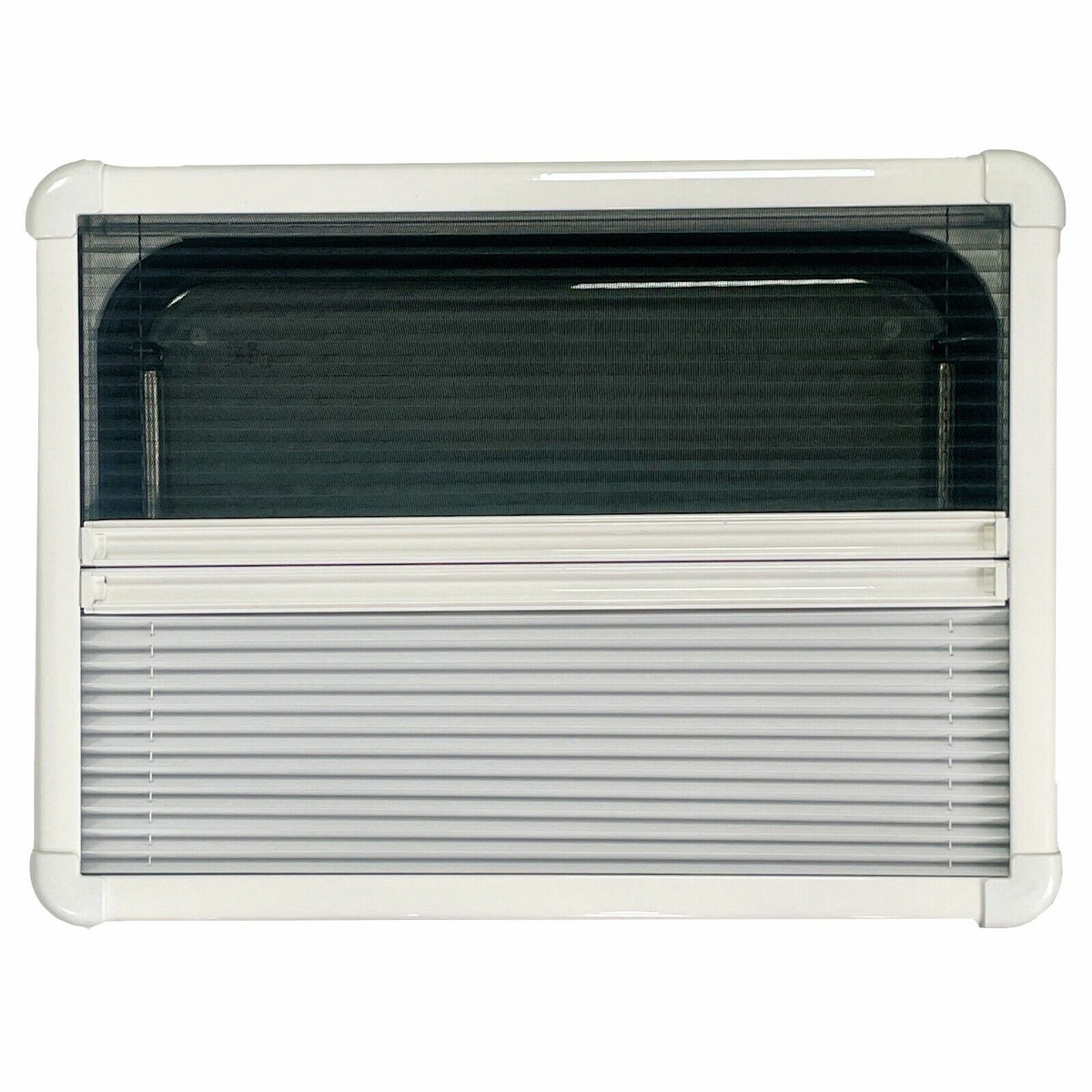

• 1 × Inner finishing frame (blackout blind + fly screen integrated)
• 1 × Complete screw pack
• 1 × Detailed step-by-step installation tutorial

Required for installation:

• 1 tube of Sikaflex 265 (tube only or complete kit)

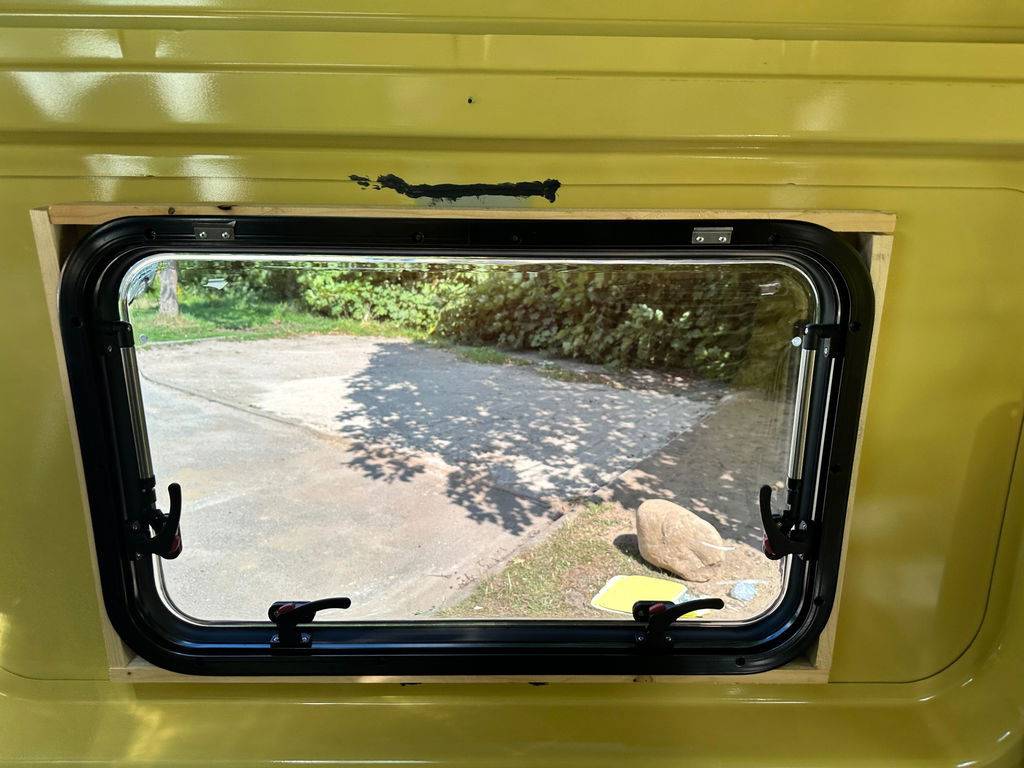

• Curved battens or wooden frame to match the curvature of the window (key difference from a flat window)
• Jigsaw + screwdriver

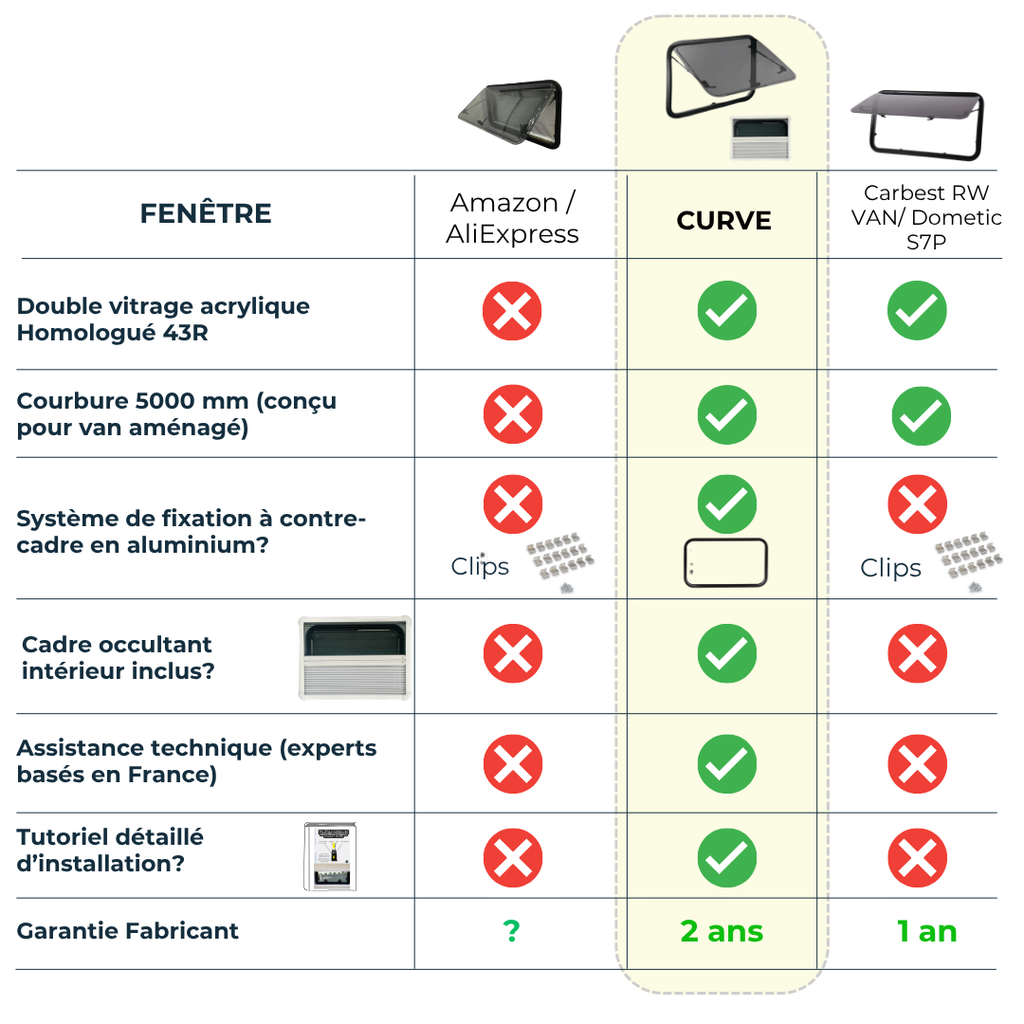

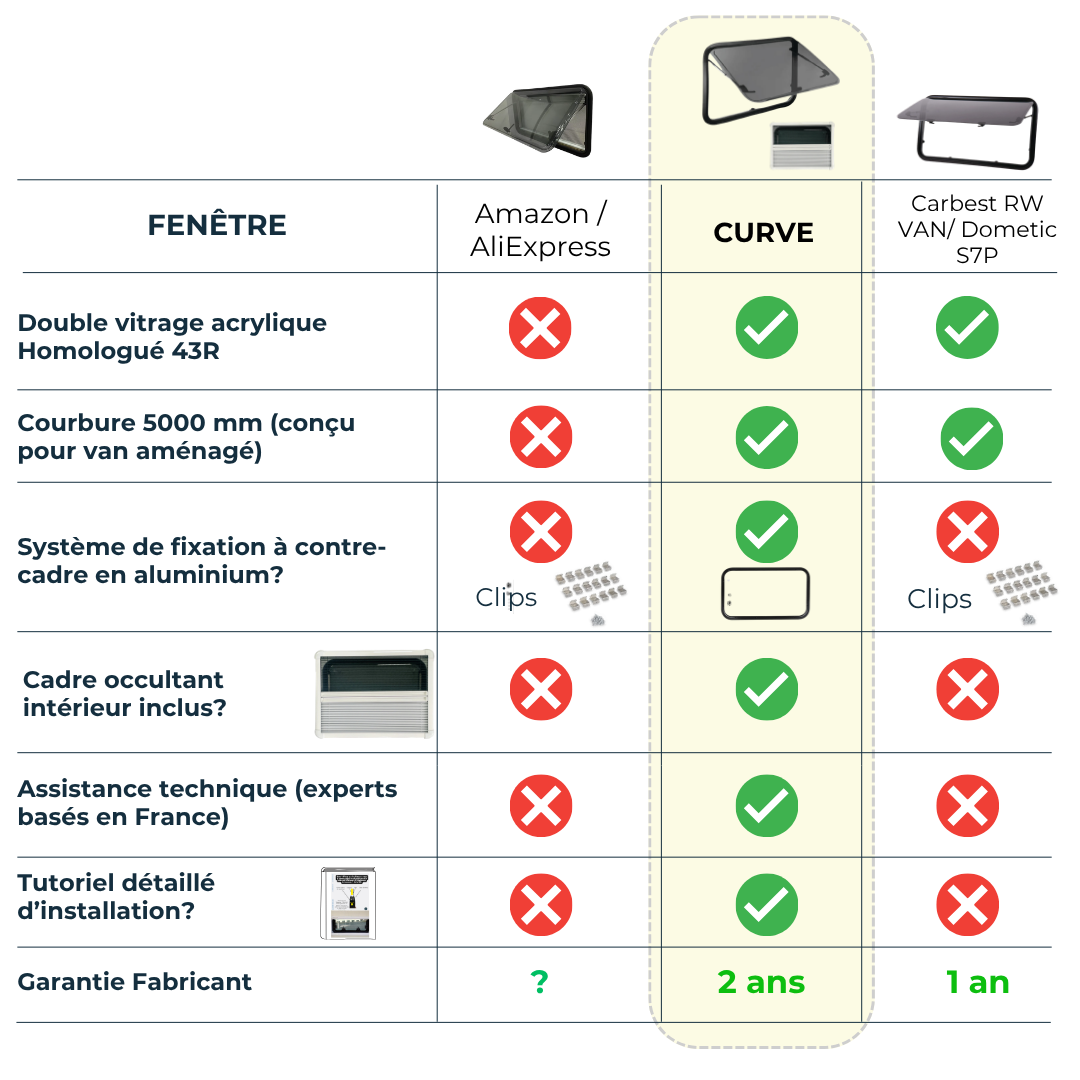

Advantages of the CURVE window

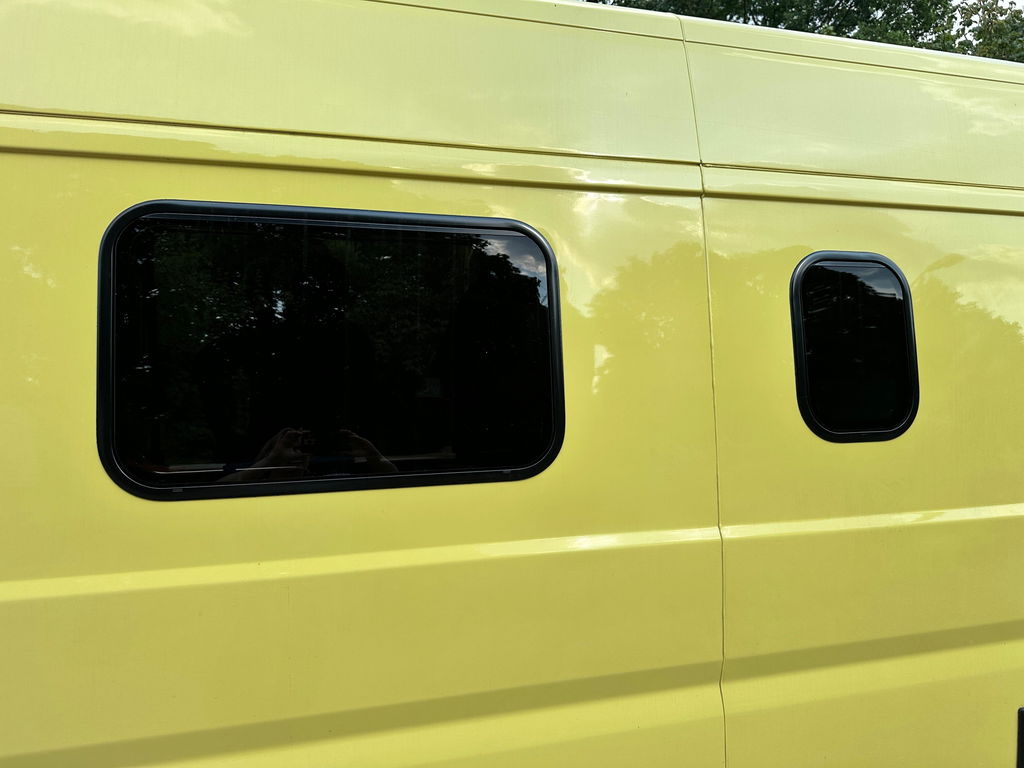

• Perfect integration with the bodywork: 5000 mm curvature radius calibrated for all panelled vans — premium finish like a factory-converted vehicle.
• Aluminum fixing frame system: stronger structure.
• Complete product delivery: with screws, inner fixing frame, and finishing frame with blackout blind and fly screen - plus step-by-step installation tutorial.
• Optimal thermal comfort: dark tinted acrylic double glazing for insulation and privacy.
• Spare parts availability: 5 years.

⁉️ Frequently asked questions

Q: Is it certified? A: Yes, ECE 43-R — installation allowed without manufacturer approval throughout Europe, the UK, and Switzerland, compliant with VASP.

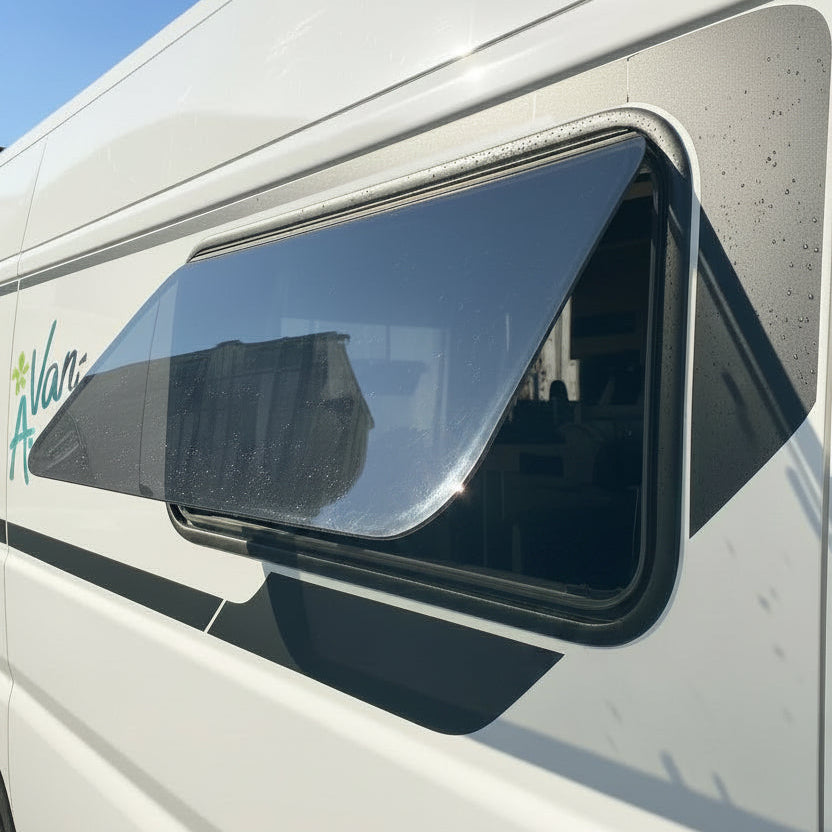

Q: Sliding window or push window, which to choose? A: The push window is recommended by default: opening up to 70°, usable even in rain, better sealing. Choose a sliding window only where a push window might be damaged — for example on the right rear panel of a van, where the sliding door opening could damage it.

Q: I am replacing an old window, but no CURVE model matches the exact dimensions — what to do? A: This is very common. The simple solution: choose a CURVE model whose width AND height are at least equal to your current window. You will enlarge the existing cut-out to fit the new model — the method is explained step-by-step in the provided installation tutorial.
